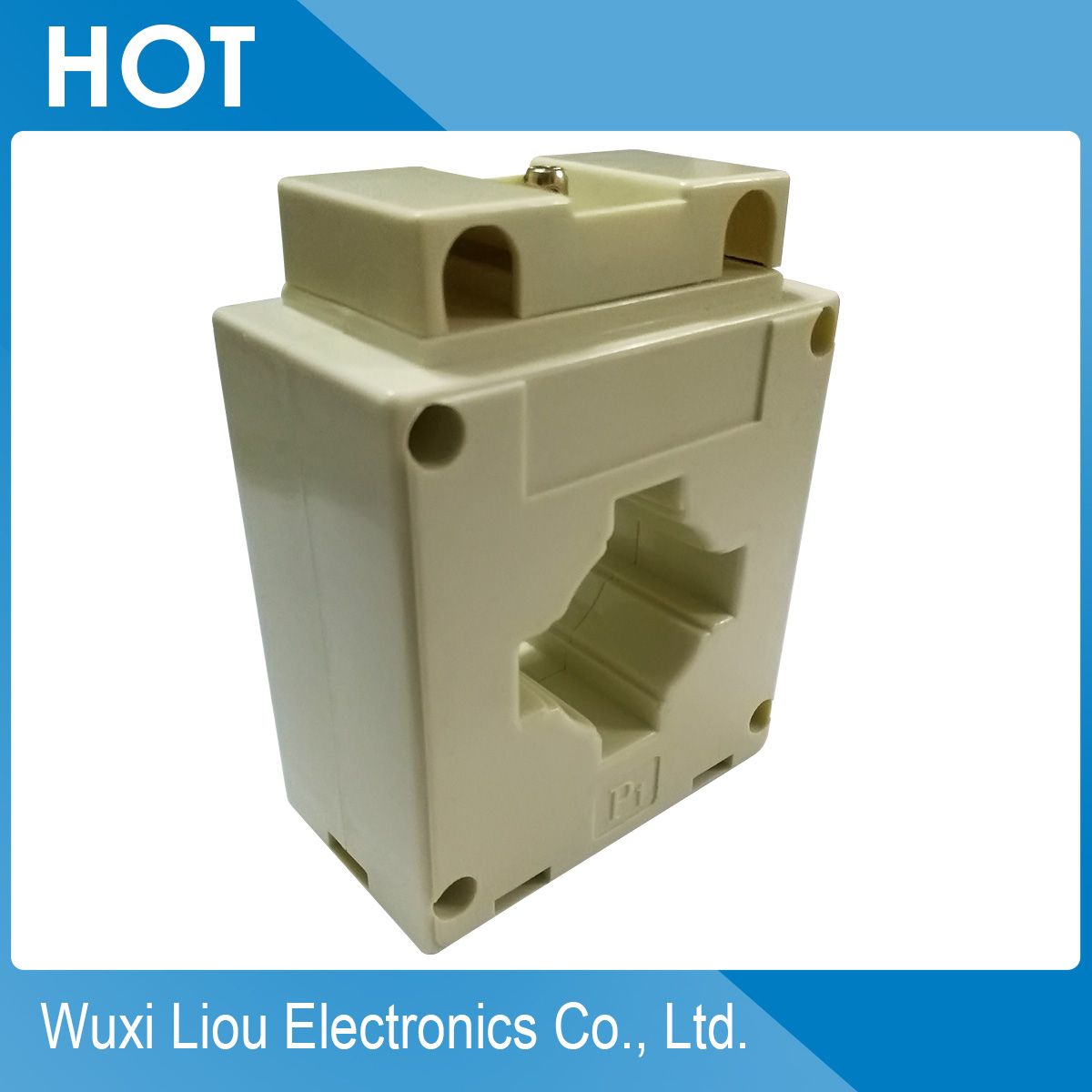

50: 5 High Acuracy Center Through Current Transformer

Name: 50: 5 High Acuracy Center Through Current Transformer
Brand: all-electronics-online.com
SKU: 821225625
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	US $ 5-10.5/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Center through current transformers

Description
The range of LiOu Instruments LO-MC xxI current transformers offers wide system current ratings, apertures, bus bar and case sizes to suit every application. Manufactured to meet EN60044 the range benefits include ratio rating from 50A to 3000A, accuracy up to Class 0.2, integral terminal cover for safety and multiple mounting options.

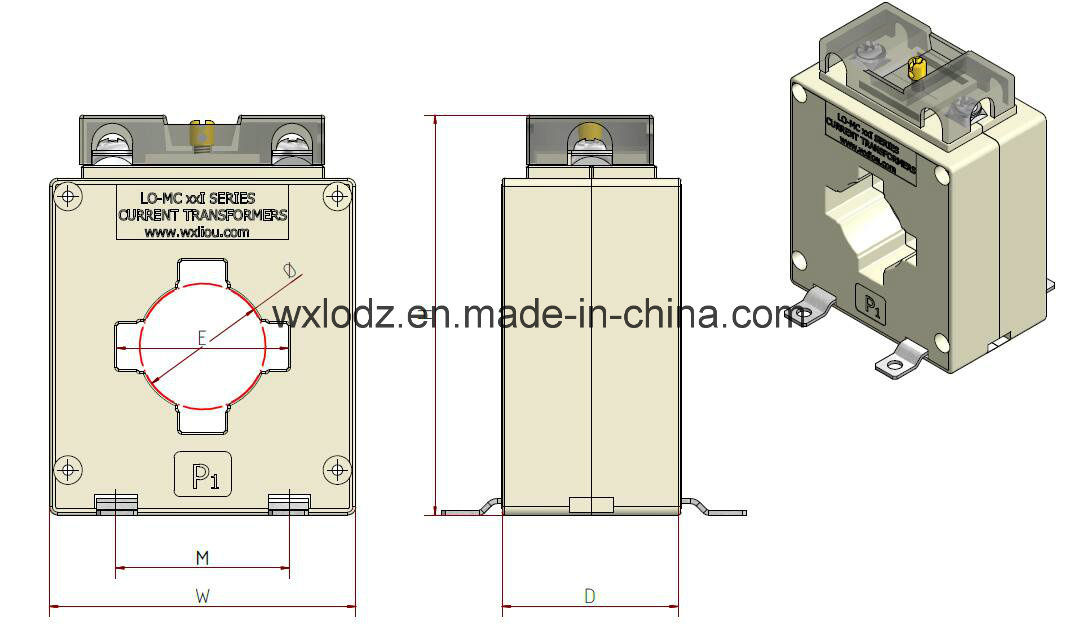

Mechanical Specifications:

P/N	Outer Dimensions			Center Hole dimensions		Layout dimensions
P/N	W	H	D	E	Φ	M	L
LO-MC30I	60	79	32	30.5	23	29	65
LO-MC30I-I	60	79	45	30.5	23	28	65
LO-MC40I	75	97	45	41.5	30.5	42	65
LO-MC50I	83	83	41	51	36	50	65
LO-MC60I	100	128	45	61	46	42	65
LO-MC80I	117	118	45	81.5	51	60	65
LO-MC100I	147	162	45	101.5	62	80	65

Application
• Data logging       •   Recording   •   Power monitoring
•   Energy management •   Alternative energy monitoring
•   Cost allocation

Features
• Frequency Range: 50-60Hz
• Over Load withstand: 1.2 x rated current continuously
• AC isolation resistance: 3KV for 60s
• Rigid housing case with UL® 94V-0 polycarbonate
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
                    ConformIEC60044-1
• Max. operation voltage: AC660V
• Thermal Insulation Class: Class B
• IP Protection Class: IP20B
• Humidity: Up to 95%RH (Non-condensing)

ELECTRIC SPECIFICAITON:

	LO-MCI CENTER THROUGH CURRENT TRANSFORMER
PART NUMBER		LO- MC30I		LO-MC30I-I		LO-MC40I		LO-MC60I		LO-MC80 I		LO-MC100 I
Bus bar Spec(mm)		30*10(1Pcs)		30*10(1Pcs)		40*10(1Pcs)		6010(1Pcs) 6010(2Pcs)		8010(1Pcs) 6010(2Pcs)		10010(1Pcs) 8010(2Pcs)
Bus bar Spec(mm)		30*10(1Pcs)		30*10(1Pcs)		40*10(1Pcs)		6010(1Pcs) 6010(2Pcs)		8010(1Pcs) 6010(2Pcs)		10010(1Pcs) 8010(2Pcs)
Accuracy Class		0.5	1	0.5	1	0.5	1	0.2	0.5	0.2	0.5	0.2	0.5
Current Ratio	Primary Turns	Rated Capacity(VA)
50 5	2	-	-	-	2.5	2.5	2.5	-	-	-	-	-	-
60 5	2	-	-	-	2.5	2.5	2.5	-	-	-	-	-	-
75 5	2	-	-	2.5	2.5	2.5	2.5	-	-	-	-	-	-
100 5	1	-	-	2.5	2.5	2.5	2.5	-	-	-	-	-	-
150 5	1	-	-	2.5	-		2.5	-	-	-	-	-	-
200 5	1	2.5	2.5	5	5	5	5	-	2.5	-	-	-	-
250 5	1	2.5	2.5	5	5	5	5	-	2.5	-	-	-	-
300 5	1	5		5		5		-	5	-	5	-	-
400 5	1	5		5		5		-	5	-	5	-	-
500 5	1					10		-	10	-	10	-	-
600 5	1					10		-	10	-	10	-	10
800 5	1							-	10	-	10	-	10
1000 5	1							10	15	10	15	10	10
1500 5	1							15	20	15	20	15	15
2000 5	1							20	20	20	20	20	20
2500 5	1									40	40	40	40
3000 5	1									40	40	40	40

50 1	1	-	0.1	0.1	0.2	-	0.2		-	-	-	-	-
75 1	1	-	0.1	0.2	0.2	-	0.2		-	-	-	-	-
100 1	1	-	0.2	0.4		-	0.4		-	-	-	-	-
150 1	1	0.4	0.2	2.5		2.5			1	-	-	-	-
200 1	1	2.5		2.5		2.5			1	-	-	-	-
250 1	1	2.5		5		2.5			2.5	-	-	-	-
300 1	1	2.5		5		5			2.5	-		-	-
400 1	1					5			5	-	5	-	-
500 1	1					5			5	-	5	-	-
600 1	1					10			5	-	5	-	-
750 1	1					10		5	10	-	5	-	-
800 1	1					10		5	10	-	10	-	10
1000 1	1							5	10	10	10	10	10
1500 1	1							10	20	10	15	10	15
2000 1	1							15	20	15	20	15	20
2500 1	1									15	20	15	20
3000 1	1									15	20	15	20

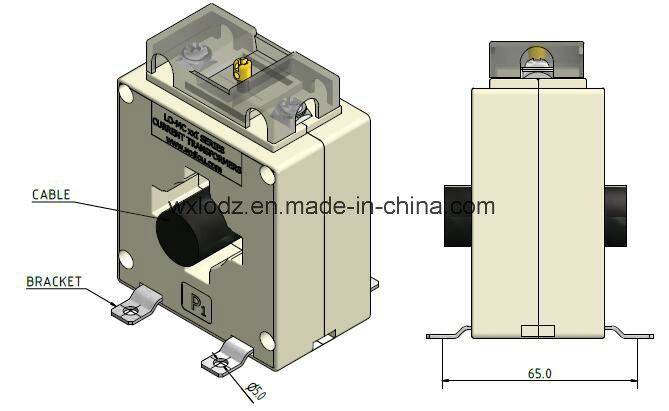

INSTALLATION:

Prod Model:	LO-MC30I
Safety Standard:	IEC60044-1
Phase:	Single
Frequency:	50-60Hz
Case Material:	PC
Flame Retardant:	UL94V-0
Packaging:	Carton
Production Process:	Case
Material:	Silicon Steel
Application:	Electricity
