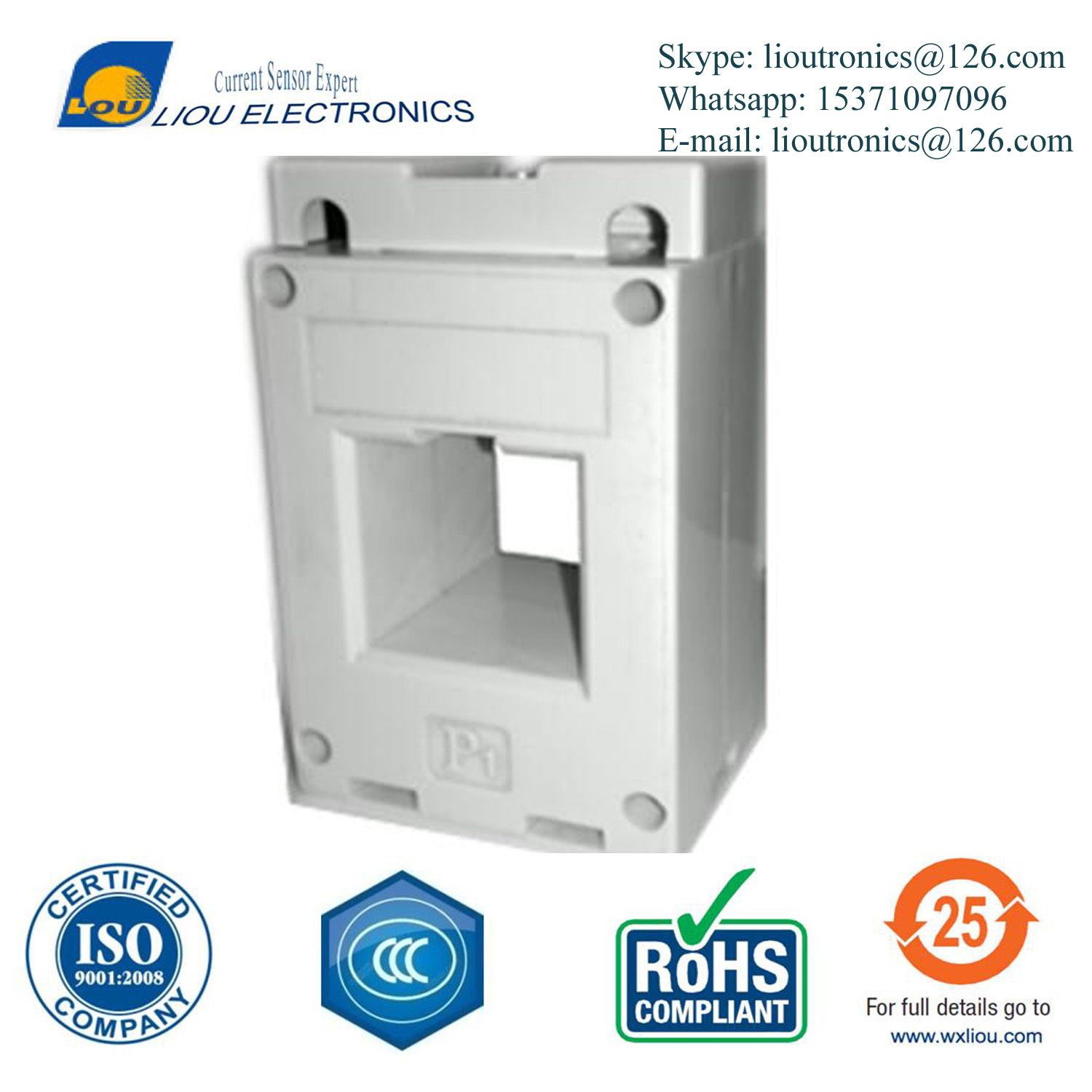

Center through current transformers

Description
The range of LiOu Instruments MC-II current transformers offers wide system current ratings, apertures, bus bar and case sizes to suit every application. Manufactured to meet EN60044 the range benefits include ratio rating from 100A to 6000A, accuracy up to Class 0.5, integral terminal cover for safety and multiple mounting options.

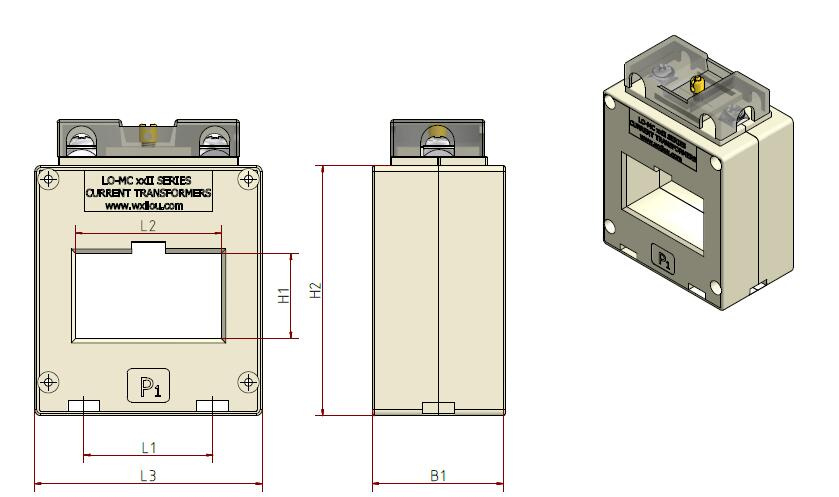

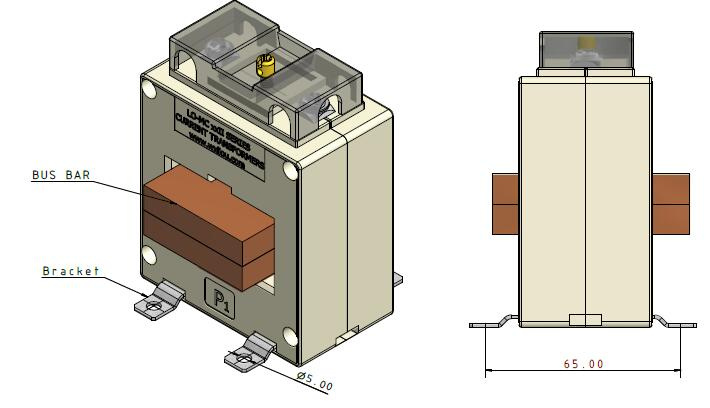

Mechanical Specifications:

P/N		DIMENSIONS
P/N	L1	L2	L3	H1	H2	B1
LO-MC40II	45	42	75	31	88	45
LO-MC50II	55	52	87	31	90	46
LO-MC60II	42	62	99	31	95	46
LO-MC80II	60	82	118	32	103	45
LO-MC100II	75	102	141	33	107	49
LO-MC120II	54	122	167	52	138	48
LO-MC140II	54	142	187	35	116	48
LO-MC160II	200	172	244	108	199	59
LO-MC180II	185	182	228	35	100	48

Application
• Data logging       •   Recording   •   Power monitoring
•   Energy management •   Alternative energy monitoring
•   Cost allocation

Features
• Frequency Range: 50-60Hz
• Over Load withstand: 1.2 x rated current continuously
• AC isolation resistance: 3KV for 60s
• Rigid housing case with UL® 94V-0 polycarbonate
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
                    ConformIEC60044-1
• Max. operation voltage: AC660V
• Thermal Insulation Class: Class B
• IP Protection Class: IP20B
• Humidity: Up to 95%RH (Non-condensing)

ELECTRIC SPECIFICAITON:

PART NUMBER		LO-MC40II		LO-MC 50II		LO-MC60II		LO-MC 80II		LO-MC100II		LO-MC120II
Bus bar Spec(mm)		40*10 1-2Pcs		50*10 1-2Pcs		60*10 1-2Pcs		80*10 1-2Pcs		100*10 1-2Pcs		120*10 1-3Pcs
Bus bar Spec(mm)		40*10 1-2Pcs		50*10 1-2Pcs		60*10 1-2Pcs		80*10 1-2Pcs		100*10 1-2Pcs		120*10 1-3Pcs
Accuracy Class		0.5	1	0.5	1	0.5	1	0.2	0.5	0.2	0.5	0.2	0.5
Current Ratio	Primary Turns	Rated Capacity(VA)
100 5	1	-	2.5	2.5	2.5	-	-	-	-	-	-	-	-
150 5	1	2.5	2.5	2.5	2.5	-	2.5	-	-	-	-	-	-
200 5	1	5	5	2.5	5	2.5	5	-	-	-	-	-	-
250 5	1	5	5	2.5	5	2.5	5	-	-	-	-	-	-
300 5	1	5	-	5	-	5	-	-	-	-	-	-	-
400 5	1	10	10	10	-	10	-	-	5	-	-	-	-
500 5	1	10	-	10	-	10	-	-	10	-	-	-	-
600 5	1	10	-	10	-	10	-	-	10	-	10	-	-
800 5	1	10	-	10	-	10	-	-	10	-	10	-	10
1000 5	1			10		10		-	10	-	10	-	10
1200/5	1					15		10	15	10	15	15	15
1500 5	1					20		10	20	10	20	15	20
2000 5	1					20		20	20	20	20	20	20
2500 5	1							20	20	20	40	20	40
3000 5	1									20	40	20	40
4000 5	1									40	40	40	40
5000 5	1									40	40	40	40
6000 5	1											40	40

50 1	1	0.1	0.2	-		-			-	-	-	-	-
60 1	1	0.1	0.2	-		-			-	-	-	-	-
75 1	1	0.2	1	0.2		0.2			-	-	-	-	-
100 1	1	0.4	2.5	0.2		0.2			-	-	-	-	-
150 1	1	2.5	2.5	0.4		0.4			-	-	-	-	-
200 1	1	2.5		2.5		2.5			-	-	-	-	-
300 1	1	5		5		5			5	-	5	-	5
400 1	1	5		5		5			5	-	5	-	5
500 1	1	10		10		10			10	-	10	-	10
600 1	1	10		10		10			10	-	10	-	10
800 1	1	10		10		10			10	-	10	-	10
1000 1	1			10		10			15	-	15	-	15
1500 1	1					15			15	10	15	10	15
2000 1	1								20	15	20	15	20
3000 1	1									20	40	20	40
4000 1	1											20	40
5000 1	1											20	40

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-20ºC to 65ºC
Storage temperature range	-20ºC to 85ºC
