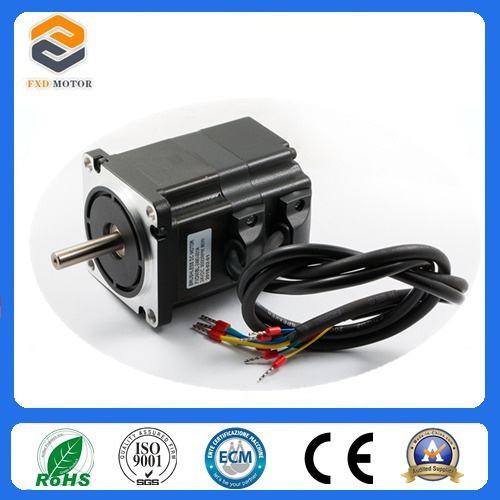

60 BLDC Motor with Hall Sensor

Name: 60 BLDC Motor with Hall Sensor
Brand: all-electronics-online.com
SKU: 822055365
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 36.1-38.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product descripion
60mm size(NEMA 24) square brushless dc motor is used very efficiency on different electromechanical device.Our FXD60BL Series bldc motor have lots of advantages as below:
1.Nema 24 Brushless dc motor
2.Model Number: Fxd60bl-001
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape: Square
6.Motor face: 60*60mm(2.36inch)
7.Speed:0-10000 rpm adjusted
8.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, audio equipment bldc motor, textile machinery brushless motor. Cnc brushless dc motor.
Gemeral info.

Model No: FXD60BL	Type: Brushless dc motor
Widing type: Star/Delta	Hall Effect angle: 120 degree electric angle
Nuber of the phase: 3-Phase	Shaft runout: 0.03mm
Radial play: 0.03mm/50g	End play: 0.03mm/50g
Max radial force: 35N/20mm	Max axial force: 30N
Insulation class: Class B	Ip class: Ip40
Dielectric Strength: 1500VDC for one minite	Insulation resistance: 100MΩmin 500VDC

Electrical specification

Model	No. ofPhase	Rated voltage	Rated speed	Rated torque	Rated power	Mass	Body length
Model	Phase	VDC	rpm	N.m	w	Kg	mm
FXD60BL-001	3	48	4000	0.238	100	0.8	80
FXD60BL-002	3	48	4000	0.358	150	1.2	100
FXD60BL-003	3	48	3000	0.796	250	1.6	120
FXD60BL-004	3	48	3000	0.955	300	2.0	140

Note: If you want different specification,we can product brushless dc motor as your special requirements.

Prod Model:	FXD60BLDC SERIES
Speed Of The Motor:	1-10000 Rpm
Power Of The Motor:	1-750 Watts
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brushless
Type:	Brushless DC Motor
Certification:	Ce, RoHS
Brand:	Fxd Motors

Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.

Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.

The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.

We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.

The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.

Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.

As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.

Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
