7/16 DIN Male Plug Clamp Connector for LMR400 Cable
| Price: |
US $ 2.12-2.73/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
TYPE 7/16(L29) is one kind of thread coupling RF coaxial connector. Characteristic impedance is 50ohm. The characteristic of connector is in big power, low VSWR, less attenuation, low intermodulation, excellent nature of airtight. They are used in connection with feeder cables in broadcast, Television,ground launch system, monitoring of radar, microwave communication fields etc. Our company manufacture produces many kinds of jumper lines, which can reduce your cost on cable.| 7/16 Din male clamp connector for LMR400 cable |
| Model No. | 7/16-J400 |
| Interface | IEC 60169-4;DIN-47223;CECC-22190 |
| Electrical | |
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-7.5GHz |
| VSWR | ≤1.25@DC-3000MHz |
| Insertion Loss | ≤0.15dB@2200MHz |
| Dielectric Withstanding Voltage | ≥4000V RMS,50Hz,at sea level |
| Working Voltage | 2700V RMS,50Hz,at sea level |
| RF Power | 3KW(max) |
| Dielectric Resistance | ≥10000MΩ |
| Contact Resistance | Center Contact ≤0.4mΩ | Outer Contact ≤1 mΩ |
| Durability | Mating cycles ≥500 |
| Material and Plating | | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | - |
| Center Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | - |
| Washer | Brass | Ag |
| Cable Clamp | Brass | Ag |
| Environmental | | |
| Operating Temperature | -40 ºC-85 ºC |
| Weatherproof Rate | IP67 |
| RoHs (2002/95/EC) | Compliant by exemption |

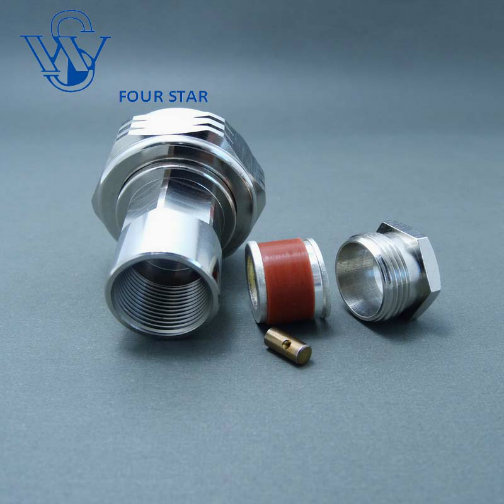

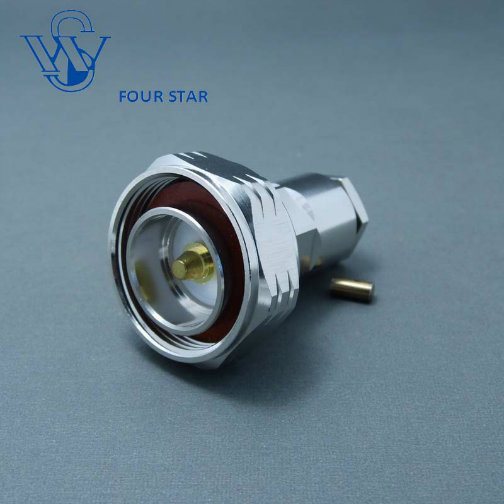

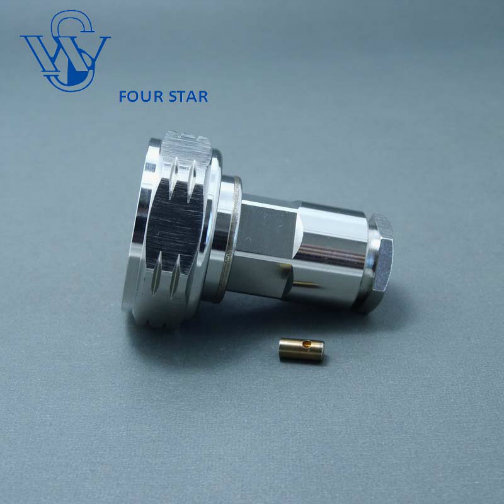

Picture show:
Company information:
Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components. Our products range:RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.RF coaxial Cable assembly(Jumper Cable)Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
| Prod Model: |
7/16-J400 |
| Frequency Range: |
DC-7.5GHz |
Founded in 1994, Four Star Communication Parts Co., Ltd (Originally named Four Star Electronics Co. Ltd) is No. 88 S338 Road Zhenjiang City Jiangsu Province China (220Km away from Shanghai). Four Star Communication is one of the excellent manufacturer dedicating to supply RF coaxial connectors, RF cable assembly, Microwave components and installation accessories of mobile base stations. Our products are widely used by Telecom Equipment manufacturer, Telecom operator and antenna manufacturer and are sold to Asia, North America, Middle East, Australia, south America.
Four Star Communication has 46 employees and 12000 square meters of manufacturing and office facility.
We are capable of producing over 5 million RF connectors, 1 million RF cable assemblies, and 0.2 millian microwave components(including surge arrestor, terminator, attenuator etc) annually.
We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products to customers.
Our products range focus on as follows:
1. RF coaxial connectors Series: SMA, SMB, BNC, TNC, N, 7/16 DIN, 1.0/2.3, 1.6/5.6, SMZ (BT43, HDC), UHF (PL259), MCX, MMCX, 4.3/10 Mini DIN, EIA flange etc.
2. RF coaxial cable Jumper (Cable assembly): RG Series coaxial cable Jumper; LMR Series coaxial cable Jumper; Corrugated foam coaxial cable Jumper; JS (FB) Series coaxial cable Jumper; 75ohm Series coaxial cable Jumper; Mini-coaxial cable Jumper etc.
3. Micro-wave Components: Dummy Load(Terminator); Attenuator; Surge Arrestor;
4. Other Communication Parts: Power Splitter, Directional Coupler; Grounding Kits; Cable Clamp.
We are able to offer competence of OEM manufacturing and high flexibility to customized demand with punctual delivery and perfect service. We sincerely Look forward to working with you and make better service and support in the future.
