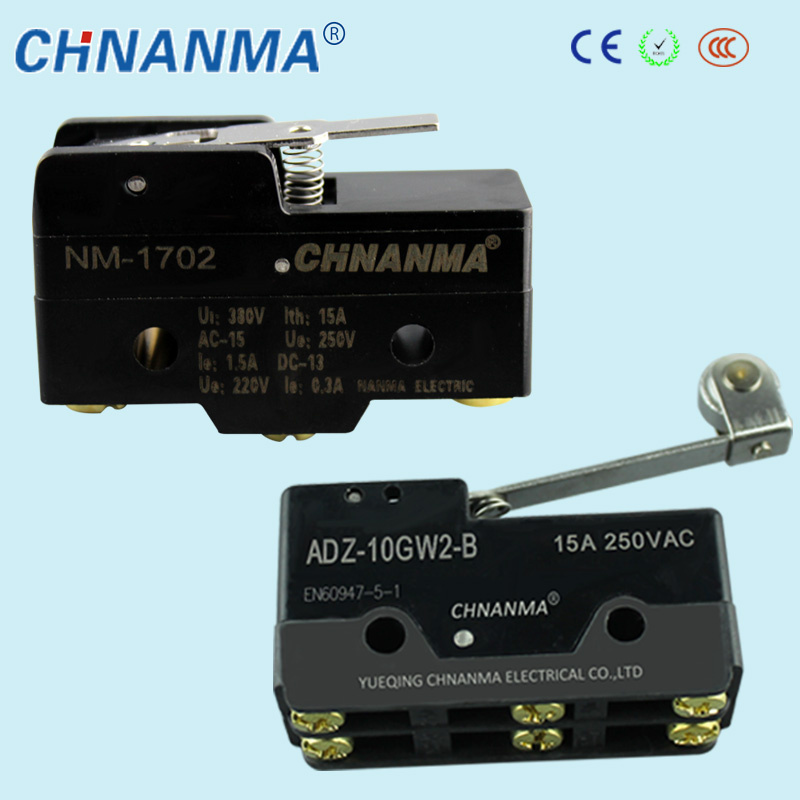

ABS Housing Pole Double Throw Electrical Micro Switch

Name: ABS Housing Pole Double Throw Electrical Micro Switch
Brand: all-electronics-online.com
SKU: 755563045
Availability: InStock
Rating: 4.6 (96 reviews)

Price:	US $ 0.5-0.54/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

1. Switch Feature:
Tip material: Silver tip
Contact material: Brass
Level material: stainless steel top roller plunger
Ambient operating temperature: 25°C to 80°C (with no icing)
Ambient operating humidity: 35% to 85%RH

2.Specification

Rated voltage	Nonelectrical carry				Electrical carry
	Resistive carry		bulb carry		Electrical carry		Moto caryy
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	10		2	1	6		3	1.5
250 VAC	10		1.5	0.7	4		2	1
8 VDC	10		3	1.5	6		5	2.5
14 VDC	10		3	1.5	6		5	2.5
30 VDC	10		3	1.5	4		3	1.5
125 VDC	0.5		0.5		0.05		0.05
250 VDC	0.25		0.25		0.03		0.03

Notice:
1.Electrical carry:power factor=0.4time constant under 7 msec.
2.The bulb carry current is 10 times as than in stable condition.motor carry current is 6 times as than in stable condition.

5.Why choose our switches?
1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

6.Production line

7.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

Q5:What's the delivery term?
Answer:Both EXW and FOB Ningbo are acceptable.

Q6:What's the payment term?
We could start our discussion about payment term from second order on.

Q7:What's the shipment way?
Answer:Express:DHL, UPS, FedEx, TNT and SF express.
Forwarder:Air shipment or sea shipment.

6.More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

Prod Model:	ADZ-10GW2-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	22 to 58g
Max. Voltage:	AC250
IP:	20
Operating Temperature:	25 °c to +80 °c
Max. Current:	15
Pressing Type:	Spring Roller
Protection:	Dust-Proof
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Breaking Capacity:	DC
Brand:	Chnanma

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
