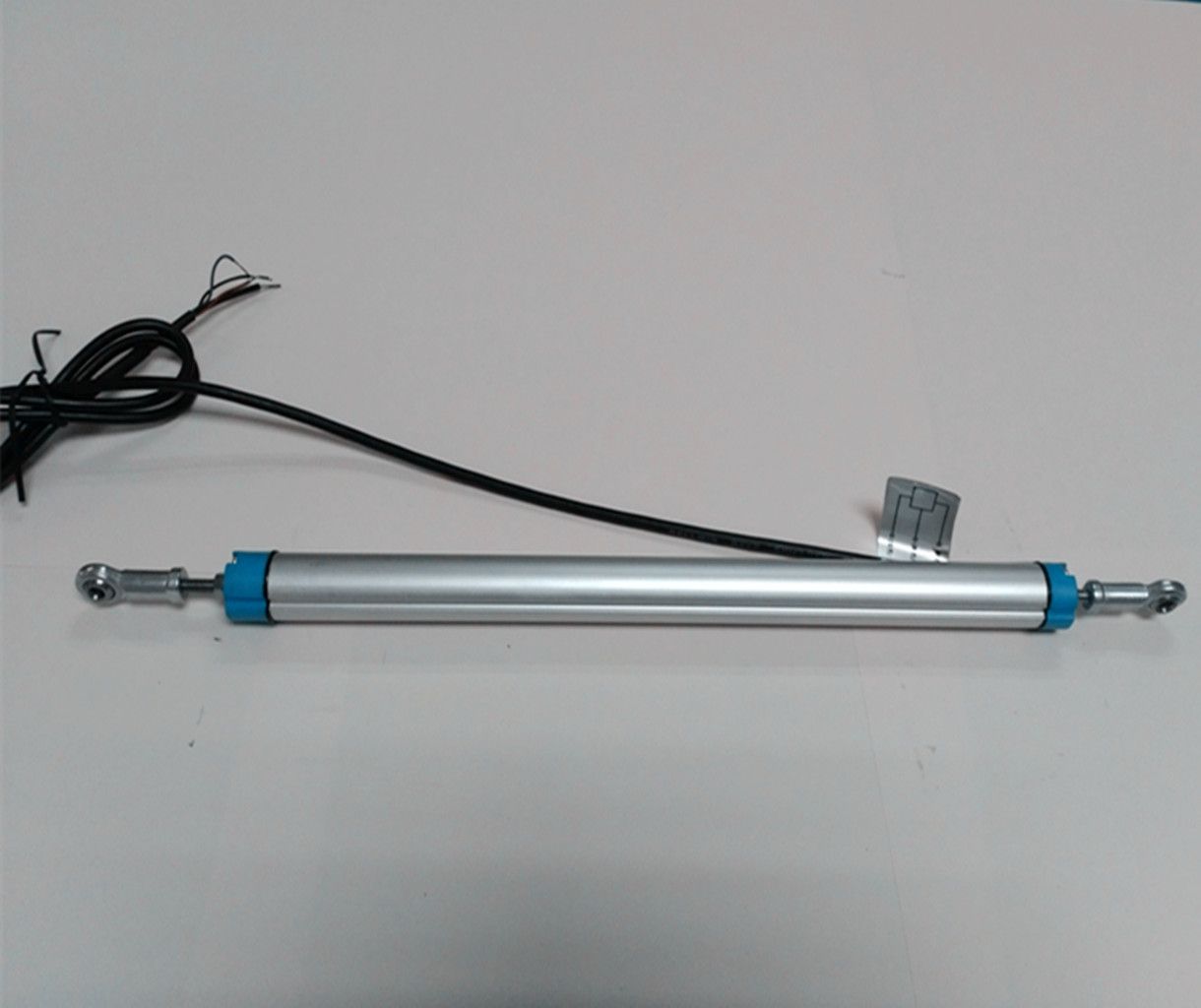

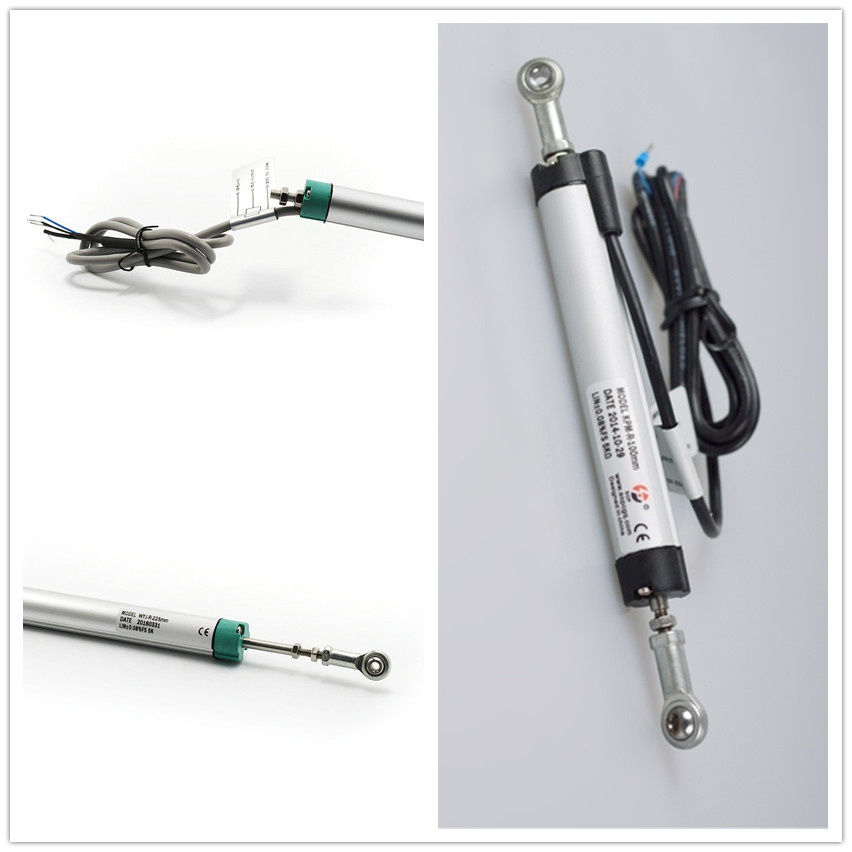

Addy Current Angular Displacement Positon Sensor for Shoe Machinery

KPM Prarameter Table:

Model																																	Unit
Working Stroke	25	50			75			100			125			150			175			200			225			250			275			300	mm
Electric Stroke	25.5	50.5			75.5			101			126			151			176.5			201.5			226.5			252			277			302	mm
Resistance value	5																																KΩ
Resistance Tolerance	5																																±%
Degree of Linearity	0.3		0.25			0.1			0.08			0.08			0.08			0.05			0.05			0.05			0.05			0.05		0.05	±%
Repeatability	0.01																																mm
Working Current	≤ 1																																μA
Max Current	10																																mA
Max Voltage	42																																V
Input Voltage and Output Voltage temperature Rate	5																																ppm/K
(500VDC,1bar,2s) Insulation Resistance	≥ 10																																MΩ
(50Hz,2s,1bar,500DVC) Insulation Intension	≤ 100																																μA
Length	77			101			121			152			177			202			227			252			277			302			327	352	±2mm
Mechanical Stroke	30.5			55.5			80.5			106			131			156			181.5			206.5			231.5			257			282.5	307	±2mm
Movement	± 12.5° Angular deviation
Horizontal Direction	≤0.4																																N
Vertical Direction	≤1.1																																N
Temperature Range	-40~120																																ºC
Anti-vibration	Frequency 5~2000 Distance Amax=0.75 weight a max =20																																Hz/mm/g
Shock Resistance	weight/time																																g/ms
Use Life	>20×106
Working Speed	5																																m/s(max)
Acceleration	200(20g)																																m/s(max)
Protect Grate	MAX IP65 DIN405000/IEC529

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

Product feature:
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is IP65
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage:
*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Prod Model:	KPM-275mm
Product Name:	Angular Displacement Positon Sensor
Max Voltage:	42V
Working Speed:	5m/S(Max)
For:	Humid, Oil, Dusty
Material:	Aluminum Alloy
