| Prod Model: |
S-150-12 |
| Output Current: |
12.5A |
| Type: |
Constant Voltage |
| Test: |
100% Full Load Burn-in Test |
| Material: |
Aluminum Case |
| Output Frenquency: |
47~63Hz |
| Weight: |
0.8kg |
| MOQ: |
1-5PCS |
| Certificate: |
Ce RoHS |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
PSE |
| Input Voltage: |
110V/220V |
| Brand: |
Weho |

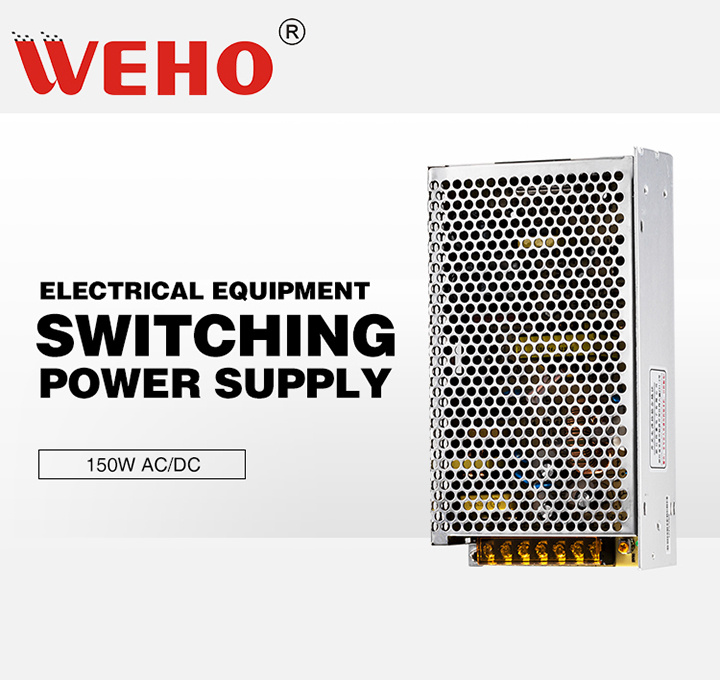

Product Description

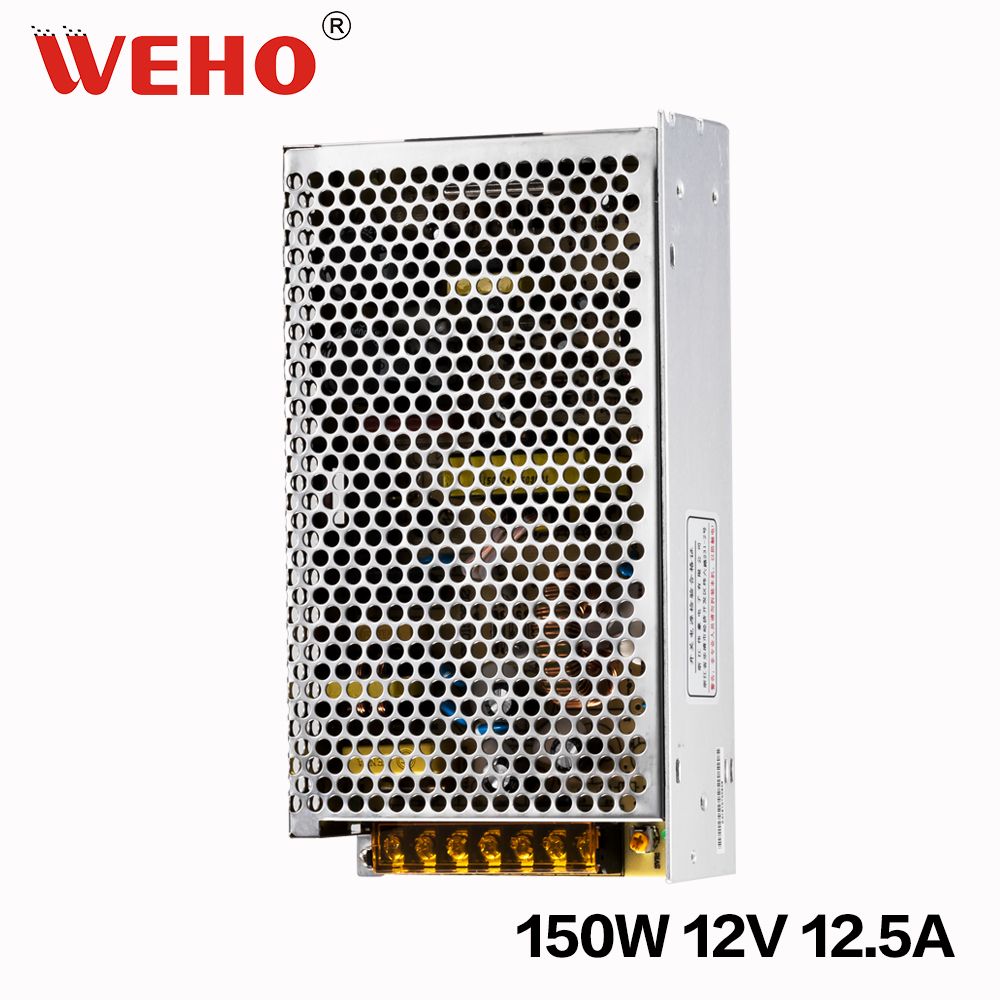

150W 12V DC Switching Power SupplyFeatures:1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Specifications:
| Specification | S-150-5 | S-150-7.5 | S-150-9 | S-150-12 | S-150-13.5 | S-150-15 | S-150-24 | S-150-27 | S-150-48 |
| DC output voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output voltage error (Note2) | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
| Output current rage | 0-30A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-10A | 0-6.5A | 0-5.6A | 0-3.2A |
| Wave and noise(Note3) | 150mVp-p | 150mVp-p | 180mV | 180mV | 180mV | 180mV | 240mV | 240mV | 240mV |
| Inlet stability(Note4) | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| Load stability(Note5) | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
| DC output power | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
| Efficiency | 78% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
| Adjustable range for DC voltage | 4.5-5.5V | 6-8.3V | 8-10.4V | 10.6-13.2V | 12-15V | 13.5-16.5V | 21-28V | 24-30V | 43-53V |
| AC input voltage range | 85 to132VAC/176 to264VAC SELECTED BY JUMPER OR SWTCH 47 to63Hz;255 to370VDC |
| Input current | 3.2A /115V 1.6A/230V |
| AC impulse current | Cold-start current 35A/115V 60A/230V |
| Leakage current | <3.5mA/240VAC |
| Overload protection | 105 to150 Type PULSING HICCUP SHUTDOWN Reset:auto recovery |
| Over-voltage protection | 115% to135% |
| High-temperature protection | .. |
| Temperature coefficient | ±0.03% centidegree (0 to50 centidegree ) |
| Setup rise hold up time | 100ms,50ms,20ms |
| Vibration | 10 to500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Withstand voltage | Input and output interval 3KVAC , Input and enclosure 1.5KVAC , Output and enclosure 0.5KVAC |
| Isolation resistance | Input and output interval , Input and enclosure, Output and enclosure 500VAC/100M Ohms |
| Working temperature and humidity | -10 centidegree to+60 centidegree , 20% to90%RH |
| Store temperature and humidity | -20 centidegree to+85 centidegree, 10% to95RH |
| Overall dimension | 199*110*50mm |
| Weight | 0.8Kgs |
| Safety standards | Meet UL1012,TUV EN60950 |
| EMC standards | Meet CLSPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification |

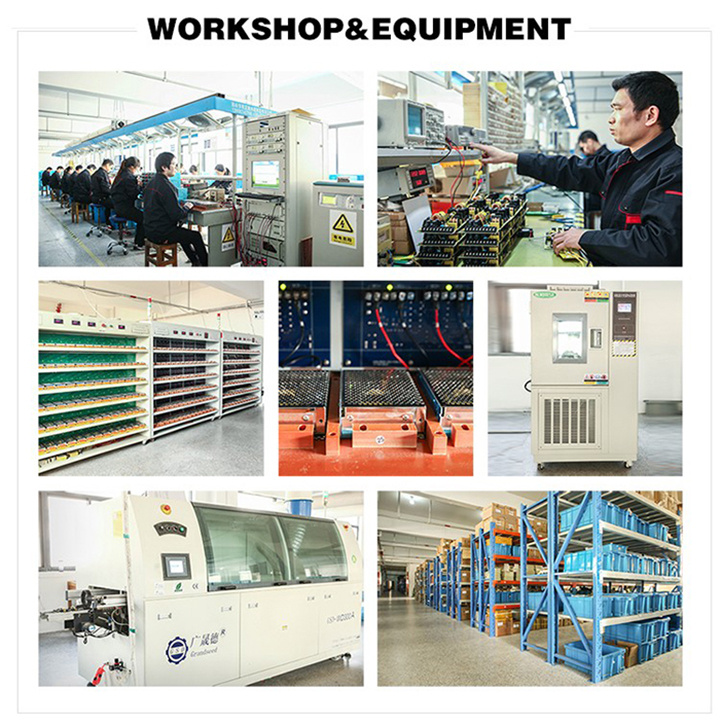

Our Workshop:
Packaging:
FAQ:
