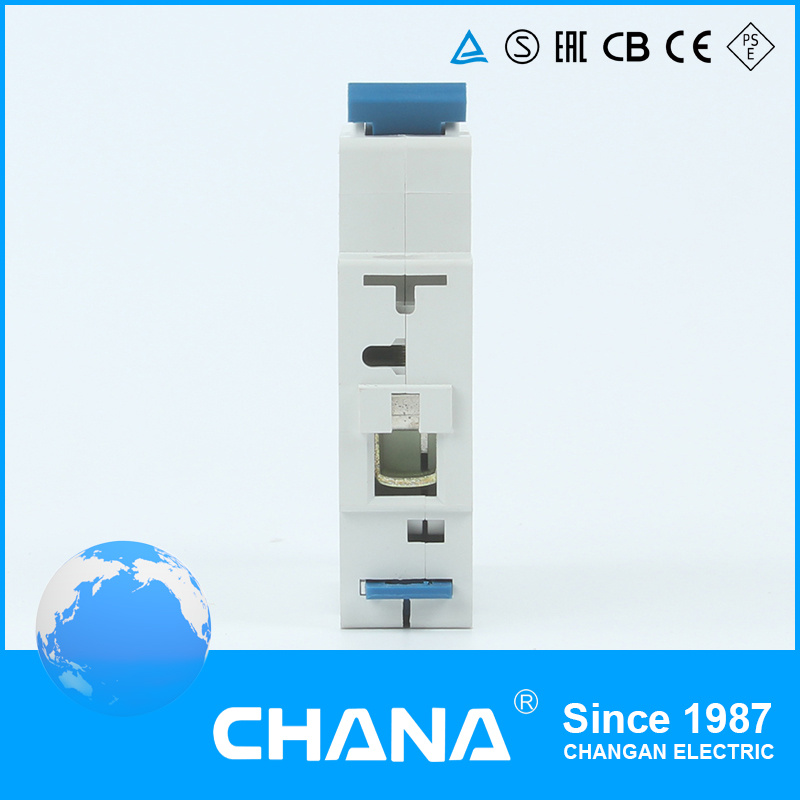

C45 Type Dz47-63 MCB with Ce and CB Certificates

Name: C45 Type Dz47-63 MCB with Ce and CB Certificates
Brand: all-electronics-online.com
SKU: 744855525
Availability: InStock
Rating: 4.5 (59 reviews)

Price:	US $ 0.6-0.7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	540/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	PA
Handle Color:	Blue
Number Of Pole:	2
Amperes:	63A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	Eac,RoHS
Poles Number:	1p,2p,3p,4p

Product Description

DZ47-63 MINI CIRCUIT BREAKER

Electrical Features
Rated current In: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated voltage Ue: 240/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 6000/10000A
Energy limiting class: 3
Rated impulse withstand voltage(1.2/50) Uimp: 4000V
Dielectric test voltage at ind. Freq. For 1 min: 2kV
Pollution degree: 2
Thermo-magnetic release characteristic: B, C, D
Mechanical Features
Electrical life: 8, 000
Mechanical life: 20, 000
Contact position indicator: Yes
Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C..
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N*m 22 In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes

Main parameter

Rate voltage	220V	Electrical life	2000
Rate current	6-63A	Mechnical life	10000

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
