| Prod Model: |
CA30-32 |
| Rated Voltage: |
AC230/400V |
| Rated Frequency: |
50Hz |
| Rated Current: |
25A |
| Rated Sensitivity: |
0.03A,0.1A,0.3A |
| Poles: |
1p+N |
| Pollution Degree: |
2 |
| Export Market: |
Global |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
2 |
| Certification: |
CCC |
Product Description

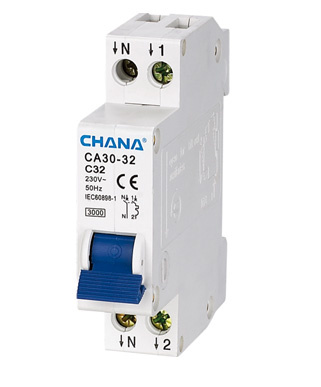

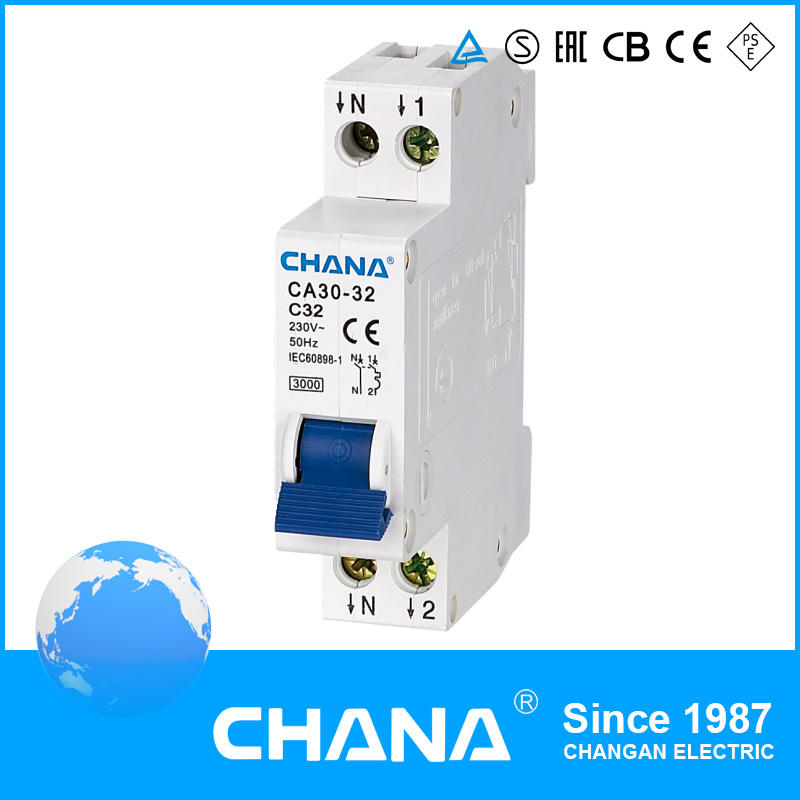

Electrical Features of DPN Circuit Breaker.
Rated current In :1,2,3,4,6,10,16,20,25,32A Poles:1P+N Rated voltage Ue:240/415V Insulation voltage Ui :500V Rated frequency:50/60Hz Rated breaking capacity :3000A Energy limiting class:3 Rated impulse withstand voltage(1.2/50) Uimp:4,000V Dielectric test voltage at ind. Freq. for 1 min:2kV Pollution degree of DPN:2 Thermo-magnetic release characteristic: B,CMechanical Features of the mini circuit breaker Electrical life:3,000 Mechanical life:6,000 Protection degree:IP20 Reference temperature for setting of thermal element:30? Ambient temperature (with daily average?35?): -5?...+40? Storage temperation: -25?...+70?Installation Terminal size top/bottom for cable: 10mm2 Terminal size top/bottom for busbar:10mm2 Tightening torque 1.2 N*m Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device Connection: From top and bottomCombination with accessories Auxiliary contact: Yes Shunt release: Yes Under voltage release: Yes Alarm contact: Yes| Items | Poles | Ampers | Voltage | Electrical Life | Mechanical life | Protection Degree | Breaking capacity |
| CA30-32 | 1P+N | 10 | 240/415V | 3000 | 6000 | 2 | 3000 |
| CA30-32 | 1P+N | 16 | 240/415V | 3000 | 6000 | 2 | 3000 |
| CA30-32 | 1P+N | 32 | 240/415V | 3000 | 6000 | 2 | 3000 |
Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Company View:
FAQ
Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
