Prod Model: |
Dual sim tracker MT210 |
Tracker: |
Dual SIM Card GPS Tracker |
Warranty: |
Two Years |
Free Tracking Platform: |
Yes |
Power Supply: |
+9V~36V/1.5A |
Backup Battery: |
650 mAh |
Frequency: |
GSM 850/900/1800/1900 MHz |
Power Consumption: |
65mA Standby Current |
Voice Monitoring: |
Microphone |
Acc On/off Detection: |
Support |
Remote Cut Off Engine: |
Support |
Product Description
Car truck motorcycle dual SIM GPS tracker with global google tracking system(*Free tracking platofrm lifetime *Two years warranty *Industrail grade dual SIM tracker *Two way location)Are you still worrying about the huge roaming expense when driving to another country for tracking to keep your car safe? Does the mobile signal quality for different brand of SIM card annoyed you?MT210 can help you get out of these problems, help you to keep tracking perfect, avoid trouble and save money!

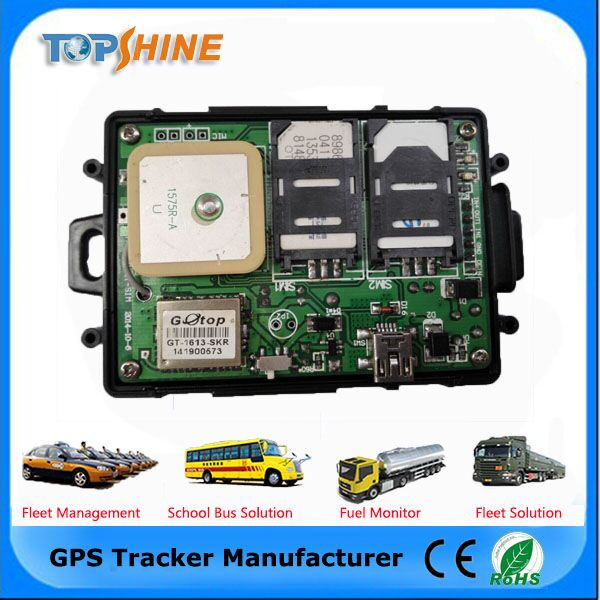

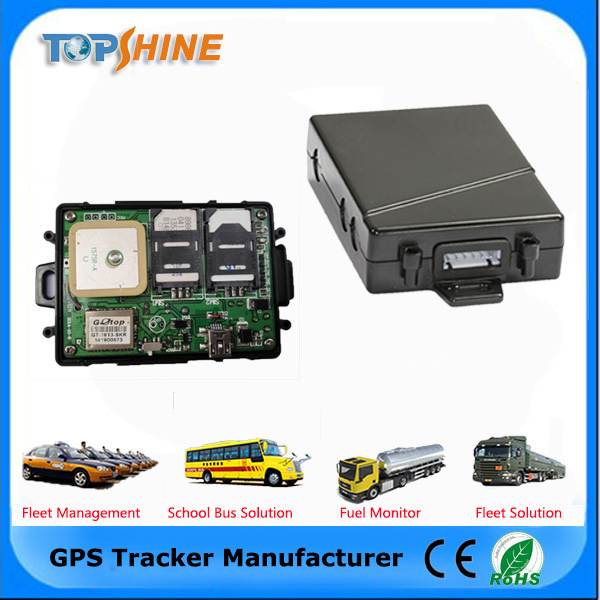

MT210 is a kind of mini waterproof GPS vehicle tracking product with dual SIM, which can be used for tracking and security of motorcycle and business car etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, therefore can satisfy tracking and security demands for all kinds of vehicles. Functions & Features:1. Real time tracking by SMS/GPRS (Web Platform)
2. Automatically switch to target network when in a foreign country (with their SIM card)
3. Intelligent quick search of best network when in different area
4. Cut off engine by SMS (Two Mode: Immediate Mode or Safe Mode)
5. Check real time position via SMS/Call
6. Engine ON/OFF detection
7. Built-in backup 650 mAh battery
8. Get Google Map link of current position via SMS, show your location on map via mobile phone
9. Mileage calculation with longitude and latitude via SMS; check Mileage (Odometer) on Web Platform
10. Built-in motion sensor for power saving & GPRS data saving (sleep mode)
11. Over speed alert, Geo-fence alert, Power failure/low power alert and SOS alert
12. Wiretapping/remote listening
13. Authorized phone numbers setting for alarm notifications
14. Accident alarm (need crash sensor support) (optional)
15. Fuel consumption monitoring (Optional)
16. Temperature monitoring (support multi temperature sensor) (Optional)
17. Car alarm function (Optional)Application:1. Convert Vehicle Tracking
2. Real Time Positioning
3. Perfect for border transport fleet managers and Small Business Owners
4. Ideal for Families with Teen Drivers
5. Anti-theft Car Alarm
6. Vehicle Management
7. Fleet Management

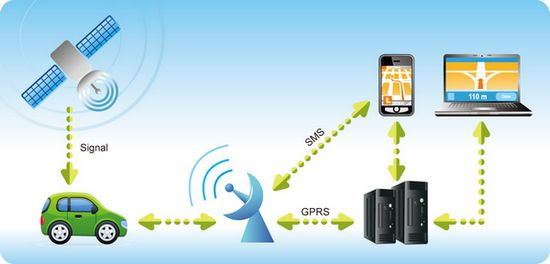

8. Motorcycle ManagementHow is work: Complete Set: Standard Accessories |
Main unit | Relay |
Wiring | SOS button |
Optional Accessories |
Ultrasonic fuel sensor | Cuttable fuel sensor |
Crash sensor | USB cable |
Speaker | Microphone |
Specifications: Dimension | 80×58×22 mm | Weight | 90g |
Input voltage | DC 9V~36V/1.5A | Humidity | 5%-95% non-condensing |
Power consumption | 65mA standby current | Operating temperature | -40°C~75°C |
Back-up battery | 650mAh/3.7V | Storage temperature | -45°C~90°C |
Sensor | Motion sensor | GPS sensitivity | -160dBm |
Positioning accuracy | 5m CEP | GPS Chip | U-blox 7 |
GSM frequency | GSM 850/900/1800/1900MHz | Battery work time | 33 hours in power-saving mode and 8 hours in normal mode (The specific circumstances should subject to the actual usage) |
I / O | 2 input, 1 output, 1 A/D input | | |

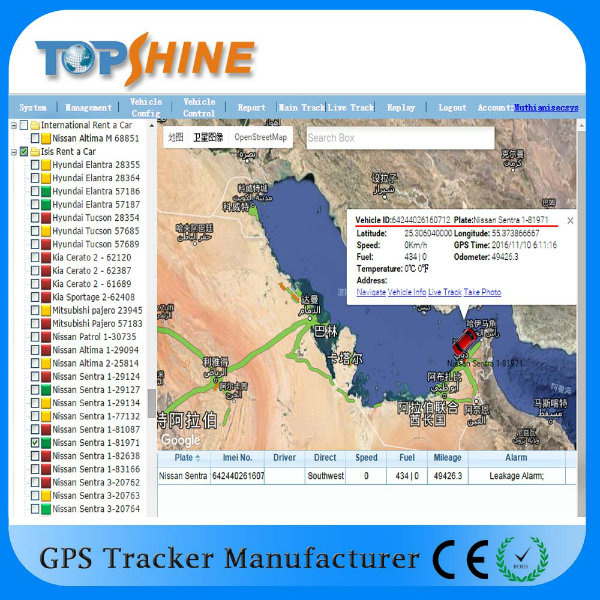

Topshine GPRS01 tracking platform:* Provide API
* More stable & easy expansion
* Flexible configuration menus and assign power for certain user
* Icon can show 8 direction
* Events reminder ( maintainance alert, expired alert, odometer alert etc )
* Cell phones scan the QR code to download APP
* Directly manage Nevigate, Live Track and take photos
* Show GEO-fence and POI in the main track
* Flashing icon to show alarm status
* Provide customer demand for customization
Welcome to log in our GPRS01 tracking platform:
web: www.track-car.com
Username: test1
Password: 123
Our services:- Any inquiries will be replied within 12 hours on workday
- Professional manuafacurer and wholesaler for 8 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idear
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- You can pay for the order via: T/T , Western Union and Paypal
Topshine Advanced Solutions
It is welcome to help you customize a pecial product with your company advantage and unique.
Just keep us posted with your new ideas, our high experienced engineers will try their best to help you achieve.

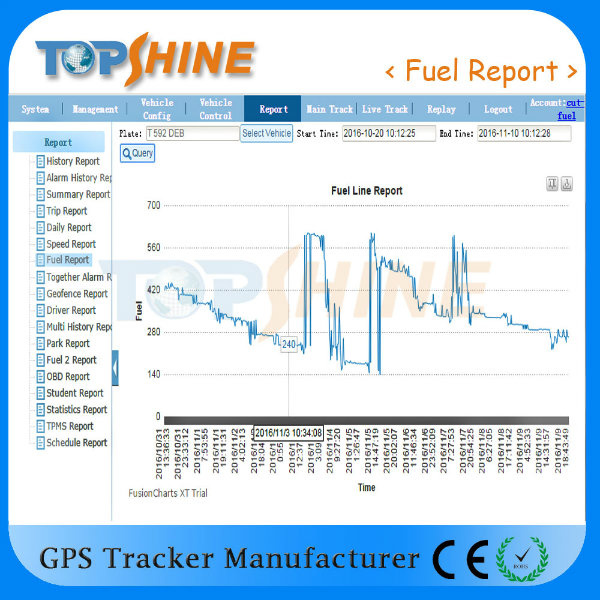

Fuel tracking solution: Monitor the fuel tank / capacity with SMS / GPRS alert.
Driver behavior management solution: harsh accelerate or braking, drive for private purposes, fuel stealing, idle alarm, task scheduling, etc.
FAQQ: Why the tracker can't be switched on?A: 1. Check if wiring is correct or not.
2. Charge the tracker.Q: No response to SMS commandA: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.Q: Why there is a "Last" appearing in a positon report SMS?A: There is no GPS signal. Please take the tracker to somewhere open area.Q: How to use tracking platform?A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,014,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle ManageQ: How to connect Relay to cut off engine?A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
