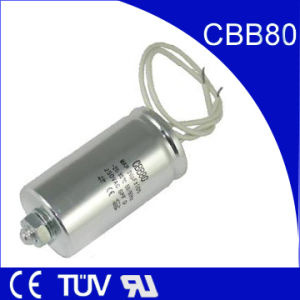

Cbb80 Compact Fluorescent Lamp, 250 to 630VAC

Name: Cbb80 Compact Fluorescent Lamp, 250 to 630VAC
Brand: all-electronics-online.com
SKU: 838067885
Availability: InStock
Rating: 4.7 (101 reviews)

Price:	US $ 0.4-1.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description:
1.Applications:
This series are particularly suitable for parallel compensation of discharge lamps.
Dielectric consists of self-healing polypropylene film,case and cover are made of self-extinguishing

2 .Technical Performance:

Rated Voltage	250V AC 50Hz 280V AC 50Hz
working Temperature range	-25~+85ºC
Dissipation factor (20ºC ,50Hz)	tg δ≤ 0.002
Discharge resistor	on request
Test voltage between terminals	2.15 Un for 2 seconds
Between terminal and case	2kV for 60 seconds (type test)
Reference standards	En 61048 ; Type B En 61049
Protection	Case in self-extinguishing plastic material
Terminals	Unipolar leads insulated in pvc
Mounting devices	M8 stud, clamp, captive feet
Capacitance tolerance Different tolerance values are available on request	±5%; ±10%

3 Outline size (type A):

Capacitance Range(μf)	250 V. ac~280 V. ac D×H(mm)
3	34×68
3.5	34×68
4	34×68
4.5	34×68
5	34×68
6	34×68
8	34×68
10	34×68
12	34×68
15	34×68
16	34×68
18	38×70
20	38×70
21	38×70
22	38×70
25	45×70
30	45×92
31.5	45×92
35	45×92
36	45×92
40	45×92
45	50×100
47	50×100
50	50×100
55	50×117
60	50×117
65	50×117

* Leads Softor hardwin Cable win quick conncitor
4 Outline size (type B):

Capacitance Range(μf)	250 V. ac~280 V. ac D×H(mm)
3	40×60
3.5	40×60
4	40×60
4.5	40×60
5	40×60
6	40×60
8	40×60
10	40×60
12	40×60
15	40×60
16	40×70
18	40×70
20	40×70
21	40×80
22	40×80
25	40×80
30	45×80
31.5	45×90
35	45×90
36	45×90
40	45×90
45	50×100
47	50×100
50	50×100
55	50×100
60	50×100
65	55×130
70	55×130
75	55×130
80	55×130
85	60×130
90	60×130
95	60×130
100	60×130

Prod Model:	CBB80
Warranty Time:	3 Years ,and Long Life:
Delivery Time:	2 Weeks
Application:	Lighting
Package Type:	Surface Mount
Capacitance:	1-50uf

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
