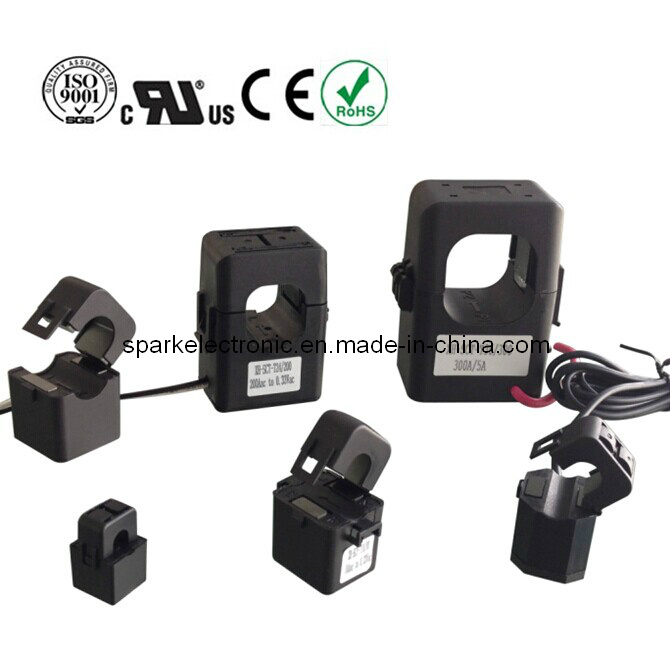

Ce 150A /0.333V 24mm Diameter Split Core Current Transducer Current Transformer

Name: Ce 150A /0.333V 24mm Diameter Split Core Current Transducer Current Transformer
Brand: all-electronics-online.com
SKU: 787724955
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	US $ 2.5-39/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Jiangyin Spark is a professional manufacturer in China devoted in research, design, and production of Split Core(Clamp on) Current Transformer(CTs), Clip on Current Sensor, Split Core Current Transducer, High precision current transformer, and mini voltage transformer. Measure AC current from 1A to 5000A, Output can be 0.333V, mA, 1A and 5A.

CE UL ETL Split-Core Energy Meter Current Transformer/Transducer/Sensor CT clamp on ct

Features:
Small size, low cost
High secondary turns
Secure locking hinge

Features:
Maximum continuous primary current 5A to 5000AAC
Current Ratio: 3000: 1
Output: 0.333V, mV or mA.
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be cust

Please contact me for more information by Trademesseger

Model	I.D.	Ratio	Rated Amps	Accuracy
XH-SCT-T06	6mm	1000:1	1, 5,10, 15, 20,	0.5 , 1.0
XH-SCT-T10	10mm	3000:1	5, 15, 30, 50, 75,80	0.5 , 1.0
XH-SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5 , 1.0
XH-SCT-T24	24mm	3000:1	100, 150, 200, 300	0.5 , 1.0
XH-SCT-T36	36mm	3000:1	300, 400, 500, 600	0.5 , 1.0

Prod Model:	XH-SCT-T06/T10/ T16/ T24/T36/T50
Current Transformer:	Split Core Current Transformer
Current Sensor:	Split Core Current Sensor
Current Transducer:	Split Core Current Transducer
Sensor:	Consumption Sensor
Output:	0.333V,Ma,a
Accuracy:	1.0
Frequency:	50/60Hz
Size:	Small
Color:	Black
Insulation Strength:	3kv
Application:	Power,Electronic,Instrument,Power~@~Electronic~@~I

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
