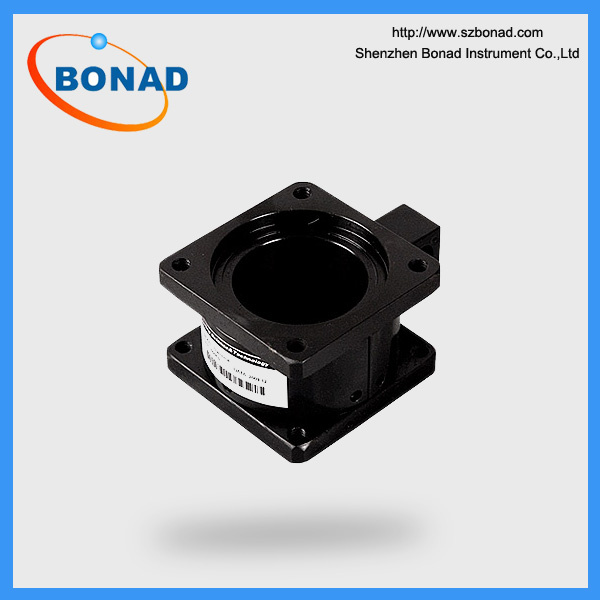

CFN-1 Static torque sensor easy to use
CFN-II static torque sensor use the principle of resistance stain.it has the advantage of high accuracy, high stability,large measuring range and easy to install.the way of connection is according to the user.
Technology parameters:(range 200N.m~1000N.m,customize )
| parameters | Unit | Technical Parameters | Parameters | Unit | Technical Parameters |
| Sensitivity | mV/V | 1.5~2.0±0.05 | temperature sensitivity coefficient | ≤%F·S/10°C | ±0.1 |
| Nonlinear | ≤%F·S | ±0.25 | Operating Temperature Range | °C | -20ºC~+80ºC |
| Lag | ≤%F·S | ±0.25 | Input Resistance | Ω | 350±20Ω |
| Repeatability | ≤%F·S | ±0.02 | Output Resistance | Ω | 350±5Ω |
| Motility changes | ≤%F·S/30min | ±0.25 | Safety overload | ≤%F·S | 150%F·S |
| Zero output | ≤%F·S | ±1 | Insulation Resistance | MΩ | ≥5000MΩ(50VDC) |
Zero temperature coefficient
| ≤%F·S/10°C | ±0.1 | Recommended excitation voltage | V | 10V-15V |
FAQ
1.What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
2.What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
3.what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
4.How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
5.What is the warranty of the products?
One year ,but we can provide you life long support .
6.What is the package?
Export standard Solid wooden case
7.What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
8.What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
