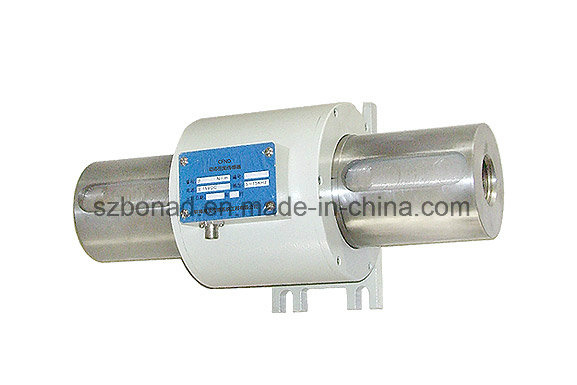

Cfnd Dynamic Rotate Speed Torque Sensor
Price: |
US $ 45-299/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Prod Model: |
BND-CFND |
Delivery Time: |
3-7days |
Warranty: |
1year |
Product Name: |
Cfn-1 Static Torque Sensor |
Static Overload: |
120% |
Measure Range: |
200n.M-1000n.M |
Total Current Consumption: |
<130mA |
Nonlinear: |
+/-0.5%F·s |
Signal Ratio: |
(50+/-10)% |
Rated Torque: |
10kHz+/-5kHz |
Supply Voltage: |
+15V+/-5%;-15V+/-5% |
Product Description

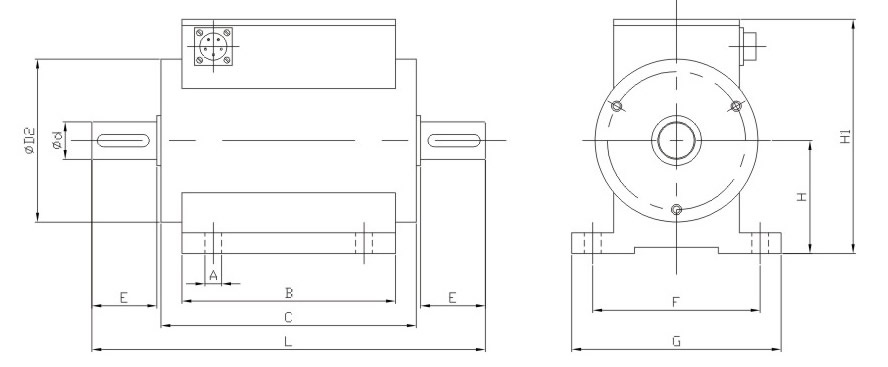

CFND dynamic rotate speed torque sensorCFND dynamic torque sensor use the principle of resistance stain.it has the advantage of high accuracy, high stability,large measuring range and easy to install.the way of connection is according to the user. Range(N.M) | d | D2 | A | B | C | E | F | G | H | H1 | L | b*h*l*n |
0-100 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 112 | 188 | 6*6*25*1 |
200 | 28 | 92 | 8 | 72 | 123 | 41 | 61 | 100 | 60 | 125 | 209 | 8*7*35*1 |
500 | 38 | 96 | 8 | 72 | 124 | 55 | 61 | 100 | 65 | 135 | 238 | 10*8*50*2 |
1K-2K | 48 | 106 | 8 | 69 | 126 | 70 | 78 | 120 | 68 | 144 | 270 | 14*9*65*2 |
5000 | 75 | 144 | 13 | 69 | 132 | 105 | 85 | 120 | 90 | 185 | 347 | 20*14*95*2 |
10000 | 98 | 158 | 13 | 80 | 144 | 120 | 110 | 160 | 110 | 214 | 389 | 28*16*115*2 |
Technology parameters:(range 200N.m-1000N.m,customize)error | ±0.5%F·S | Static overload | 120% |
Nonlinear | <±0.25%F·S | Operating Temperature Range | 0~60ºC |
Repeatability | ±0.2 %FS %F·S | Storage Temperature | -20ºC~70ºC |
backlash | <0.2%F·S | supply voltage | +15V±5%;-15V±5% |
Zero temperature coefficient | <0.5% F·S | - Total current consumption
| <130mA |
temperature sensitivity coefficient | <0.5%F·S/10ºC | Frequency signal output | 5KHZ-15KHZ |
Output Resistance | 1kΩ±3Ω | rated torque | 10KHZ±5KHZ |
Insulation Resistance | >500MΩ | signal ratio | (50±10)% |
FAQWhat about your quality?Each equipment must be carry out 100% examination and test again before shipping What is the MOQ ?if we have in store MOQ can be 1 sample if we dont have in store , the MOQ will be 5 sample what is the lead time ?if we have in stock,it will be shipping to you within 3-5days.if we dont have it in store ,it will need 10-40days.How long the delivery time ?Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .What is the warranty of the products?One year ,but we can provide you life long support .What is the packageExport standard Solid wooden case What is the shipping way ?We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .What is the payment term ?T/T, Western Union,Money gram ,Paypal etc
HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.
Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.
Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
