Cfnd Dynamic Torque Load Cell Sensor with 10000n. M Range
| Price: |
US $ 45-299/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BND-CFND |
| Delivery Time: |
3-7days |
| Warranty: |
1year |
| Product Name: |
Cfn-1 Static Torque Sensor |
| Static Overload: |
120% |
| Measure Range: |
200n.M-1000n.M |
| Total Current Consumption: |
<130mA |
| Nonlinear: |
+/-0.5%F·s |
| Signal Ratio: |
(50+/-10)% |
| Rated Torque: |
10kHz+/-5kHz |
| Supply Voltage: |
+15V+/-5%;-15V+/-5% |
Product Description

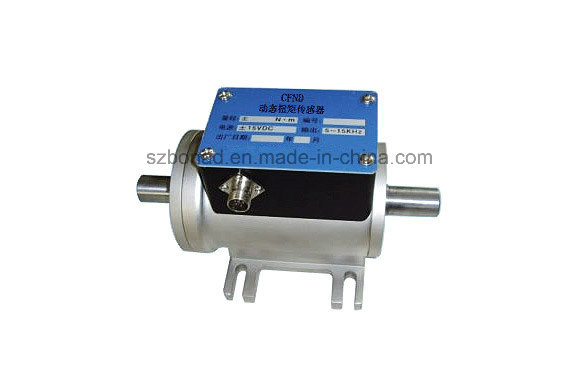

CFND dynamic torque load cell sensor with 10000N.m rangeCFND dynamic torque sensor use the principle of resistance stain.it has the advantage of high accuracy, high stability,large measuring range and easy to install.the way of connection is according to the user. | (N.M) | d | D2 | A | B | C | E | F | G | H | H1 | C1 | E2 | L | b*h*l*n |
| 5 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 10 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 20 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 30 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 50 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 100 | 18 | 78 | 8 | 72 | 122 | 31 | 61 | 100 | 54 | 116 | 90 | 50 | 188 | 6x6x25x1 |
| 200 | 28 | 92 | 8 | 72 | 123 | 41 | 61 | 100 | 60 | 125 | 90 | 59 | 209 | 8x7x35x1 |
| 500 | 38 | 96 | 8 | 72 | 124 | 55 | 61 | 100 | 65 | 135 | 90 | 74 | 238 | 10x8x50x2 |
| 1K-2K | 48 | 106 | 12 | 69 | 126 | 70 | 78 | 120 | 68 | 144 | 90 | 90 | 270 | 14x9x65x2 |
| 5000 | 75 | 144 | 12 | 69 | 131 | 105 | 156 | 180 | 90 | 185 | 100 | 139 | 347 | 20x14x95x2 |
| 10000 | 98 | 158 | 14 | 80 | 143 | 118 | 170 | 200 | 110 | 214 | 110 | 155 | 389 | 28x16x115x2 |
| 20K-30K | 105 | 170 | 14 | 87 | 160 | 125 | 180 | 204 | 115 | 236 | 123 | 165 | 420 | 28x16x119x2 |
| 50K-60K | 150 | 240 | 14 | 89 | 163 | 123 | 184 | 230 | 153 | 309 | 123 | 165 | 419 | 40x22x115x2 |
| 100K | 170 | 270 | 16 | 95 | 188 | 200 | 194 | 240 | 169 | 340 | 140 | 252 | 598 | 45x25x195x2 |
Technology parameters:(range 200N.m-1000N.m,customize)| error | ±0.5%F·S | Static overload | 120% |
| Nonlinear | <±0.25%F·S | Operating Temperature Range | 0~60ºC |
| Repeatability | ±0.2 %FS %F·S | Storage Temperature | -20ºC~70ºC |
| backlash | <0.2%F·S | supply voltage | +15V±5%;-15V±5% |
Zero temperature coefficient
| <0.5% F·S | - Total current consumption
| <130mA |
| temperature sensitivity coefficient | <0.5%F·S/10ºC | Frequency signal output | 5KHZ-15KHZ |
| Output Resistance | 1kΩ±3Ω | rated torque | 10KHZ±5KHZ |
| Insulation Resistance | >500MΩ | signal ratio | (50±10)% |
FAQWhat about your quality?Each equipment must be carry out 100% examination and test again before shipping What is the MOQ ?if we have in store MOQ can be 1 sample if we dont have in store , the MOQ will be 5 sample what is the lead time ?if we have in stock,it will be shipping to you within 3-5days.if we dont have it in store ,it will need 10-40days.How long the delivery time ?Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .What is the warranty of the products?One year ,but we can provide you life long support .What is the packageExport standard Solid wooden case What is the shipping way ?We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .What is the payment term ?T/T, Western Union,Money gram ,Paypal etc
