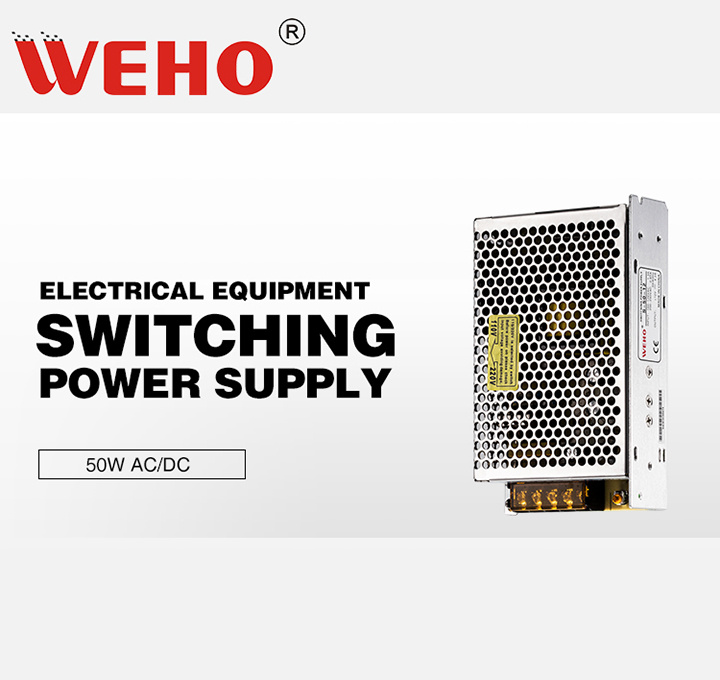

China Manufacturer AC / DC 50W 5V SMPS

Name: China Manufacturer AC / DC 50W 5V SMPS
Brand: all-electronics-online.com
SKU: 831745375
Availability: InStock
Rating: 4.9 (147 reviews)

Price:	US $ 5.4-7.8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-50-5
Output Current:	10A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.45kg
MOQ:	1-5PCS
Certificate:	Ce RoHS
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

50W 5V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	S-50-5	S-50-12	S-50-15	S-50-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%
Rated output current	10A	4.2A	3.4A	2.1A
Output current range	0~10A	0~4.2A	0~3.4A	0~2.1A
Wave and noise(Note:3)	75mVp-p	60mVp-p	60mVp-p	50mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	50W	50.4W	51W	50.4W
Efficiency	71%	78%	78%	80%
Adjustable range for DC voltage	+10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
Input current	1.3A/115V 0.65A/230V
AC Inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	159X97X38mm (LWH)
Weight	0.5kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
