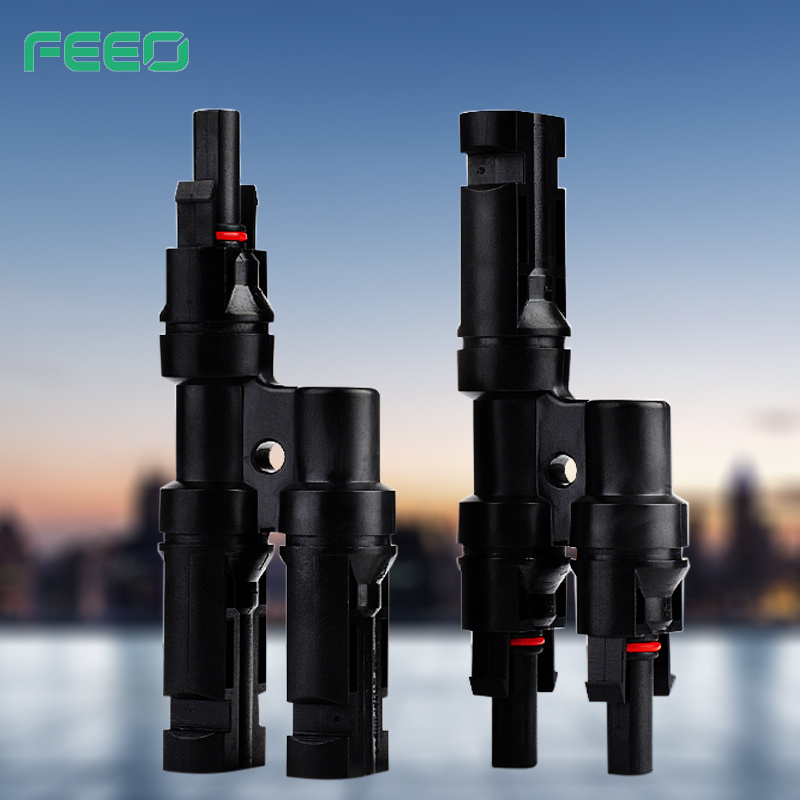

China Supplier 2 Pin Waterproof Low Voltage Plastic T Connector

Name: China Supplier 2 Pin Waterproof Low Voltage Plastic T Connector
Brand: all-electronics-online.com
SKU: 781433315
Availability: InStock
Rating: 5 (62 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FMC4B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Fmc4b
Rated Current:	30A
Rated Voltage:	1000VDC
Test Voltage:	6000V(50Hz, 1min)
Degree Of Protection:	IP2X/IP65
Contact Material:	Copper,Tin-Plated
Insulation Material:	PA/PRO
Type:	Socket Terminals
Application:	Solar Power System
Material:	Copper/Tin-Plated
Certification:	CE CCC
Brand:	Feeo

Product Description

china supplier 2 pin waterproof low voltage plastic t connector

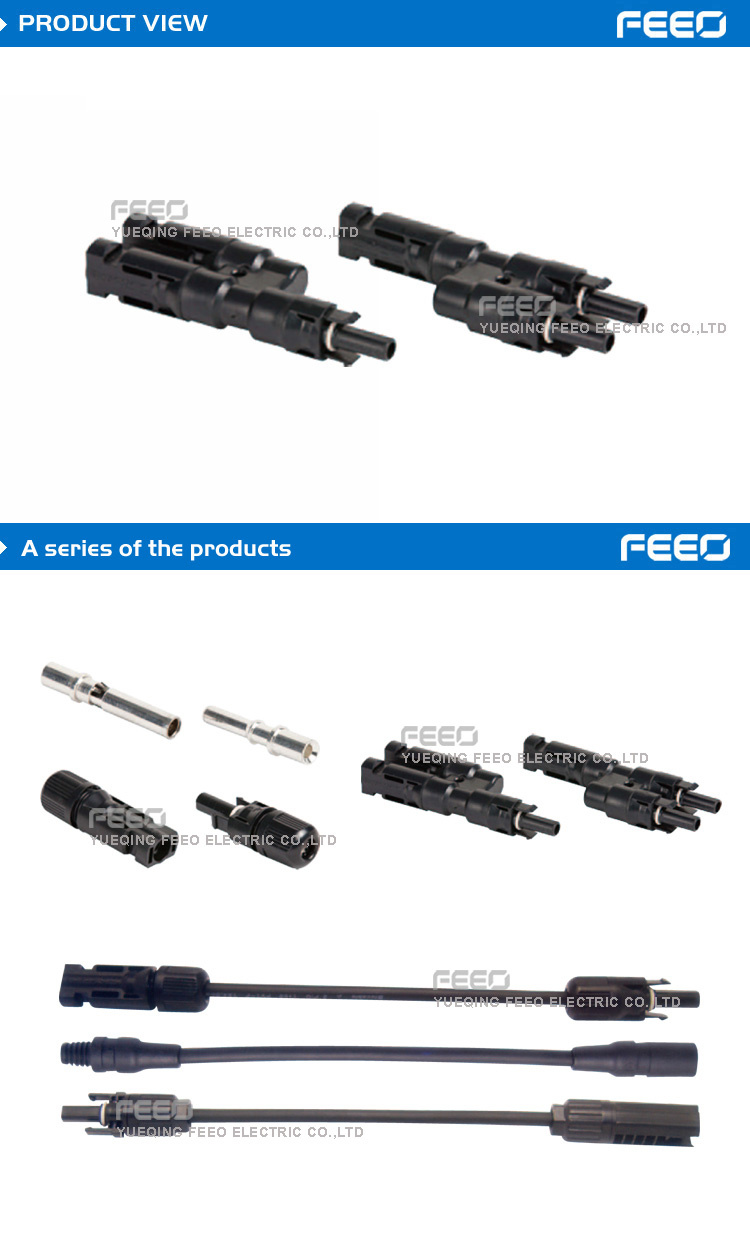

FMC4B connector

PV Branch
Plug FMC4B-2M1F
Socket FMC4B-2F1M

Technical Data
Brand	FEEO
Type	Solar connector
Rated current	30A
Rated voltage	1000V DC
Test voltage	6000V(50Hz, 1min)
Overvoltage type/pollution degree	CAT III /2
Contact resistance of plug connector	1mΩ
Contact material	Copper, Tin-plated
Insulation material	PA/PRO
Degree of protection	IP2X/IP67
Flame class	UL94-VO
Safety class	II
Insertion force	≤50N
withdrawal force	≥50N
Temperature range	-40ºC~+110ºC

FAQ

Q: If I'm interested in your mc4 connector when I can receive your quotation and detail information after send the enquiry?

A:All your enquiry will be replied in 24hours.

Q:Your mc4 connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!

A: Our mc4 connector is IP67 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.

Q:Can I get a sample before the order because I really don't how is your mc4 connector quality?

A:Of course!We also think sample order is the best way to build the trust.

Q:How's the delivery?Because I really need them is urgently?

A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Q:How's the warranty period for your mc4 connector?

A:We offer two year warranty for our customer.

Our company is a manufacturer of Solar Electrical Products/DC Circuit Breaker/DC SPD/DC FUSE/Waterproof Box with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries.

Established in 2000, YUEQING FEEO ELECTRIC Co., Ltd. Specializes in manufacturing Solar PV product. Located in WENZHOU we enjoy convenient access to major transportation networks. Our company covers an area of 2000m² And has around 70 staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
