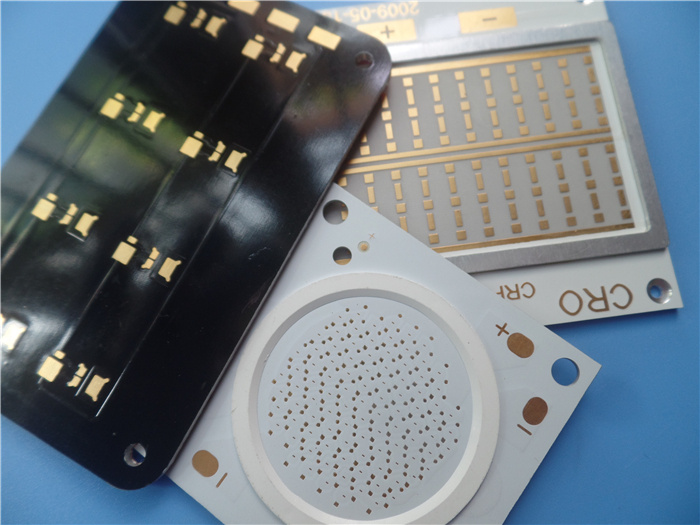

Circuit Board 10 Oz Metal Back Heavy Copper PCB
Price: |
US $ 0.9/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
BIC-699-V6.99 |
Board Thickness: |
1.0mm |
Pth Cu Thickness: |
≥20 µm |
Surface Cu Thickness: |
35 µm |
Coverlay Colour: |
Yellow Coverlay / Green Solder Mask |
Thickness Of Coverlay: |
25 µm |
Color Of Silkscreen: |
White |
Peeling Test Of Coverlay: |
No Peelable |
Surface Finish: |
Immersion Gold |
RoHS Required: |
Yes |
Test: |
100% Electrical Test |
Structure: |
Multilayer FPC |
Material: |
Polyimide |
Combination Mode: |
Adhesive Flexible Plate |
Conductive Adhesive: |
Conductive Silver Paste |
Application: |
Micro USB |
Insulation Materials: |
Polyimide |
Brand: |
Bicheng |
Product Description
Company ProfileIn the past year, Bicheng has served thousands of customers in the world in the applications
of power electronics, intercom systems, telecommunications etc. Bicheng now is one of
the established brands in PCB industry.
Our clients are from worldwide.
Australia: Perth, Melbourne, New South Wales, South Australia, West Australia
Austria: Breitenfurt bei Wien, Graz
Bangladesh: Purana Paltan
Belgium: Deinze, Hasselt
Bulgaria: Plovdiv
Brazil: Caxias do Sul
Canada: Quebec, Ontario, Vancouver
Czech: Pardubice, Horní Počernice
France: Villeneuve La Garenne Cedex, Montchenu
Germany: Stuttgart, Garbsen, Hamburg, Altenburg, Velbert Kleinmachnow, Potsdam
Hungary: Budapest
India: Tamilnadu
Ireland: Cork
Israel: Nettanya City, Ben-Gurion Airport, Tel Aviv, Yahud, Acre,
Italy: Peschiera Borromeo, Verona, Mezzocorona, Pietrasanta Lucca, Torino
Kuwait: Safat
Malta: Mosta
Malaysia: Selangor
Mexico: Leon Guanajuato
Portugal: Guimarães
South Korea: Gyeonggi-DO
Serbia: Kragujevac
Sweden: Göteborg , Siljansnäs,
Thailand: Bangkok, Chonburi
Turkey: Ankara, Istanbul, Kocaeli
The Netherlands: Diemen
UK: Bristol, Surrey
Ukraine: Kiev
USA: Connecticut, Alaska, New York City, Miami,, New Jersey, Texas, Colorado, Largo, California,
Candler
Vietnam: HoChiMinh City
Zambia: Kitwe
Printed Circuit Board
High Frequency PCB
Aluminum PCB
Flexible PCB
Technology Information
Bicheng Flexible Printed Circuit CapabilityNo. | Specifications | Capabilities |
1 | Board Type | Single layer, Doulbe layer, Multilayer, Rigid-Flex |
2 | Base Material | PI, PET |
3 | Copper Weight | 0.5oz, 1oz, 2oz |
4 | LED Maximum Size | 250 x 5000mm |
5 | General Maximum Size | 250 x 2000mm |
6 | Board Thickness | 0.03mm-3.0mm |
7 | Thickness Tolerance | ±0.03mm |
8 | Mininum Drill Hole | 0.05mm |
9 | Maximum Drill Hole | 6.5mm |
10 | Tolerance of Drill Hole | ±0.025mm |
11 | Thickness of Hole Wall | >= 8 um |
12 | Minimum Track/Gap of Single Layer Board | 0.025/0.03mm |
13 | Minimum Track/Gap of Double Layer and Multilayer Board | 0.03/0.040mm |
14 | Etching Tolerance | ±0.02mm |
15 | Minimum Width of Silk Legend | >= 0.125mm |
16 | Minimum Heigh of Silk Legend | >=0.75mm |
17 | Distance from Legend to Pad | >=0.15mm |
18 | Distance from Opening Solder Mask of Drill Coverlay to Track | >=0.03mm |
19 | Distance from Opening Solder Mask of Punching Coverlay to Track | >=0.03mm |
20 | Thickness of Immersion Nickel | 100-300u" |
21 | Thickness of Immersion Gold | 1-3u" |
22 | Thicnkess of Immersion Tin | 150-400u" |
23 | Minimum Electrical Testing Pad | 0.2mm |
24 | Minimum Tolerance of Outline (Normal Steel Mould Punch) | ±0.1mm |
25 | Minimum Tolerance of Outline (Precision Steel Mould Punch) | ±0.05mm |
26 | Mininum Radius of Bevel Angle (Outline) | 0.2mm |
27 | Stiffner Material | PI, FR-4, 3M Adhesive, PET, Steel Sheet |
28 | RoHs | Yes |
29 | Solder Mask Colour | Yellow, White, Black, Green |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
