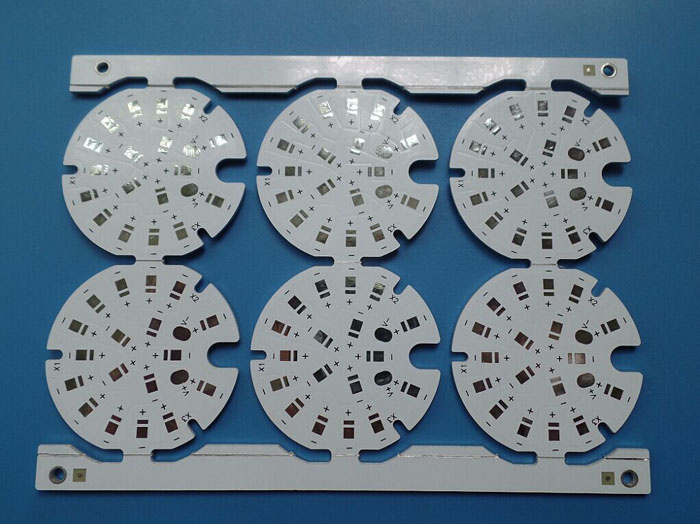

Aluminum PCB Board in LED Panel Light HASL Lead Free
| Price: |
US $ 1.2/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Aluminum PCB 6061 Aluminum Single Sided MCPCB 1W/MK HASL Lead Free Applied In Led Panel Light

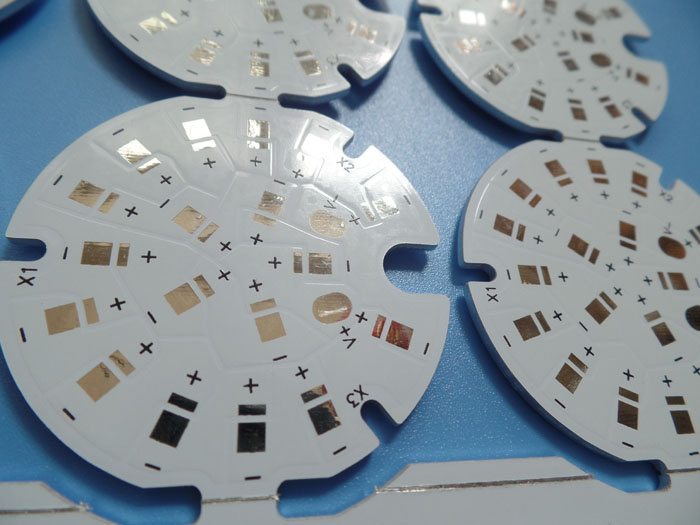

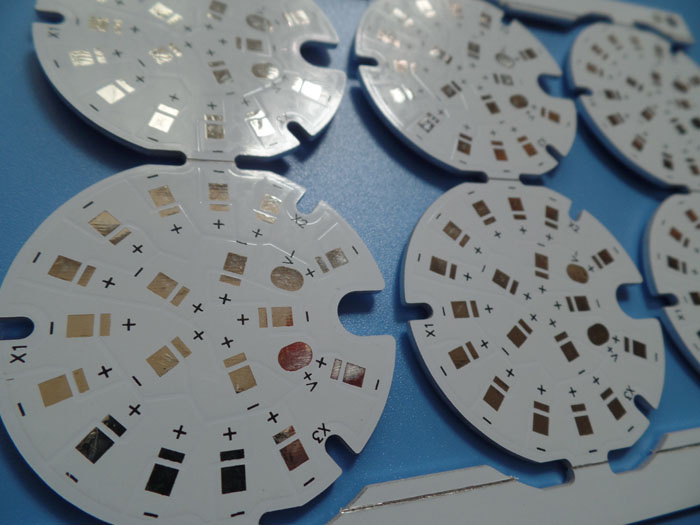

Commodity IntroductionThis is a type of Aluminum 6061 PCB for the application of Led Panel Light. It's a single sided layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 160 x 70mm=6PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35 um(1 oz) |
| 1W/MK dielectric material 75 um |
| Aluminum 6061 1.6mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 16 mil/25 mil |
| Minimum / Maximum Holes: | 0 |
| Number of Different Holes: | 0 |
| Number of Drill Holes: | 0 |
| Number of Milled Slots: | 3 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Aluminum core: | 1W / MK dielectric material 75um |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54 µm |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | White, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Non Plated Throught Hole (NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Led panel light, Frequency Inverter
5V Dc Power Supply
LTE Power Supply
Pyramid Power Supply
Server Power Supply |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
MCPCB CapabilityMetal core PCB's are thermal management circuit boards which use a base metal material as the heat radiator part of the PCB. They are used in high heat generating application like LED lighting in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking Garage Lighting, LED spot light etc. The metal core can be aluminum (aluminum core PCB) and copper (copper core PCB). The most common used aluminum core PCB is the thermal conductivity at 1W/MK and 2W/MK.| NO. | Parameter | Value |
| 1 | Type of Metal Core | Aluminum, Copper, Iron |
| 2 | Model of Metal Core | A1100, A5052, A6061, A6063, C1100 |
| 3 | Surface Finish | HASL, Immersion Gold, Immersion Silver, OSP |
| 4 | Thickness of Surface plating | HASL: Sn>2.54 µm, ENIG: Au 0.025-0.1 µm, Ni 2.5-5 µm |
| 5 | Layer Count | 1-4 Layers |
| 6 | Maximum of Board Size | 23" x 46" (584mm×1168mm) |
| 7 | Mininum of Board Size | 0.1969" x 0.1969" (5mm×5mm) |
| 8 | Board Thickness | 0.0157" x 0.2362" (0.4-6.0mm) |
| 9 | Copper Thickness | 0.5OZ(17.5 µm),1OZ(35 µm),2OZ(70 µm),3OZ(105 µm),4OZ(140 µm) |
| 10 | Minimum Track Width | 5 mil (0.127mm) |
| 11 | Minimum Space | 5 mil (0.127mm) |
| 12 | Minimum Hole Size | 0.0197" (0.5mm) |
| 13 | Maximum Hole Size | No limit |
| 14 | Minimum Holes Punched | PCB thickness <1.0mm: 0.0394" (1.0mm) |
| PCB thikness 1.2-3.0mm: 0.0591" (1.5mm) |
| 15 | PTH Wall Thickness | >20 µm |
| 16 | Tolerance of PTH | ±0.00295" (0.075mm) |
| 17 | Tolerance of NPTH | ±0.00197" (0.05mm) |
| 18 | Deviation of Hole Position | ±0.00394" (0.10mm) |
| 19 | Outline Tolerance | Routing: ±0.00394" (0.1mm) |
| Punching: ±0.00591" (0.15mm) |
| 20 | Angle of V-cut | 30°, 45°, 60° |
| 21 | V-cut Size | 0.1969" x 47.24" (5mm×1200mm) |
| 22 | Thickness of V-cut Board | 0.0236" x 0.1181" (0.6-3mm) |
| 23 | Tolerance of V-cut Angle | ±5º |
| 24 | V-CUT Verticality | ≤0.0059" (0.15mm) |
| 25 | Minimum Square Slots Punched | PCB thickness < 1.0mm: 0.0315" x 0.0315" (0.8 x 0.8mm) |
| PCB thickness 1.2-3.0mm: 0.0394" x 0.0394" (1.0 x 1.0mm) |
| 26 | Minimum BGA PAD | 0.01378" (0.35mm) |
| 27 | Minimum Width of Solder Mask Bridge. | 8 mil (0.2032mm) |
| 28 | Minimum Thickness of Solder Mask | >13 µm (0.013mm) |
| 29 | Insulation Resistance | 1012ΩNormal |
| 30 | Peel-off Strength | 2.2N/mm |
| 31 | Solder float | 260ºC 3min |
| 32 | E-test Voltage | 50-250V |
| 33 | Thermal Conductivity | 0.8-8W/M.K |
| 34 | Warp or Twist | ≤0.5% |
| 35 | Flammability | FV-0 |
| 36 | Minimum Height of Component indicator | 0.0059"(0.15mm) |
| 37 | Minimum Open Solder Mask on Pad | 0.000394" (0.01mm) |
| Prod Model: |
BIC-118-V1.18 |
| Aluminum Core: |
1W / Mk Dielectric Material 75 Um |
| Thermal Resistance(°c/W): |
<=0.45 |
| Breakdown Voltage(VDC): |
4000 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL), Lead Free |
| Solder Mask Color: |
White, Taiyo Psr400 Wt02 |
| Colour Of Component Legend: |
Black |
| Via: |
Non Plated Throught Hole (Npth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 6061 |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
