2.0mm MCPCB 5052 Aluminum with HASL for Power LED Lighting
| Price: |
US $ 0.82/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

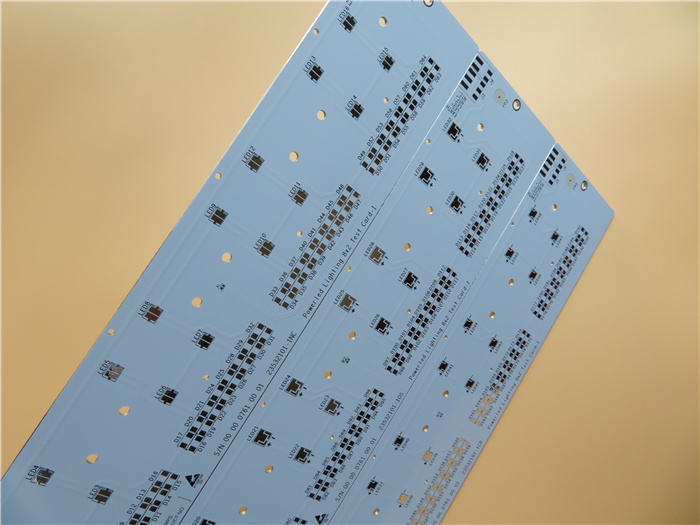

1.1 General description
This is a type of metal core PCB built on aluminium substrate with Tg 130°C for the application
of power led lighting. It's 2.0 mm thick with black silkscreen on white solder mask and HASL are
on pads. The base material is used from totking, entire board supplying 3 PCBs per panel with
3 designs. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panels
are packed for shipment.
1.2 Features and benifits
a. Reduce the cost of hardware and assembly;
b. Improve the power density and reliability of the device;
c. Optimization combination of power circuit and control circuit;
d. Reduce the dependence of heat sinks and other hardware (including thermal interface
materials);
e. Strict WIP inspection and monitoring as well as working instruction;
f. UL recognized and RoHS Directive-compliant;
g. Team with passion, discipline, responsibility and honesty;
h. No quality complaint is meant to save money;
i. Experienced sales persons and skilled customer services;
1.3 Application
High frequency amplifier, Gas station lighting, Light conversion system, Power module.
1.4 Parameter and data sheet| PCB SIZE | 325 x 226mm=3 types = 3PCS |
| BOARD TYPE | Aluminum PCB, IMS PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material |
| Aluminum 5052 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 62.4 mil /- mil |
| Minimum / Maximum Holes: | 4.2 mm / 4.2 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 21 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.8mm ±0.18 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, V-cut |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor
and leged FREE AREA |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
| Prod Model: |
BIC-821-V8.21 |
| Aluminum Core: |
1W / Dielectric Material |
| Thermal Resistance(°c/W): |
<=0.45 |
| Minimum / Maximum Holes: |
4.2 mm / 4.2 mm |
| Final Foil External: |
1oz |
| Final Height Of PCB: |
1.8mm ±0.18 |
| Surface Finish: |
Hot Air Soldering |
| Solder Mask Color: |
White |
| Colour Of Component Legend: |
Black |
| Via: |
No Via |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
