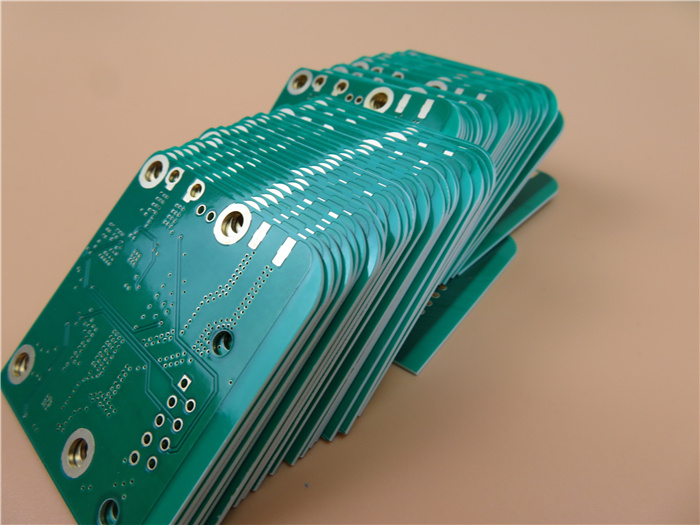

RF PCB on 30 Mil (0.762mm) RO4350b with Immersion Gold
| Price: |
US $ 0.86/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-815-V8.15 |
| Final Foil External: |
1.5 Oz |
| Final Height Of PCB: |
0.8mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
5 Mil / 5 Mil |
| Minimum / Maximum Holes: |
0.4 mm / 5.5 mm |
| Via: |
Minimum Size 0.4mm |
| Board Plating: |
0.0029" |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description
This is a type of RF PCB built on 30mil RO4350B substrate with Tg 280°C for the application
of Wireless Communication. It's 0.80 mm thick with 2 layers copper, white silkscreen over
green solder mask and immersion gold are on pads. The base material is used from Rogers
Corp., entire board supplying 1 PCB up. They're fabricated per IPC 6012 Class 2 using supp
-lied Gerber data. Each 25 boards are packed for shipment.
1.2 Features and benifits
a. The dielectric constant (DK) is low and stable, so the signal transmission is good without delay;
b. Excellent high frequency performance due to low dielectric tolerance and loss;
c. The characteristic of low dielectric loss makes the signal loss at a lower level, which makes the
signal transmission of the whole equipment excellent;
d. Gold finish has long storage time,it can be stored for more than 1 year in vacuum bag;
e. 16000 square meter workshop;
f. Meeting your PCB needs from prototype to mass production;
g. Small quantity order is accepted;
h. Hassle-free, one-to-one after-sales service;
1.3 Application
Splitter, Directional coupler, Spread spectrum, I/O Amplifier
1.4 Parameter and data sheet| PCB SIZE | 45 x 47mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 0.762mm |
| copper ------- 35um(1oz) + plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.4 mm / 5.5 mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 79 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280ºC, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Immersion gold |
| Solder Mask Apply To: | Top and Bottom side, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.4mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
