Keypad Application Flexible PCB Single Sided Board 0.15mm Thick
| Price: |
US $ 1.26/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Keypad Application Flexible PCB single sided board 0.15mm thick
Commodity Introduction

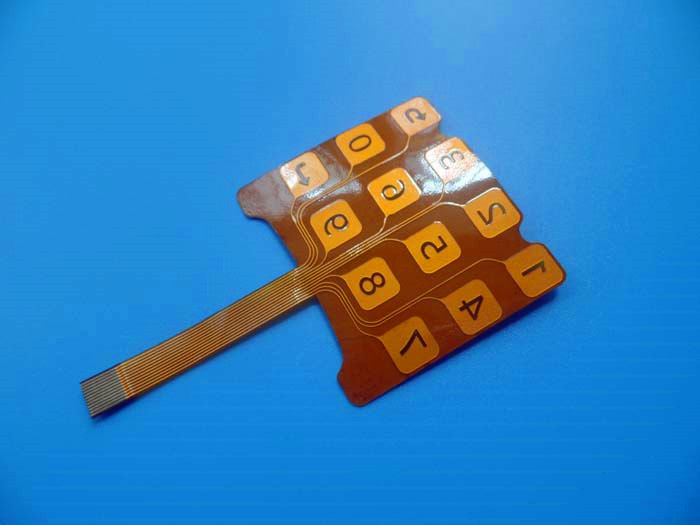

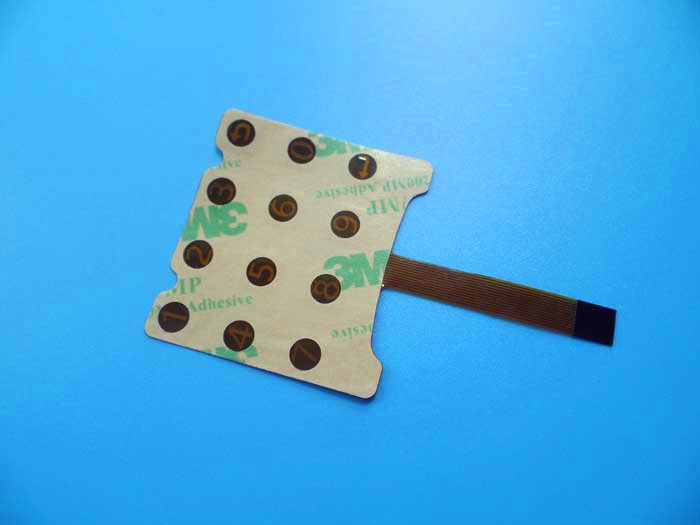

This is a type of flexible printed circuit for the application of calculator keypad. It's a single sided
layer FPC at 0.15mm thick. The base laminate is from ITEQ, It's fabricated per IPC 6012 Class
2 using supplied Gerber data. Polyimide stiffner is applied on the inserting part.
Parameter & Data Sheet| Size of Flexible PCB | 30.53 X 59.37mm |
| Number of Layers | 1 |
| Board Type | Flexible PCB |
| Board Thickness | 0.150mm |
| Board Material | Polyimide 25µm |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 60ºC |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 µm |
| | |
| Coverlay Colour | Yellow |
| Number of Coverlay | 2 |
| Thickness of Coverlay | 25 µm |
| Stiffener Material | Polyimide |
| Stiffener Thickness | 0.2mm |
| | |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Peeling test of Coverlay | No peelable |
| Legend Adhesion | 3M 90ºC No peeling after Min. 3 times test |
| |
| Surface Finish | Immersion Gold |
| Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
| RoHS Required | Yes |
| Famability | 94-V0 |
| |
| Thermal Shock Test | Pass, -25ºC±125ºC, 1000 cycles. |
| Thermal Stress | Pass, 300±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Mass production capability
The manufacturing facilities are independent industrial plant. There're 16000 square meters
workshop area. And the brand new automatic equipment was introduced from Israel, Germany,
Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300
thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide
each month.
PRODUCTS & SERVICES
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers
e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin,
OSP
i) Colour of Solder mask: Green, Blue, Yellow, Black, Red and it's relative Matt color
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service
SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western &
Southern Europe, Northern Europe, Central & South Asian, Middle East.
| Prod Model: |
BIC-1827-V40 |
| Board Thickness: |
0.15mm |
| Surface Cu Thickness: |
35 Um(1 Oz) |
| Coverlay Colour: |
Yellow |
| Color of Silkscreen: |
White |
| Peeling Test of Coverlay: |
No Peelable |
| Surface Finish: |
Immersion Gold |
| RoHS Required: |
Yes |
| Stiffener Thickness: |
0.2mm |
| Thickness of Coverlay: |
24 Um |
| Test: |
100% Electrical Test |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Calculator Keypad |
