Laser Stencil Built 0.12mm Stainless Steel Foil for SMT Usage.
| Price: |
US $ 98/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
1.1 General description

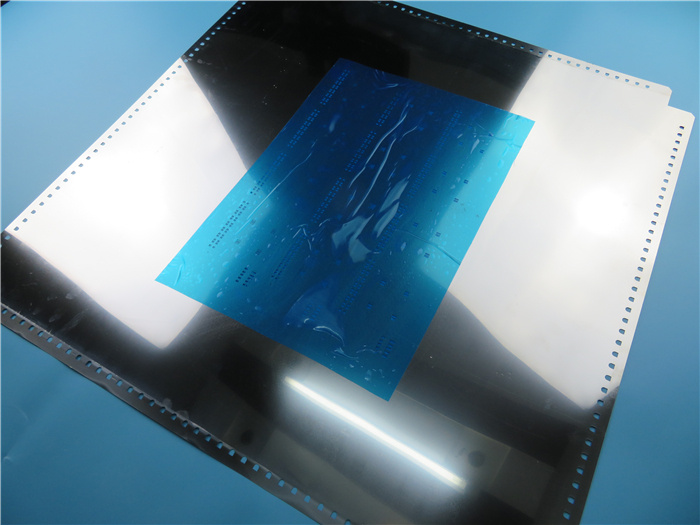

This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with 598 mm x 598mm
length and width. It's fabricated per IPC 7525A using supplied Gerber data, squeegee area locat
-ing in the center. 4 sides of edges are through holes to suit for the SMT machine. It's packed with
KK carton (hard card) and usually 2 stencils are packed for shipment.
1.2 Features and benifits
a. The data file is used directly to produce and reduce the error rate;
b. The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ
m;
c. The opening of SMT template has geometric figure, which is advantageous to the printing and
forming of tin paste;
d. ISO9000 certified manufacturing factory;
e. 12 hours quotation;
f. Quick Lead time: 1-2 days;
g. No MOQ, low cost for prototypes and small runs quantity;
1.3 Application
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.
1.4 Parameter and data sheet| Dimension: | 598 x 598 mm =1 PCS |
| Structure | Stencil foils with aluminum frame |
| Base material | Stainless steel shim |
| Foil Thickness | 0.12mm |
| Aperture configured | Laser cut |
| Appearance | Engraving and electro polishing |
| Fiducial mark | Through hole |
| Service area: | Worldwide |
| Quantity of open pads: | 166 |
| Advantages: | a) High precision dimension; b) Good shape
on the window; c) Hole wall is smoother. |
| Application: | CSP, BGA, 0.5mm QFP etc. package |
| Prod Model: |
BIC-818-V8.18 |
| Structure: |
Stencil Foils, Aluminum Framed |
| Foil Thickness: |
0.12mm |
| Aperture Configured: |
Laser Cut |
| Appearance: |
Engraving and Electro Polishing |
| Advantages1: |
a) High Precision Dimension; |
| Advantages2: |
B) Good Shape on The Window; |
| Advantages3: |
C) Hole Wall Is Smoother. |
| Fiducial Mark: |
Through Hole |
| Application: |
Csp, BGA, 0.5mm Qfp etc. Package |
| Layers: |
Double-Layer |
| Certification: |
ISO |
| Customized: |
Customized |
| Mode Of Production: |
Laser Cut |
| Base Material: |
Stainless Steel Shim |
