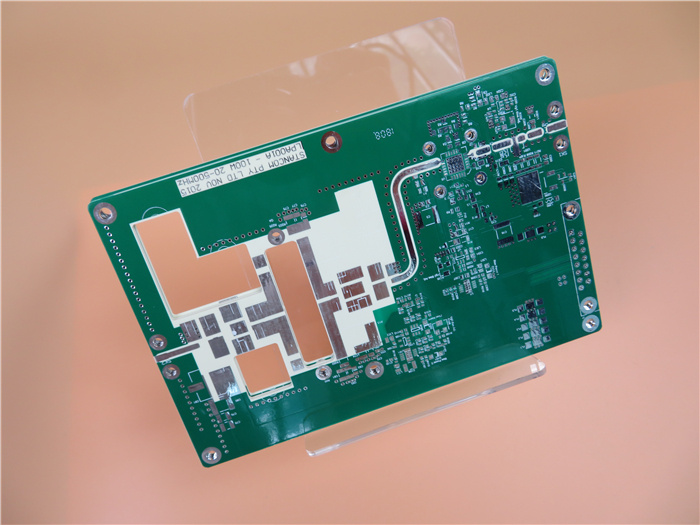

High Frequency PCB on 30 Mil RO4350b with HASL RoHS Compliant
| Price: |
US $ 0.85/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-814-V8.14 |
| Final Foil External: |
1.5 Oz |
| Final Height Of PCB: |
0.8mm |
| Surface Finish: |
HASL Lead Free |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
5 Mil / 5 Mil |
| Minimum / Maximum Holes: |
0.4 mm / 5.2 mm |
| Via: |
Minimum Size 0.4mm |
| Board Plating: |
0.0029" |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
1.1 General description
This is a type of high frequency PCB built on RO4350B substrate with Tg 280°C for the application
of WiFi Amplifier. It's 0.80 mm thick with 2 layers copper, white silkscreen over green solder mask
and HASL are on pads. The base material is used from Rogers Corp., entire board supplying 1
PCB up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards
are packed for shipment.
1.2 Features and benifits
a. RO4350B exhibits a stable dielectric constant over a broad frequency range;
b. An ideal substrate for broadband applications;
c. Low water absorbability influences dielectric constant and dielectric loss less at damp;
d. Good high temperature and low temperature resistance(-192ºC-260ºC);
e. Reliability test, insulation resistance test and ionic contamination test;
f. 8000 types of PCB per month;
g. Competitive price;
h. Quick turn-around samples;
1.3 Application
Preamplifier, Variocoupler, RF Identification, Power divider
1.4 Parameter and data sheet| PCB SIZE | 142 x 92mm=1PCS |
| BOARD TYPE | Double sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1 oz)+plate TOP layer |
| RO4350B 0.762mm |
| copper ------- 35um(1oz) + plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5 mil / 5 mil |
| Minimum / Maximum Holes: | 0.4 mm / 5.2 mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 95 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 3 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO4350B Tg280ºC, er<3.48, Rogers Corp. |
| Final foil external: | 1.5 oz |
| Final foil internal: | N/A |
| Final height of PCB: | 0.8 mm ±10% |
| PLATING AND COATING | |
| Surface Finish | HASL Lead free |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor
and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.4mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
