| Prod Model: |
DH-20-C05PE-01-001 DH-20-J05SX-01-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Specification: |
18-16AWG |
| Diameter Range: |
7mm-9mm |
| Contact Diameter*Number: |
2.0*5 |
| Operating Voltage: |
500V |
| Protection Level: |
IP65/IP67 |
| Durability: |
More Than 500 Times |
| Connecting Mode: |
Plug/Unplug |
| Assembly Wire: |
Solder |
| Copper Needles: |
Copper Alloy(Gold-Plated 4u) |
| Flammability Rating: |
UL94-V0 |
| Application: |
Power, Audio & Video |
Product Description

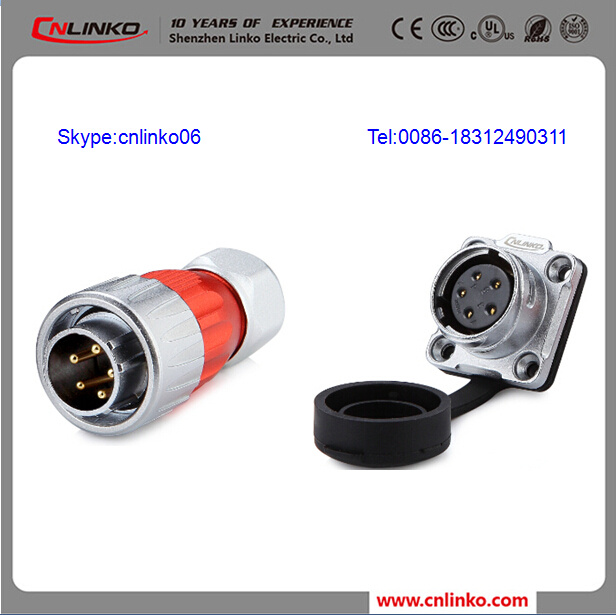

Communications Application 5 Poles Audio Connector in Connector
1. Three positioning, designing as wave spring knob, the outer ring card point locking snap engaged with the socket, making the connection operation for the plug and socket be more simple and convenient, uniform intensity engaging, and keeping the current and signal transmission more stable.
2. Using wave spring structure, so that elastic wave spring stranded automatically when connect the plug and socket.
3. Copper needle retainer designing, so that copper welding operations and install socket were separated, thus solve up limited operating environments from install to then welding.
4. Using outer alloy ring, keeping the plug and socket more stable in the closed state, making the power supply or signal transmission more stable and comparable while connection.
5. Using tail jaws design, to tighten the wire more effective, twisted more effective too, improving the product waterproof rating and tensile strength requirements, and prevent the nut back effectively.
6. Waterproof clip coil designing, so that the products have better waterproof rating when closed.
7. Waterproof IP65/IP67 while connection.
Specifications: | |
| Connecting mode: | Screw connect |
| Protection level: | IP65/IP67 |
| Cable specification: | 1.0mm² ~ 1.5m² /18~16AWG |
| Diameter range: | Φ7mm ~Φ9mm |
| Contact diameter×Qty: | Φ2.0×5 |
| Current rating(A): | 12A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| | |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - 1/4 bayonet connect; socket with cover |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
