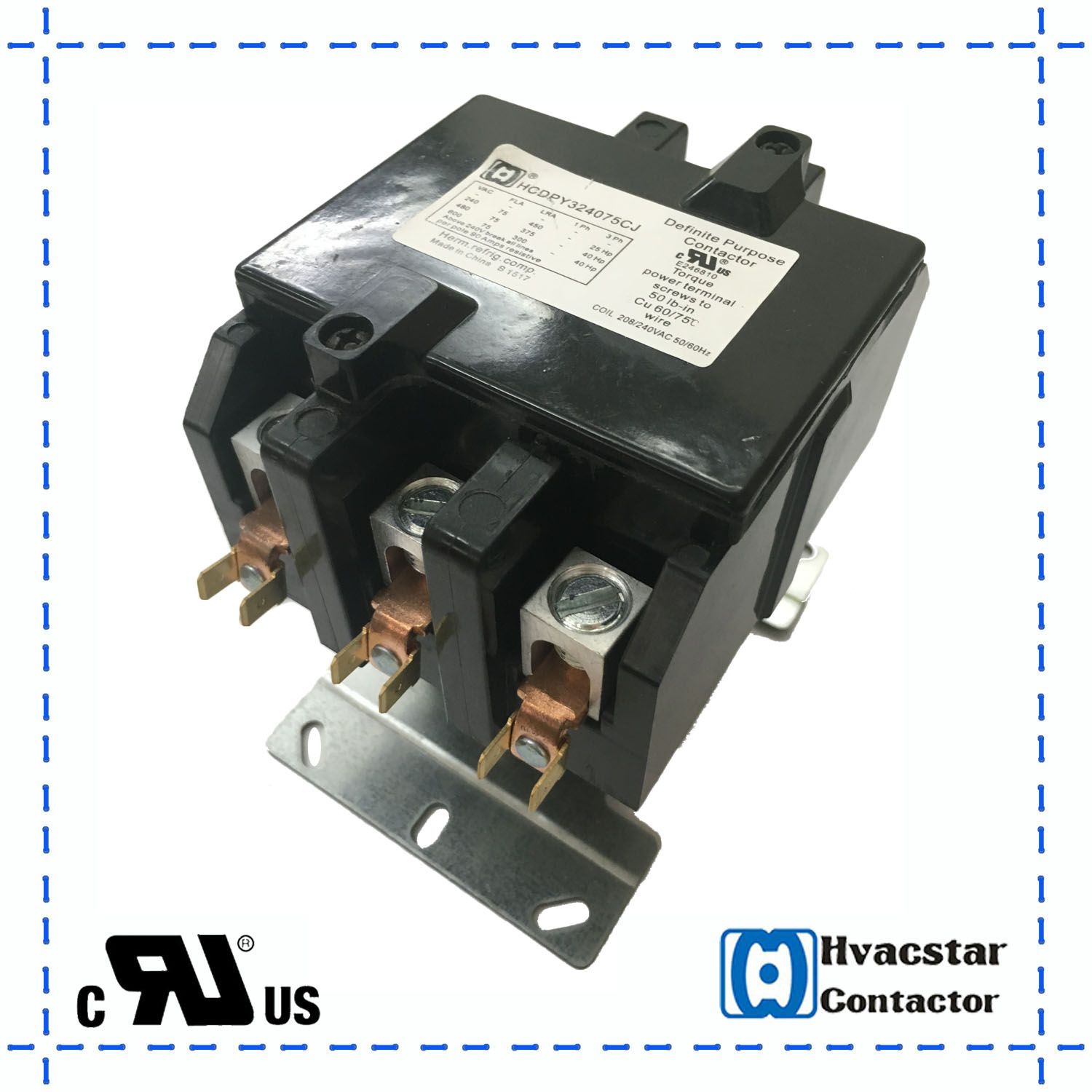

Cooling System Magnetic Contactor Hcdpy324075 Air Conditioner Parts

Name: Cooling System Magnetic Contactor Hcdpy324075 Air Conditioner Parts
Brand: all-electronics-online.com
SKU: 819358225
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Definite Purpose AC Contactor 3 pole

Specifications:

FLA	120V	240V		480V		600V		Non Inductive Amps	Poles
	Hp	LRA	Hp	LRA	Hp	LRA	Hp
25	2	150	3	125	-	100	-	35	2
	-		5		75		7.5		3
30	2	180	5	150	-	120	-	40	2
	-		7.5		10		10		3
40	3	240	7.5	200	-	160	-	55	2
	-		10		15		15		3
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc.
Replaces:Siemens/45EG10AJA, Fasco/C1S30A, Hartland Controls/HCCY1NQ02AA303,Hartland Controls/HCCY1XQ02AA303

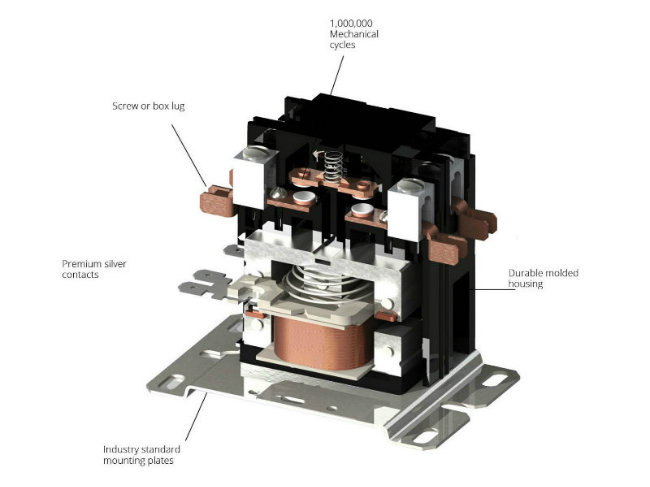

Advantages:
High arc-resistant phenolic resin material hold stationary terminals,positions actuator, and magnet/coil assembly.It has much stronger endurance and insulating ability than normal contactors .
The internal construction of the HCDP series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.
Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .

Features:

Meets The ARI 780/790 Standard

Universal metal mounting plate allows for complete ease of replacement

Long electrical life; tested to 250,000 cycles

Reliable mechanical life; tested to 1,000,000 cycles

EE magnet assembly assures optimal performance without sacrificing power consumption

Superior copper coil

Performance unaffected by mounting position

Flexible termination options suitable for various applications

Dust-free internal constructions

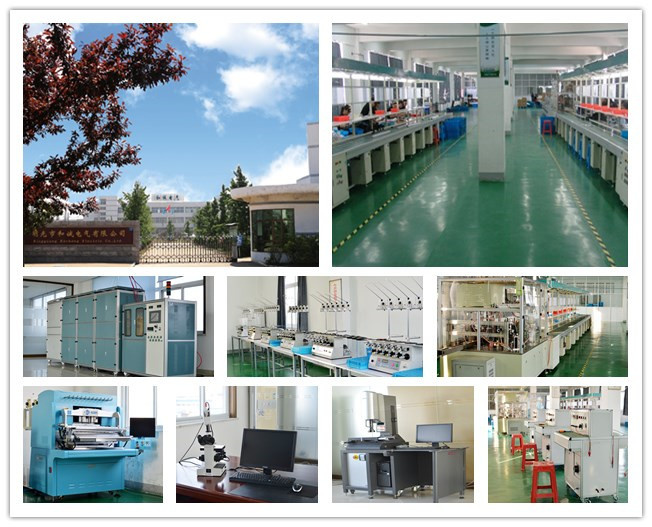

Workshop:

Certificates:

Contact Us:

Ms.Betty Hu

M:+8618267833685

24 hours online. Please feel free to contact me.

Prod Model:	HCDPY324075
Color:	Black
Certificate:	Ce, UL, CCC, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Delivery Time:	35 Days After Deposit

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
