| Prod Model: |
TPZ400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Range: |
0~1......4590kpa |
| Overpressure: |
1.5 F.S |
| Accuracy: |
0.5%F.S |
| Stability: |
0.1%F.S/Year, Max. 0.2%F.S/Year |
| Working Temp. (Degrees Celsius): |
-40~85 |
| Temp. Compensation (Degrees Celsius): |
-10~70 |
| Transmission Type: |
2-Wire or 3-Wire, as Required |
| Output Signal: |
4-20mA DC, 0~5V DC, 1-5V DC, 0~10V DC |
| Power Supply: |
10~30V DC |
| Pressure Type: |
Gauge, Sealed Gauge, Absolute |
Product Description

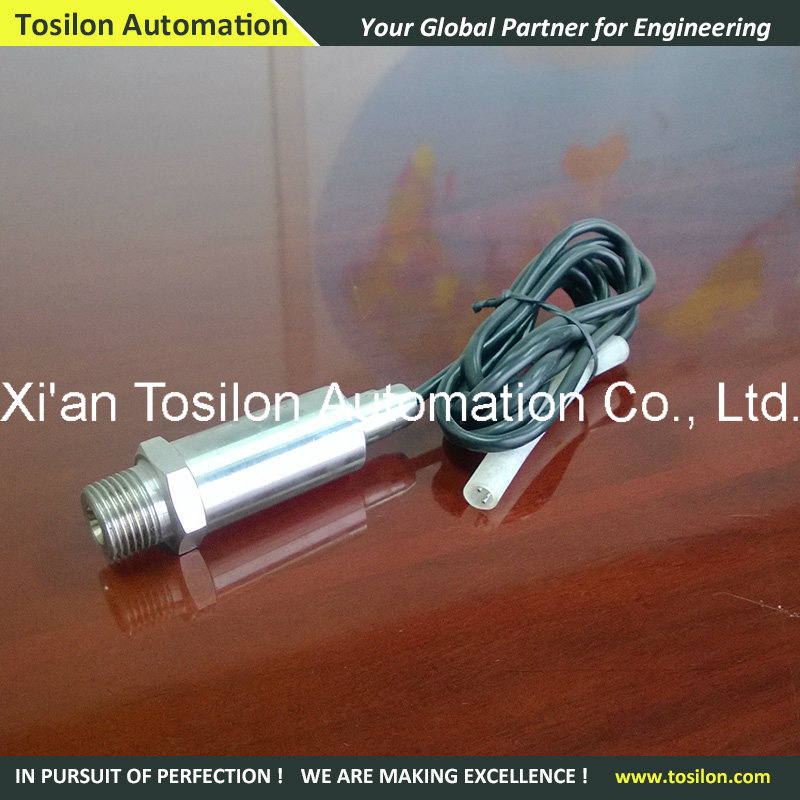

Tosilon Cummins Mini Ceramic Pressure Transducer for Boat Engine (CE, Ex Approved)
Design and Manufacturing According to CE Standard
Introduction
Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from German. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
Features
· Full stainless steel construction;
· Alarm Available (upper and lower value set);
· Pressure Buffer Connector;
· Electric connection optional;
· Pressure connection optional;
· Ceramic core and cell imported from German;
· CE approved
Outline Structure
Performance Parameters (For details, please contact Tosilon)
Pressure Range Overpressure
0~1......4590kPa 1.5 F.S
Accuracy Stability
±0.5%F.S 0.1%F.S/year, Max. 0.2%F.S/year
Working Temp. Temp. Compensation
-40 oC~85 oC -10 oC~70 oC
Transmission Type Output
2-wire or 3-wire, as required 4-20mA DC, 0~5V DC, 1-5V DC, 0~10V DC
Power Supply Pressure Type
10~30V DC Gauge, Sealed Gauge, Absolute
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Item | Description | Remark |
| Pressure Range | 0~1^^500mH2O | 1mH2O≈9.81kPa |
| Overpressure | 1.5 F.S | |
| Accuracy | ±0.5%F.S | |
| Stability | 0.1%F.S/year, Max. 0.2%F.S/year | |
Working Temp.
(Degrees Celsius) | -40~85 | -40~125can be customized |
Temp. Compensation
(Degrees Celsius) | -10~70 | |
| Media | Compatible with 1Cr18Ni9Ti | |
| Transmission Type | 2-wire | 3-wire | |
| Output | 4-20mA DC | 0~5V DC | 1-5V DC | 0~10V DC | |
| Power Supply | 10~30V DC | 8~30V DC | 11~30V DC | |
| Load Resistance | (U-10)/0.02(Ω) | >100kΩ | |
| Insulation | >100M Ω@50V | |
| Electrical Connection | Cable Connection IP68 | |
| Pressure Port | Submersible, G1/4, | As required |
| Pressure Type | Gauge, Sealed Gauge, Absolute | Response Time: 10ms | |
| electromagnetic compatibility | electromagnetic emission | Electromagnetic Sensitivity | |
| EN50081-1/-2 | EN50082-2 |
