Custom Resistive Linear Position High Repeatability Sensor for Wholesalers Wanted

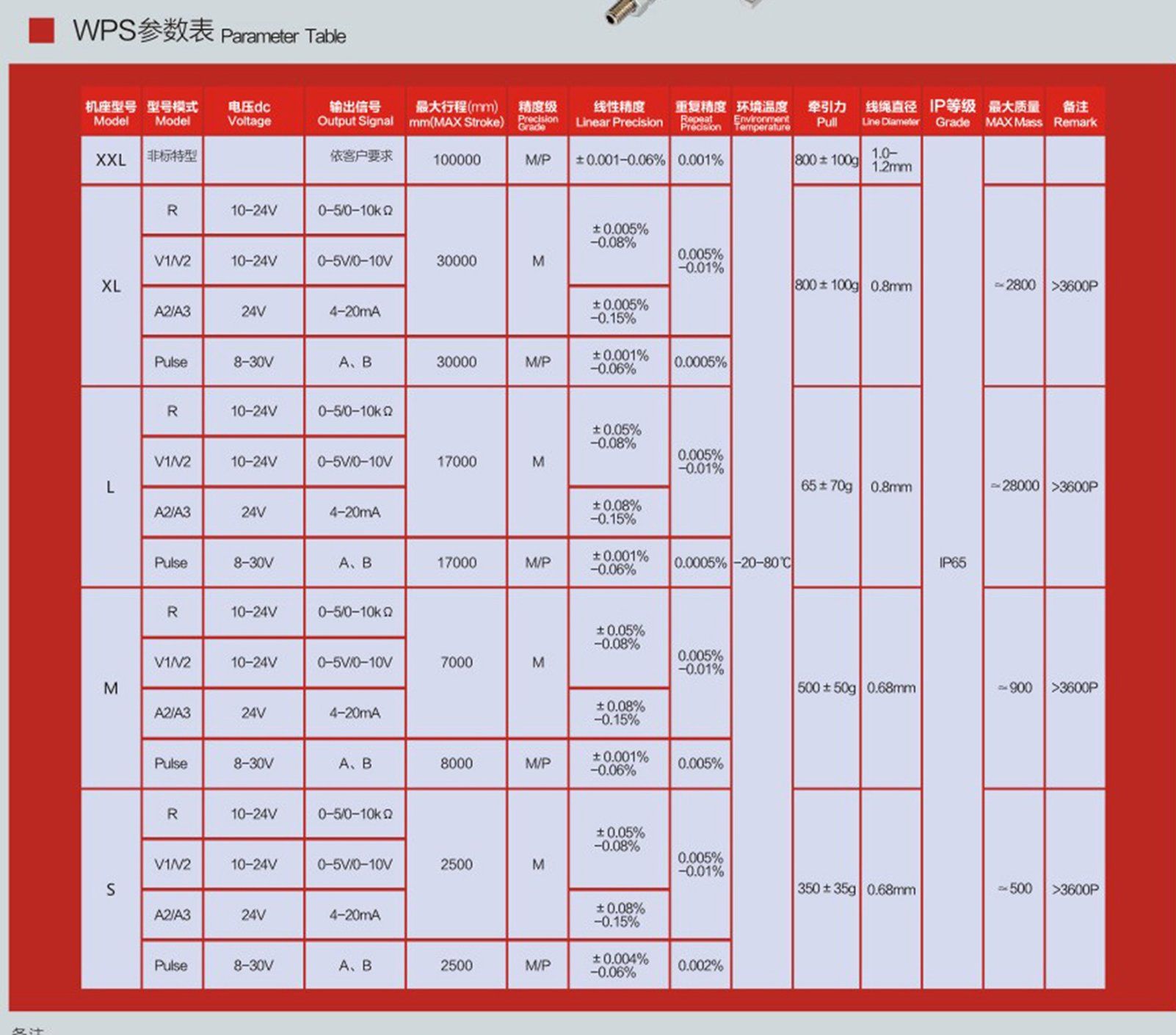

Modle	Max Stroke	IP Grade	Line Diameter	Environment Temperature
WPS	mm	IP	mm	ºC
XL	30000	65	0.8	-20~80

Product Feature:
Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
With fashion black box
Precious and not too clear

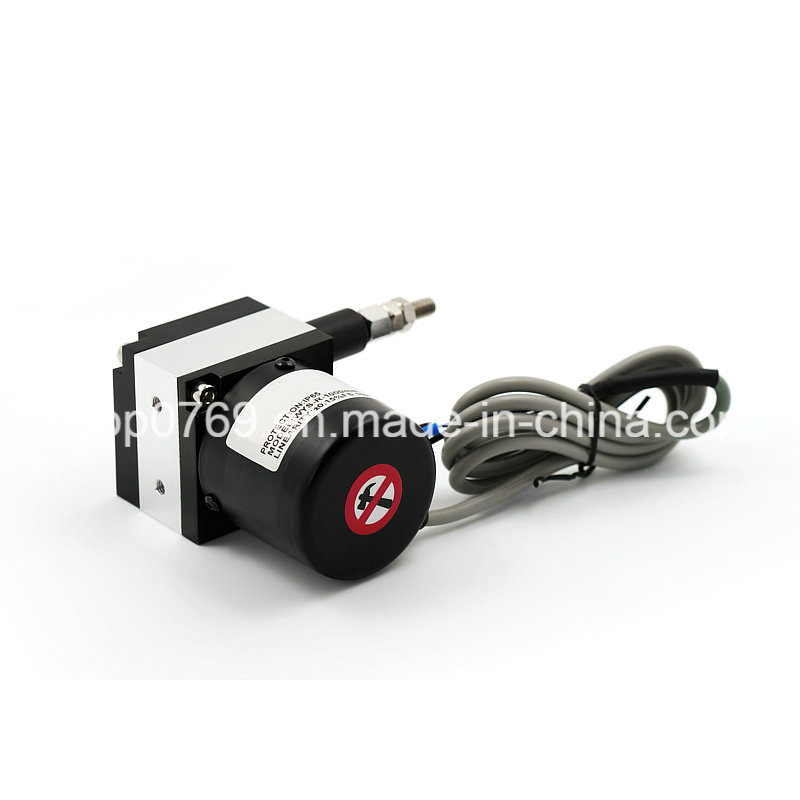

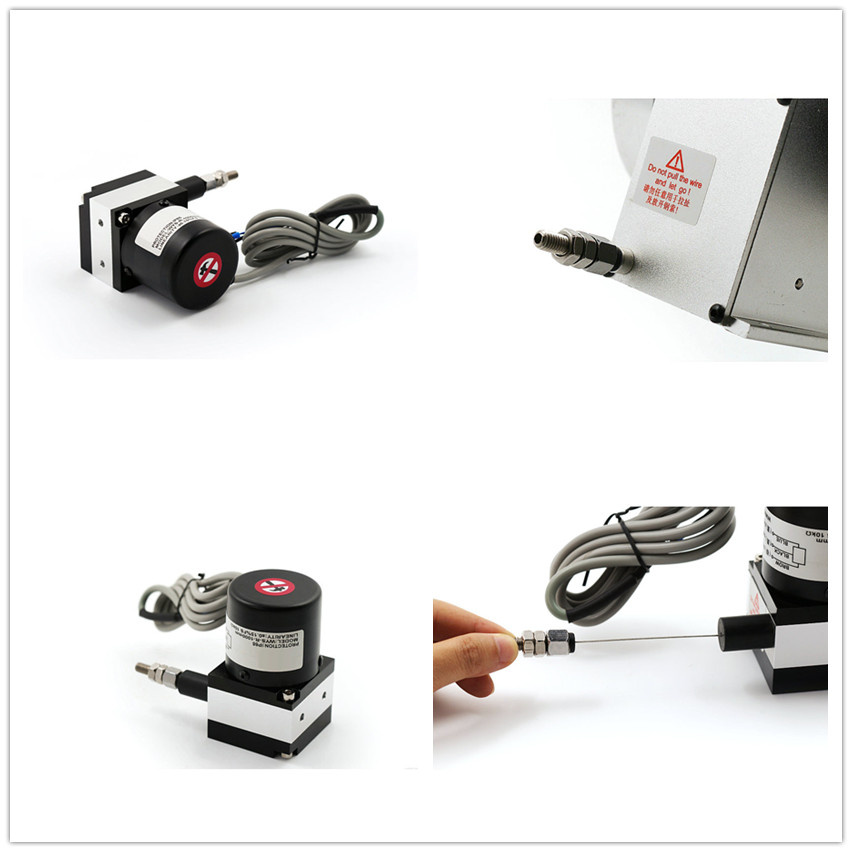

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.
13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder

pulled rope displacement sensor application Yu warehouse location positioning, reservoir dam protection, gate open degrees control, pressure mechanical, paper mechanical, textile mechanical, metal plate mechanical, packaging mechanical, printing mechanical, level control instrument, building mechanical, industrial robot, shot out machine, woodworking mechanical, Elevator, empty pressure compressor/hydraulic machine, height machine, X-Y axis and the other length displacement, liquid bit, related size measurement and location control.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Prod Model:	WPS-XL-V2
Voltage:	10-24V
Output:	0-5/0-10V
Warranty:	12months
Feature:	Linear Precision
Material:	Aluminum Alloy

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
