Cy Screened Control Wire Cable
| Price: |
US $ 0.3-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CY |
| Rated Voltage: |
300/500V |
| Refer Standard: |
BS6500, VDE0250,IEC60227 |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Flexible Cord |
| Application: |
Measuring, Controlling or Regulating Equipmen |
| Range Of Application: |
Measuring, Controlling or Regulating Equipmen |
| Brand: |
Jl |
Product Description

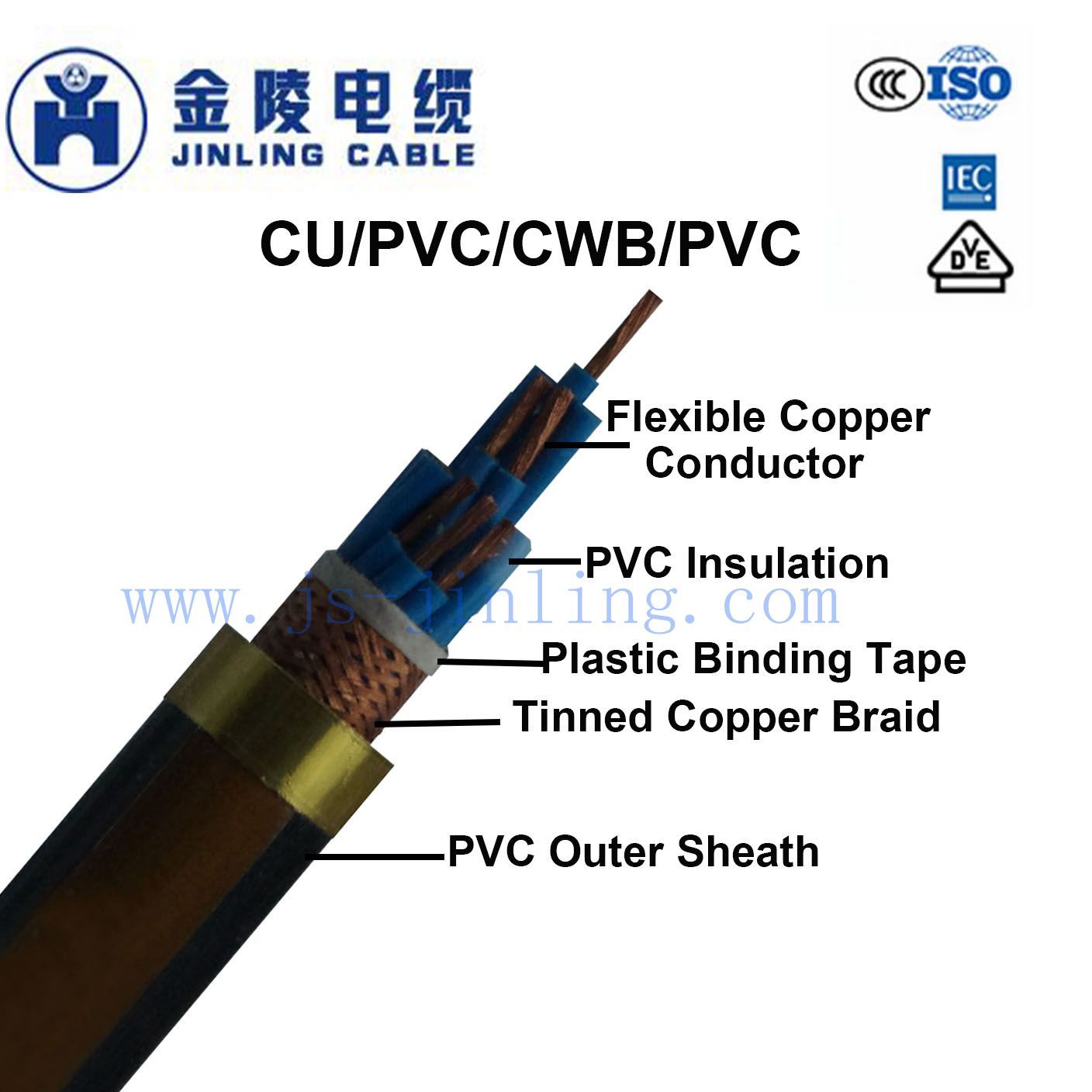

1.Structure:
Flexible Copper Conductor,PVC Insulation,Tinned Copper Braid,PVC Outer Sheath control Cable
2 Application
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units.Suitable for flexible use whentemporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or damp conditions indoors.
3 Standard
BS6500, VDE0250,IEC60227
4 Technical Characteristics
Coductor:Flexible Copper Conductor, Class 5
Working voltage: 300/500 volts
Test voltage: 2000 volts
Minimum bending radius: 10 x Ø
Temperature: -5º C to +70º C
Short circuit temperature: +160º C
Insulation resistance: 20 MΩ x km
5 Cable Parameter:
No. of Cores x
Nominal Cross
Sectional Area | Nominal
Overall
Diameter | Nominal Cable
Weight |
| No X MM2 | mm | kg/km |
| 2 x 0.50 | 5.4 | 45 |
| 2 x 0.75 | 6 | 54 |
| 2 x 0.75* | 5.4 | 47.4 |
| 2 x 1.00 | 6.2 | 60 |
| 2 x 1.00* | 5.9 | 57.4 |
| 2 x 1.50 | 6.8 | 70 |
| 2 x 1.50* | 6.6 | 74.4 |
| 2 x 2.50 | 8 | 104 |
| 3 x 0.50 | 5.8 | 53 |
| 3 x 0.75 | 6.3 | 65 |
| 3 x 0.75* | 5.4 | 57.8 |
| 3 x 1.00 | 6.5 | 73 |
| 3 x 1.50 | 7.2 | 90 |
| 3 x 1.50* | 7.5 | 100.1 |
| 3 x 2.50 | 8.6 | 140 |
| 4 x 0.50 | 6.3 | 63 |
| 4 x 0.75 | 6.8 | 77 |
| 4 x 0.75* | 6.5 | 73.6 |
| 4 x 1.00 | 7 | 89 |
| 4 x 1.50 | 7.8 | 108 |
| 4 x 1.50* | 8.2 | 123.3 |
| 4 x 2.50 | 9.4 | 173 |
| 4 x 4.00 | 11.1 | 236 |
| 4 x 6.00 | 12.8 | 339 |
| 4 x 10.00 | 16.1 | 502 |
| 4 x 16.00 | 19.2 | 771 |
| 4 x 25.00 | 20.2 | 1420 |
| 5 x 0.50 | 6.7 | 76 |
| 5 x 0.75 | 7.3 | 91 |
| 5 x 1.00 | 7.6 | 105 |
| 5 x 1.50 | 8.4 | 125 |
| 5 x 2.50 | 10 | 206 |
| 5 x 4.00 | 12.1 | 288 |
| 5 x 6.00 | 14.2 | 416 |
| 6 x 0.50 | 7.2 | 87 |
| 6 x 0.75 | 7.8 | 102 |
| 6 x 1.00 | 8.2 | 110 |
| 7 x 0.50 | 7.3 | 107 |
| 7 x 0.75 | 7.8 | 115 |
| 7 x 1.00 | 8.4 | 139 |
| 7 x 1.50 | 9.3 | 160 |
| 7 x 2.50 | 10.8 | 267 |
| 8 x 0.50 | 7.7 | 109 |
| 8 x 0.75 | 8.3 | 137 |
| 8 x 1.00 | 9 | 157 |
| 12 x 0.50 | 9.2 | 140 |
| 12 x 0.75 | 10.1 | 177 |
| 12 x 1.00 | 10.4 | 207 |
| 12 x 1.50 | 11.8 | 279 |
| 12 x 2.50 | 14.6 | 432 |
| 18 x 0.50 | 10.2 | 179 |
| 18 x 0.75 | 11.6 | 250 |
| 18 x 1.00 | 12.4 | 295 |
| 18 x 1.50 | 14 | 350 |
| 25 x 0.50 | 13.3 | 256 |
| 25 x 0.75 | 13.9 | 326 |
| 25 x 1.00 | 14.9 | 384 |
| 25 x 1.50 | 16.9 | 530 |
| 34 x 0.75 | 15.6 | 406 |
| 34 x 1.00 | 16.6 | 530 |
| 34 x 1.50 | 18.9 | 720 |
| 42 x 1.50 | 20.1 | 820 |
| 50 x 0.75 | 19 | 576 |
| 50 x 1.00 | 19.6 | 1020 |
