DC Rebound Displacement Sensor Power Supply 9-28V

Name: DC Rebound Displacement Sensor Power Supply 9-28V
Brand: all-electronics-online.com
SKU: 820185495
Availability: InStock
Rating: 4.5 (94 reviews)

Price:	US $ 120-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Lvdt
Dymatic Characteristics:	Max 10Hz
Feature:	High Pricision& Resolution
Voltage:	DC
Usage:	Position Displacement
Material:	Aluminum Alloy

Product Description

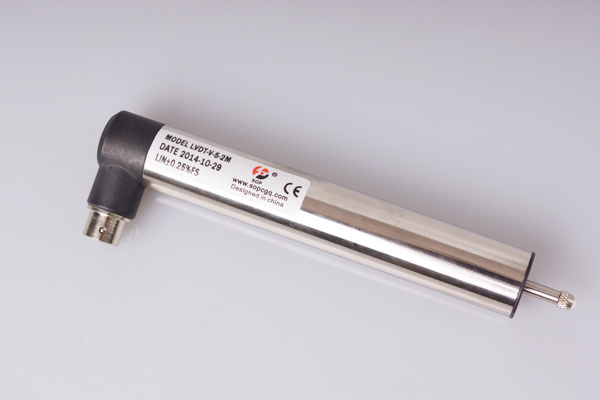

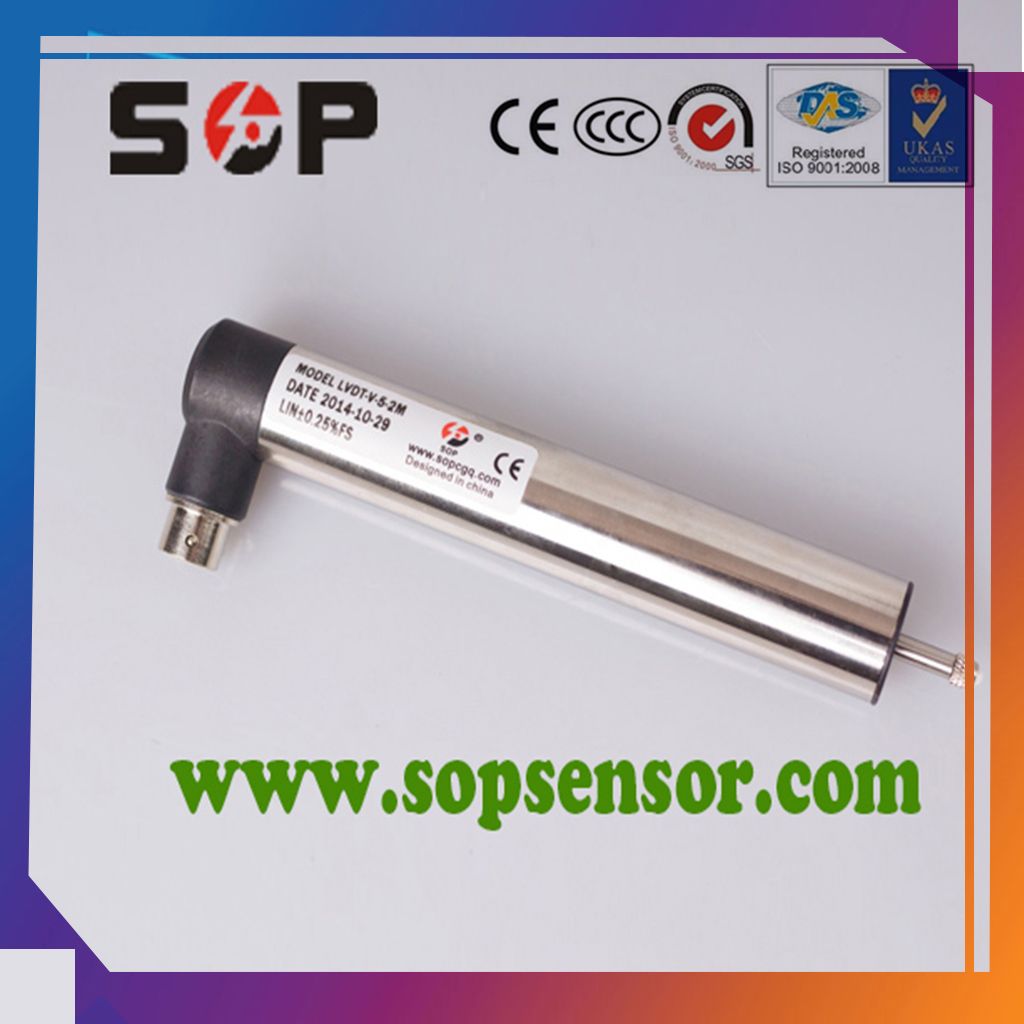

Dc Rebound Displacement Sensor Power Supply 9-28V

Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
engineering machinery, rubber machinery

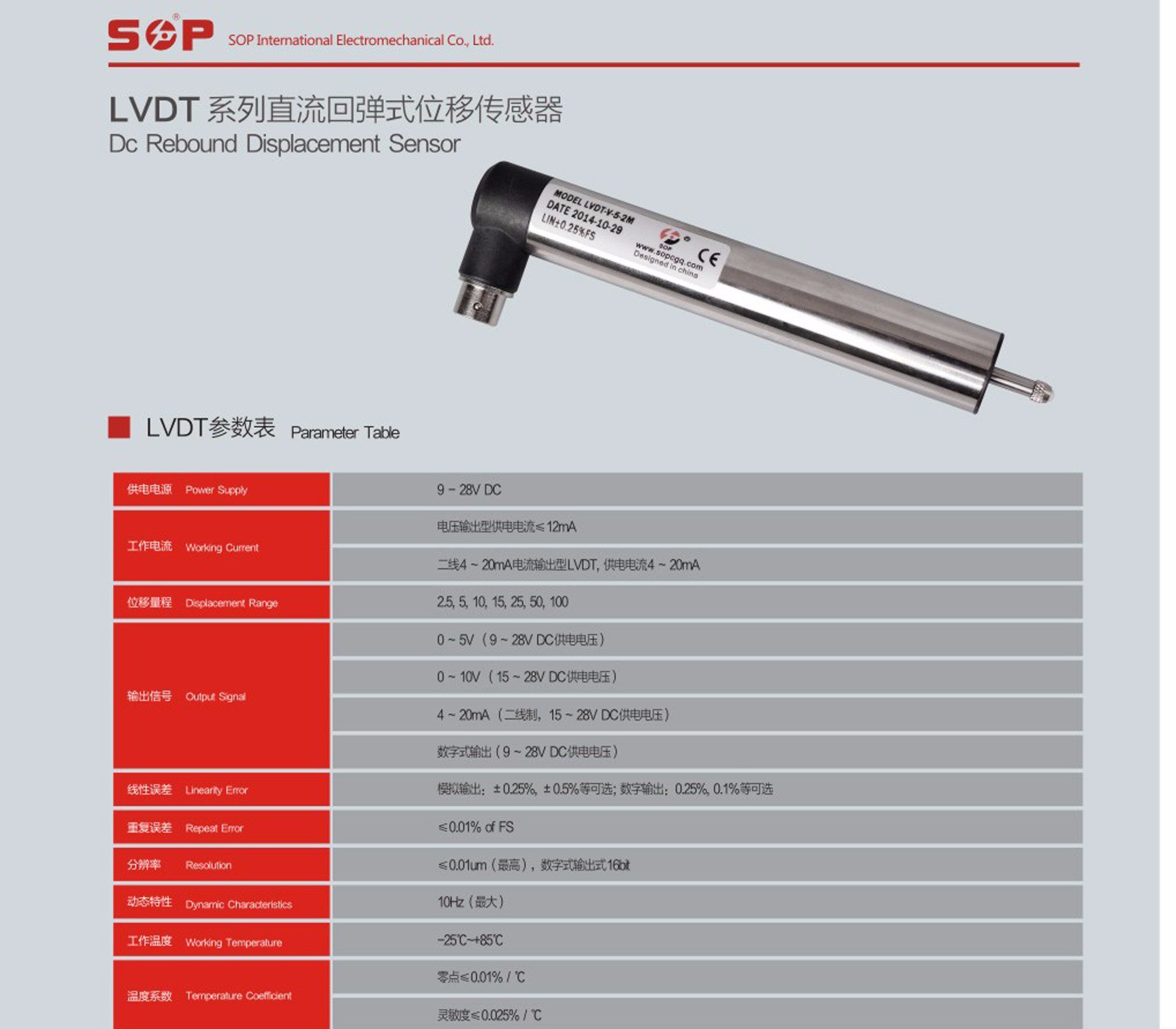

Power supply	9-28V DC
Working current	Voltage output model , supply current ≤12mA
Working current	Two wires4-20mA current output model, supply current 4-20mA
Displacement range(mm)	2.5,5,10,15,25,50,100
Output signal	0-5V( 9-28V DC supply voltage )
	0-10V(15-28V DC supply voltage )
	4-20mA(two wires , 15-28V DC supply voltage)
	Digital output (9-28V DC supply voltage)
Linearity error	Analog output:±0.25%,±0.5% or others, digital output:0.25%,0.1% or others
Repeat error	≤0.01%of FS
Resolution	≤0.01µm(most ),digital output: 16bit
Dynamic characteristics	10Hz (most )
Working temperature	-25°C~+85°C
Temperature coefficient	Zero poit ≤0.01%/°C
Temperature coefficient	sensibility≤0.025%/°C

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

Package:

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
