| Prod Model: |
DXP1010WUPS-10A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1000W |
| Surge Power: |
2000W |
| Output Waveform: |
Pure Sine Wave |
| Output Frequency: |
50/60Hz |
| High Volt Cut Off: |
>DC15V |
| Housing Material: |
Aluminum Alloy |
| Overload/Lowload Protection: |
Yes |
| Overvoltage/Lowvoltage Protection: |
Yes |
| UPS Function & Battery Charger: |
Yes |
| Overheat Protection: |
Yes |
Product Description

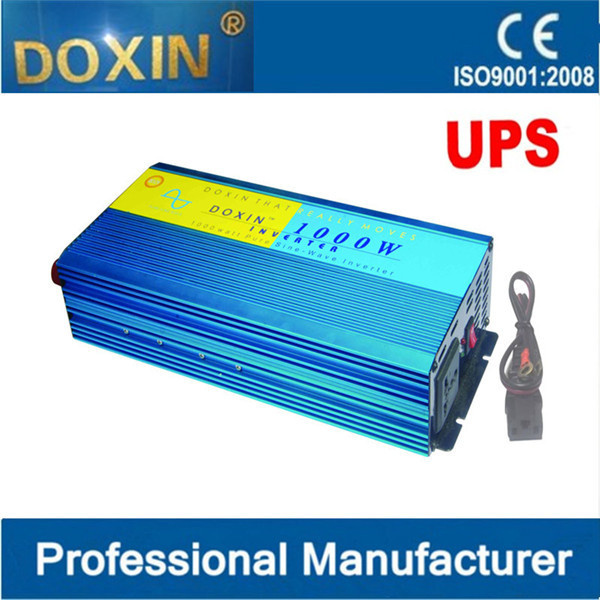

DC12V to AC220V 1000W pure sine wave inverter with UPS function
This is not only a power inverter, it is a 12V battery charger and an automatic UPS
UPS =(Uninterruptible Power System )
When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.
Feature:
1. Auto battery charging
2. Universal Protection Circuit: Over-Voltage, thermal protection, earth fault protection, overload protection, short circuit protection.
3. Inverter and charger indicator: Fully charged, Public Power, Inverter fault.
4. Dual Switch (Inverter, Charger) supporting battery deep discharge
5. Transfer time between bypass model and inverter mode less 12Ms, no influence in appliances work when public power off.
6. Two power switch controller(inverter switch, charger switch), so that it can support battery deep discharge.
7. PWM high-frequency technology - small size but big power.
8. Fast Charging: 10A/15A charging AMP
9. Quiet Operation: Fan move only when necessary
10. High surge and efficient
11. Battery voltage display - so you know battery level anytime
12. AC voltage display
All Protection:
Over-load
Over-voltage
Low-voltage
Buzzer Alarm
Short-circuit
Over-temperature
Voltmerter LED Display
Applications:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
1. It is well suitable for supplying power for your notebook, digital camera, video camera and other appliances when you travel on the vehicle, camp, boat and other outside activities.
2. It can also be widely used in the districts with unstable power or supplied power by solar or wind energy sources.
3. Besides, it supplies a stable power for household appliances, such as TV, computer, DVD, VCD, satellite receiver, printer, fluorescent lamp, cooler, stereo, fan, electric drill, drill press, lighting, motor, game player, etc.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Solar charge controller
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
| Model No. | DXP1010WUPS-10A |
Input voltage range:
| DC10-15V
|
| Output voltage: | AC220± 5%
|
| Output frequency: | 50Hz± 2Hz
|
| Electric fuse: | 10A/15A/20A/40A/70A
|
| Under voltage alarm (unloaded): | DC10.4-11.0V
|
| Low voltage shut-down range (unloaded): | DC9.7-10.3V
|
| Over voltage shut-down range (unloaded): | DC14.5-15.5V
|
| Current consumption (unloaded): | <0.3A
|
| Conversion efficiency: | > 90%
|
| Lasting output power: | 1000W
|
| Maximum Instant power(peak power): | 2000W
|
| Overload protection | 1000W - 1200W |
| Temperature protection | 60° c --+70° c |
| Output waveform: | Modified sine wave
|
| Size: | 370*150*70(mm)
|
| Weight: | 3.6kg
|
