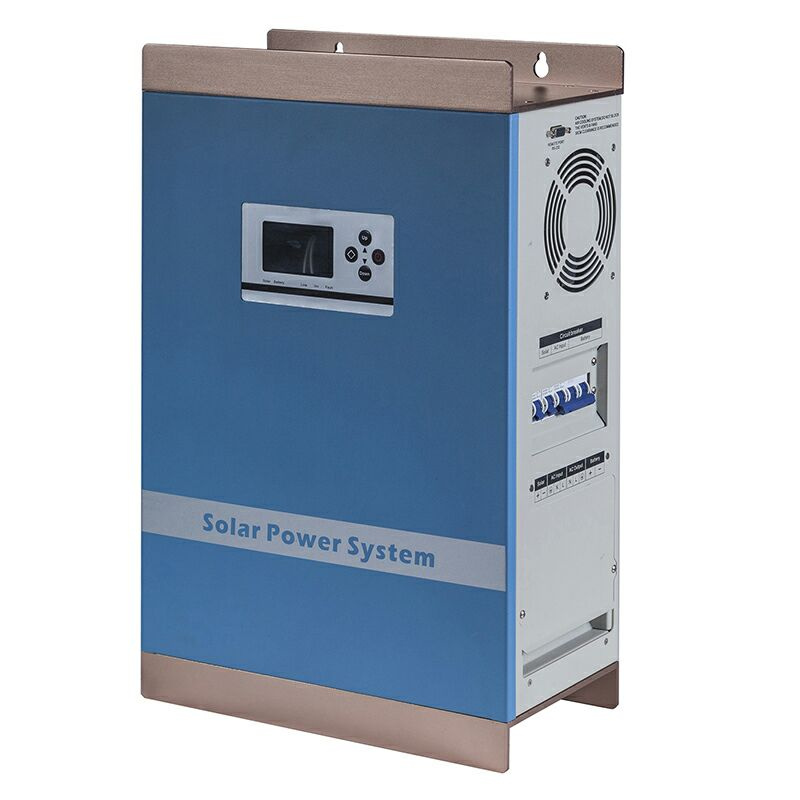

DC48V 3000W low frequency hybrid inverter
Feature:1.Combine with solar power controller and inverter hybrid function.2.Completely controlled by CPU, LCD displays.3.Inverter use ring transformer, temperature control for the cooling fan, light weight and high efficiency,Double fuse protection4.Battery preferred mode/city power preferred mode/energy saving mode are all settable5.High charger current. solar charge current is 40-60A,city power charge current is 0A-30A for settable.6.Can start without battery, wide range of input voltage(145-275VAC), accurate output and full automatic voltage stabilization.7.have bypass function and AC charger (UPS function)8.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.9.Welcome to join us as our agents/distributors from all over the world! Notice Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity !
Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electrical appliances.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products ,We produce electronics products more than 10 years .We have professional development team.We pursues to establish the culture of "quality first ,reputation best ".
Product category
car inverter
pure sine wave invertre
modify sine wave inverter
solar energy power source
solar charge controller
Our products usually are exported big quantity in to Europe ,USA,African ,Russia ,Australiaetc. and our power inverter serials enjoy better reputation .With reliable quality and stable performance.
Rated power(W) | 1000W | 2000W | 3000W | 5000W | 6000W |
Rated DC voltage(V) | 24V | 48V |
Line input | Input voltage(V) | 145-280V, 90-127V |
Charge current(A) | 10-30A |
Inverter output | Output voltage(V) | 110V or 220VAC±5% &5V,12V DC |
Output frequency | 50Hz/60Hz±1% |
Wave form | Pure Sine Wave, THD<4%(Full Load) |
Solar input | Maximum voltage(V) | 42V or 88V or 176V |
Rated power(Wp) | 1500 | 2000 | 3000 | 5000 | 6000W |
Solar Controller | Charge current(A) | 60A |
MPPT range(V) | 24v(20-34)48v(40-68) |
Charging efficiency | 90%-95%, Peak on 97% |
Other | Over charge protective voltage of battery(V) | 24V(28.6),48V(57.2) |
Over charge recover-voltage of battery(V) | 24V(27.4),48V(54.8) |
Voltage drop between solar module and battery(V) | ≤0.5V |
Voltage drop between loads and battery(V) | ≤0.25V |
Start speed of cooling fan | Have |
Environment Humidity | 0-90% Maximum,non-condensable |
Protective Functions | Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules |
Control method | MPPT |
Size &package size:D*W*H(mm) | 350*175*550mm/445*245*650mm |
N.W&G.W(kg) | 20KG/23KG | 25KG/28KG | 30KG/33KG | 32KG/35KG |
For more info you need, pls contact us anytime.
