Definite Purpose Contactors 2 Pole 40A for Air Conditioner and Other Electrical Loads.

Name: Definite Purpose Contactors 2 Pole 40A for Air Conditioner and Other Electrical Loads.
Brand: all-electronics-online.com
SKU: 818497975
Availability: InStock
Rating: 5 (40 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

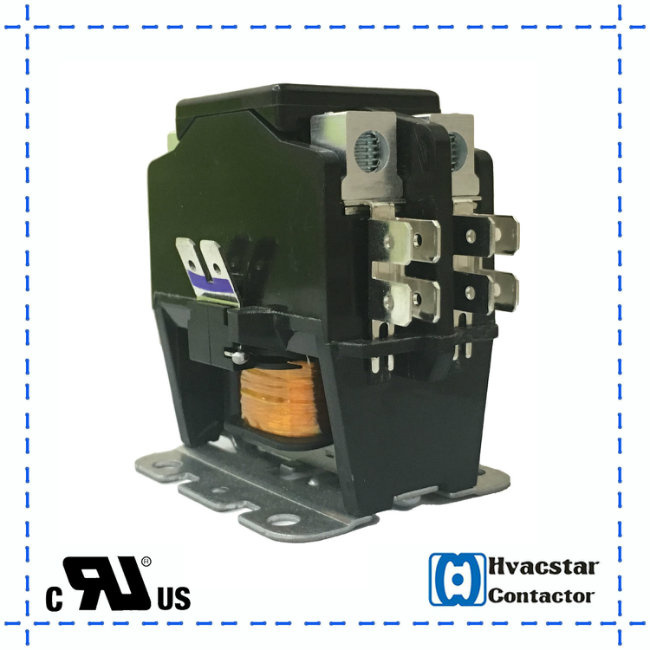

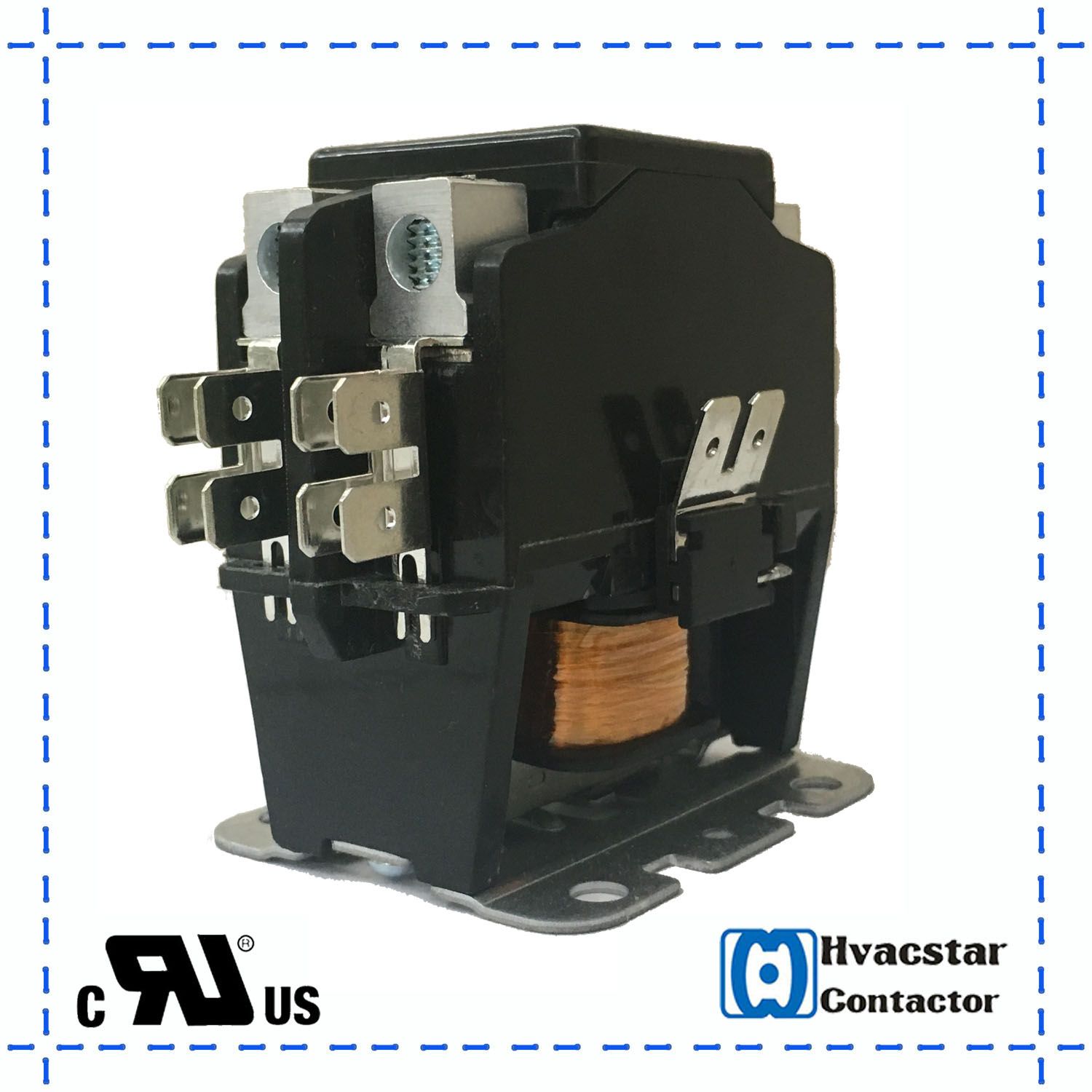

Definite Purpose AC Contactor 2 pole 40 FLA 24V

Specifications:

FLA	120V	240V		480V		600V		Non Inductive Amps	Poles
	Hp	LRA	Hp	LRA	Hp	LRA	Hp
50	3	300	10	300	-	200	-	63	2
	-		15		30		30		3
60	5	360	10	300	-	240	-	75	2
	-		20		40		40		3
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc.
Replaces:Siemens/45EG10AJA, Fasco/C1S30A, Hartland Controls/HCCY1NQ02AA303,Hartland Controls/HCCY1XQ02AA303

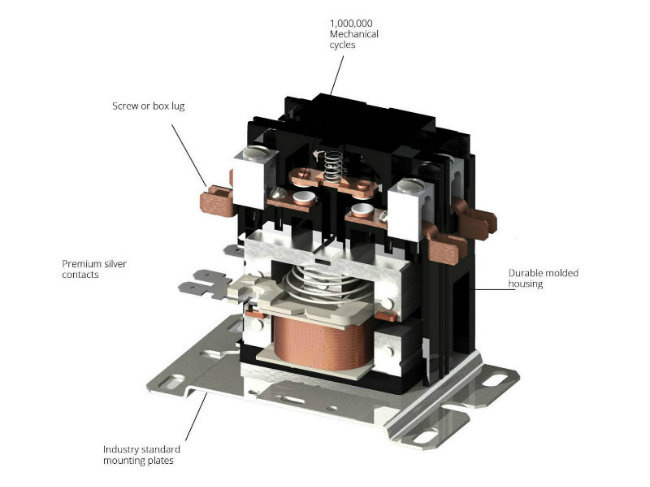

Features:

Compact size
Interchangeable mounting on durable metal back plate
Optional DIN rail mounting
Weld-resistant silver cadmium oxide contacts
Reinforced thermoset polyester housing
Quiet Operation thanks to cushioned coil and precision fit assembly
Snap-on electrical/mechanical interlocks
Visual contact position indication
Power terminations options:
Lugs(standard)
SEMS clamp
Binding head screws
Quick connects
Class F coil insulation
Replacement coils and contact kits is available
Meets: ARI-780 UL FILE E246810 CSA FILE 256361

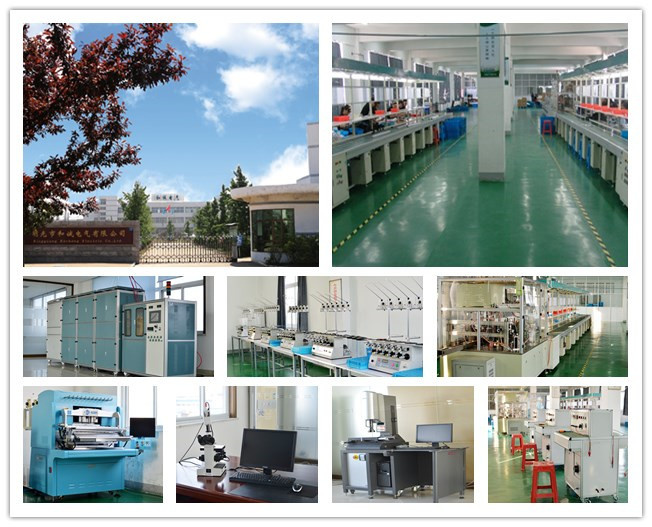

Workshop:

Certificates:

Contact us:

Ms.Betty Hu

M:+86 18267833685

24 hours online. Please feel free to contact me.

Prod Model:	HCDPY22440
Color:	Black
Certificate:	UL, CCC, Ce, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Delievery Time:	35 Days After Deposit

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
