Door Usage Magnetic Door Contact Switch Reed Switch Br-1060

Name: Door Usage Magnetic Door Contact Switch Reed Switch Br-1060
Brand: all-electronics-online.com
SKU: 699041672
Availability: InStock
Rating: 4.3 (102 reviews)

Price:	US $ 0.75-0.90/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

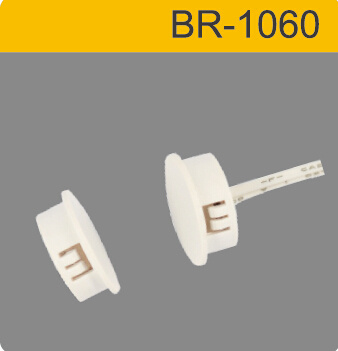

SENTEK Magnetic Contact Switch recedded mount BR-1060

* 5/8" diameter miniature flush mounting
* press to fit
* Standard 18"#22AWG Leads
* Swith or Magnet are available seperately
*Special leads on request
* correct orientatioin of magnet and contact is required for operation
* Colors: White, Brown, Grey

For more information, pls contact us freely!

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BR-1060	Closed	N/O	5/8(15)	0.8(20)	0.200	10	100	0.5

Prod Model:	BR-1060
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire:	18"#22 AWG
Color:	White Brown Grey
Install:	Surface Mount

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.
