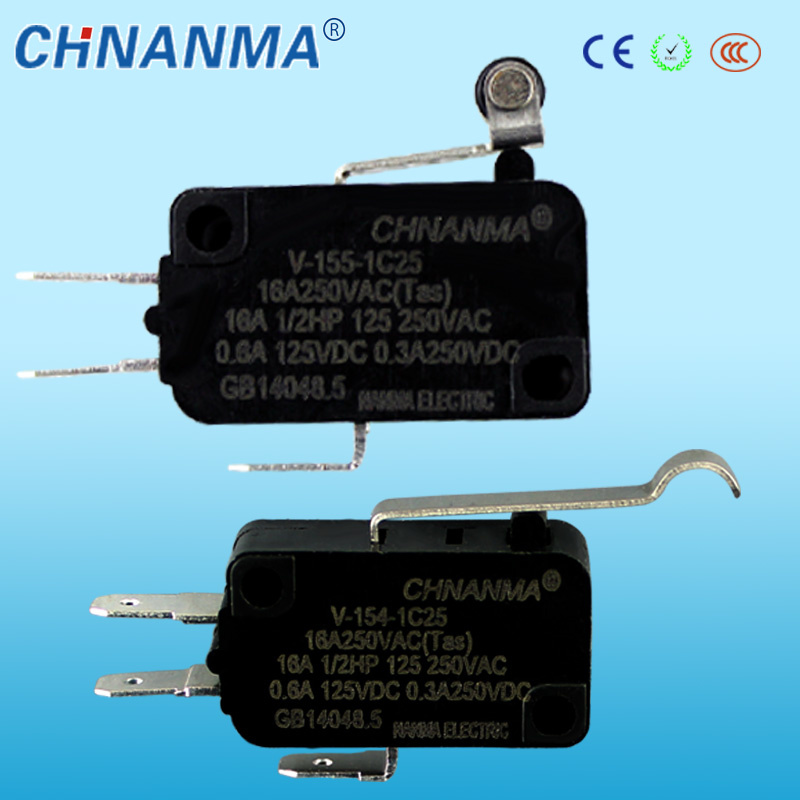

Double Micro Switch 250V AC Micro Switches

Name: Double Micro Switch 250V AC Micro Switches
Brand: all-electronics-online.com
SKU: 699285342
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 0.33-0.35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1.Characteristics and Using:
Adopt thermosetting plastic or thermoplastic;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

2.Specification

Rating		3A,8A,16A/250VAC,125VAC 0.6A/125VDC 0.3A/250VDC
Initial contact resistance		≤ 25mΩ
Initial insulation resistance ( At 500V DC)		≥ 100mΩ
Dielectric strength	Between non-consecutive terminal	1000Vrms,50/60Hz,1min
	Between current carrying and non-carry metal parts	1500Vrms,50/60Hz,1min
	Between ground and each terminal	1500Vrms,50/60Hz,1min
Max.shock resistance	Mechanical durable	1000m/s2
	Malfunction	300m/s2
Vibration resistance		10-55Hz , 1.5mm double amplitude
Expected life	Mechanical	20000000
	Electrical	100000
Ambient temperature		-25 to +85 °C
Ambient humidity		90%RH max
Operating frequency	Mechanical	60 times/min
	Electrical	25 times/min
Operation speed		0.01mm-1m/s

3.Operating Characteristics
Model NO.V-152-1C25

Operation speciality	V-21-1-6	V-16-1-5

OF	250g	125g
RF	25g	14g
PT	4.0mm
OT	1.6mm
MD	1.5mm(0.8mm)
OP	15.2±1.2mm

4.Why choose our switches

1) We can provide you with different types of micro switches for your selection.

2) We can offer good quality electric life 500, 000-1, 000, 000times.

3) Various operating force, height and color for one switch for your choice.

4) Safety, on-time delivery, excellent quality with competitive price.

5) ODM&OEM professional design.

5.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.

Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.

Q3:Can you give me samples to test?
Answer:Yes

Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!

Prod Model:	NM-V-152-1C25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Life:	1,000,000times Above
Electrical Life:	100,000times Above
Max. Current:	20A
Max. Voltage:	250VAC
Color:	Black
Operating Temperature:	-25-80c
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Coffee Machine
Brand:	Chnanma
