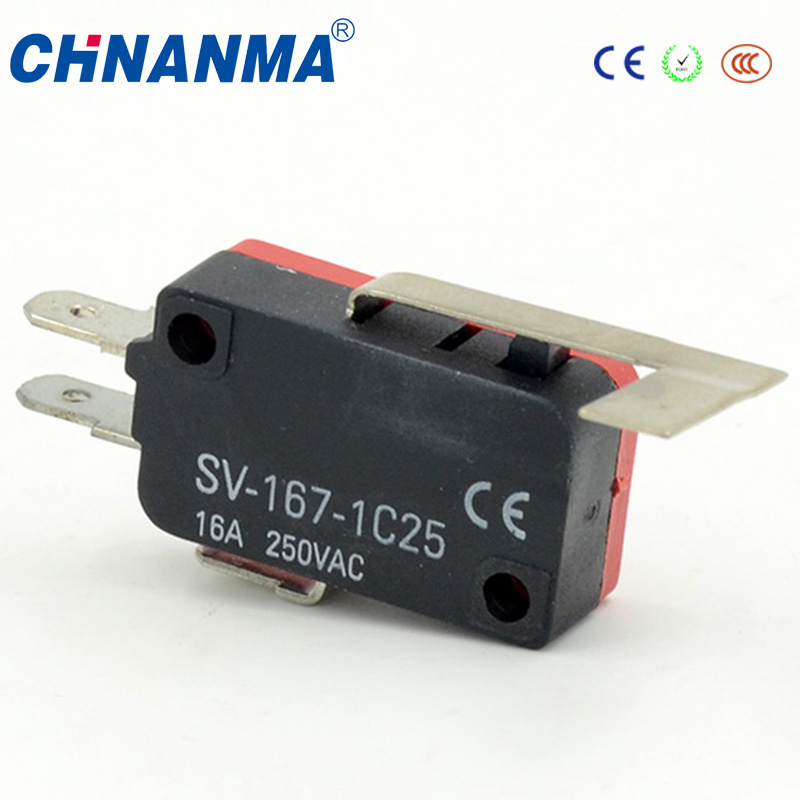

Prod Model: |
NM-167-1C25 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mechanical Life: |
1,000,000times Above |
Electrical Life: |
100,000times Above |
Max. Current: |
20A |
Max. Voltage: |
250VAC |
Color: |
Black |
Operating Temperature: |
-25-80c |
Pressing Type: |
Push-Button |
Protection: |
Waterproof |
Size: |
Small-Sized |
Environment: |
﹤250℃ |
Breaking Capacity: |
Micro-Current |
Breaking Form: |
Single Type |
Application: |
Game Machine |
Brand: |
Chnanma |
Product Description
1.Characteristics and Using:
Adopt thermosetting plastic or thermoplastic;
Small contact gap,snap action,high sensitivity and small operating travel;
Variety of levers;
Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
2.Specification
Rating | 3A,8A,16A/250VAC,125VAC 0.6A/125VDC 0.3A/250VDC |
Initial contact resistance | ≤ 25mΩ |
Initial insulation resistance ( At 500V DC) | ≥ 100mΩ |
Dielectric strength | Between non-consecutive terminal | 1000Vrms,50/60Hz,1min |
Between current carrying and non-carry metal parts | 1500Vrms,50/60Hz,1min |
Between ground and each terminal | 1500Vrms,50/60Hz,1min |
Max.shock resistance | Mechanical durable | 1000m/s2 |
Malfunction | 300m/s2 |
Vibration resistance | 10-55Hz , 1.5mm double amplitude |
Expected life | Mechanical | 20000000 |
Electrical | 100000 |
Ambient temperature | -25 to +85 °C |
Ambient humidity | 90%RH max |
Operating frequency | Mechanical | 60 times/min |
Electrical | 25 times/min |
Operation speed | 0.01mm-1m/s |
3.Operating Characteristics
Model NO.V-152-1C25
Operation speciality | V-21-1-6 | V-16-1-5 |
|
OF | 250g | 125g |
RF | 25g | 14g |
PT | 4.0mm |
OT | 1.6mm |
MD | 1.5mm(0.8mm) |
OP | 15.2±1.2mm |
4.Why choose our switches
1) We can provide you with different types of micro switches for your selection.
2) We can offer good quality electric life 500, 000-1, 000, 000times.
3) Various operating force, height and color for one switch for your choice.
4) Safety, on-time delivery, excellent quality with competitive price.
5) ODM&OEM professional design.
5.Customer's questions
Q1:How about the delivery time?
Answer:It's depends on the quantity, for example, 10000PCS need to OEM,
delivery time is 3-7 days.
Q2:What quality you can offer to us?
Answer:We now can do 1/2 years warranty, during the warranty time we can exchange all defective products from customers for free.
Q3:Can you give me samples to test?
Answer:Yes
Q4:What's you MOQ?
Answer:MOQ 2500PCS, mixed order acceptable, welcome trial order.
More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
