Electrical 3phase 24V Coil 220V AC Coil Motor Control 9-95A DC Contactor
Price: |
US $ 8.6-13.2/Piece |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,D/P |

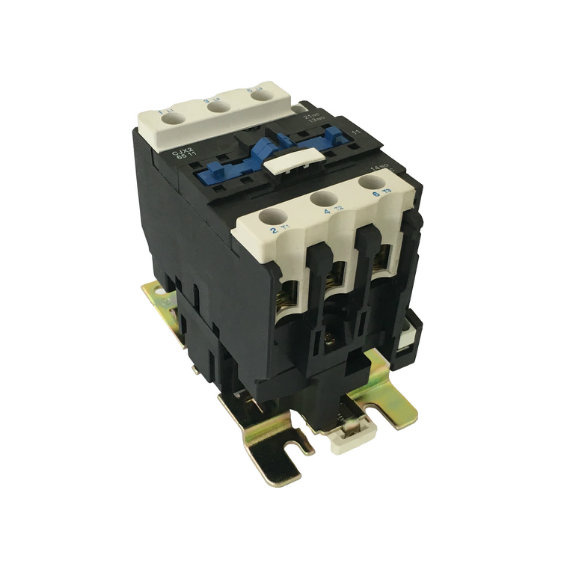

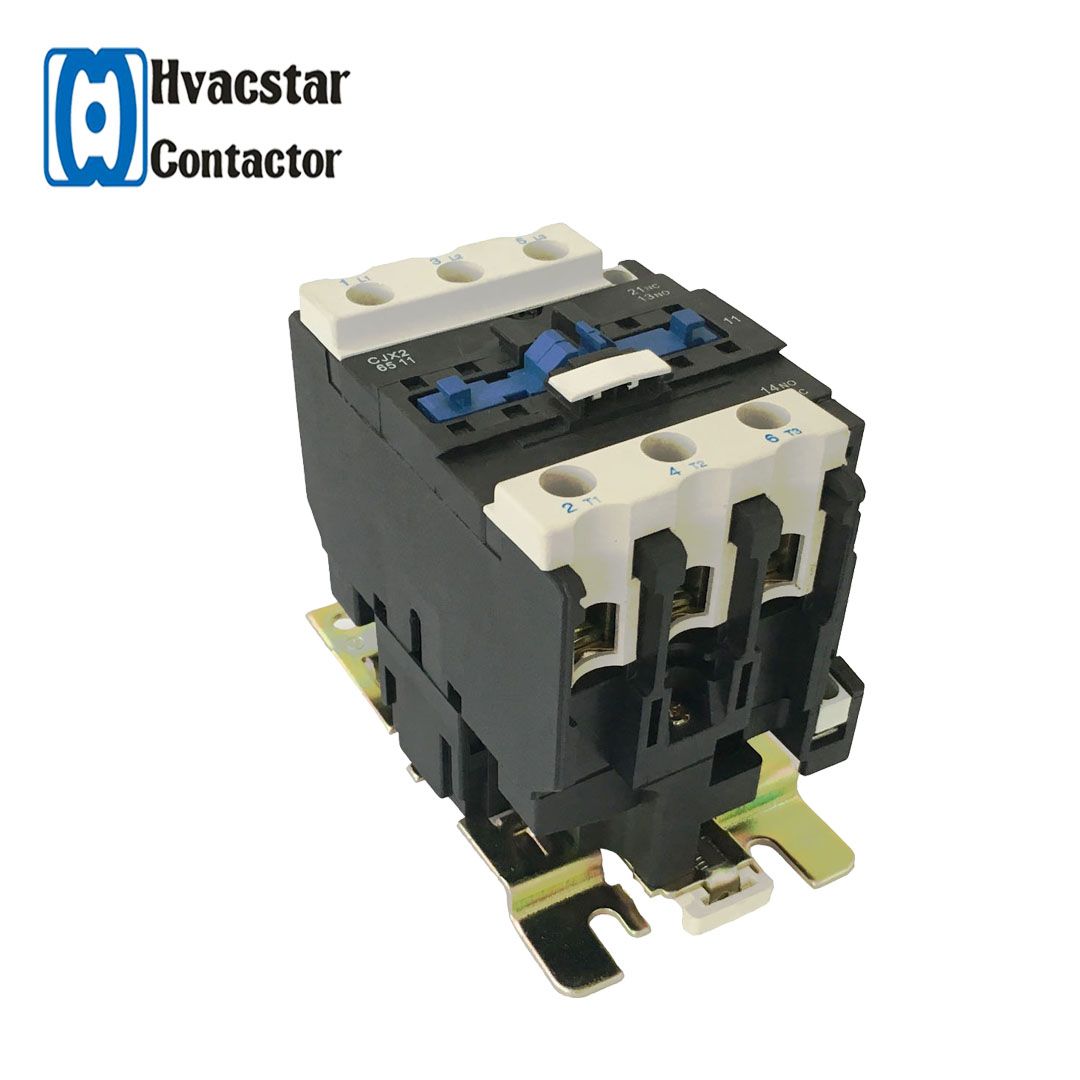

HVACSTAR CJX2-6511 AC Contactor 3p AC-3 220V380V/660VProducts Application
CJX-2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V.
AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & machine interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC60947-4, GB14048.4
SpecificationType | Amax | Bmax | Cmax | a | b | Φ |
CJX2-9 | 47 | 76 | 82 | 35 | 50 | 4.5 |
CJX2-12 |
CJX2-18 | 87 | 60 |
CJX2-25 | 57 | 86 | 95 | 40 | 50 | 4.5 |
CJX2-32 | 100 | 60 |
CJX2-40 | 77 | 129 | 116 | 40 | 105 | 6.5 |
CJX2-50 |
CJX2-65 |
CJX2-80 | 87 | 129 | 127 | 40 | 105 | 6.5 |
CJX2-95 |
Matching Coil VoltsVoltage volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 660 |
50HZ | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60HZ | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60HZ | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
FAQ:
Q1: Can I get a sample for testing?
A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q6: How about delivery time of the order?
A: 15-20 days after deposit.
Q7: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy .
WHY CHOOSE US:
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing &export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company
Contact Us:
We hope we can be your honest supplier in china, in case we do not have chance to serve you in your business, we hope we can be good friends.Ms.Betty Hu |
M:+86 18267833685 |
24 hours online. Please feel free to contact me. |
Prod Model: |
CJX2-6511 |
Color: |
Black&White |
Application: |
Refrigeration, Air Conditioning and Heating |
Temparature: |
-5°c~40°c |
Coil Frequency: |
50/60Hz |
Life Time(Mechanical): |
10 Million Times |
Life Time (Electrical): |
1 Million Times |
Standard: |
IEC60947-4, GB14048.4 |
Other Services: |
ODM OEM |
Insulation System: |
Class F-155 |
Number Of Contact: |
3p+No+Nc |
Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.
From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.
We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.
If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
