Electronic Mini Analog Oil Level Meter 4-20mA
| Price: |
US $ 100-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

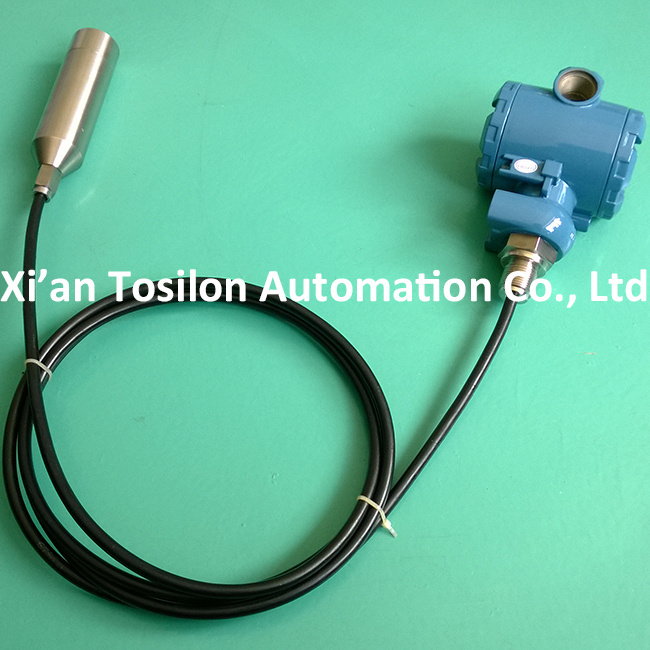

Tosilon Electronic Mini Analog Oil Level Meter 4-20mA (CE, Ex Approved)Design and Manufacturing according to CE StandardIntroduction TLB4700 level transmitter is the full stainless steel construction and full-sealed submersible intelligent level transmitter with high accuracy. It uses highly reliable and stable pressure sensor, intelligent processing circuit, precise digital temperature compensation and linearity correction technics for production. The water-proof cable connects with housing sealed, with vented tube putting in, the transmitter could be used in the water or liquid in a long time.
Integrated construction and standard output signal could provide easy operation and good automatic control. With 2-wire working, compact size, light weight and easy installation and operation, it is widely used for industry field instead of normal 2-wire 4~20mADC analog output transmitter.
Features· 4~20mADC 2-wire current output;
· Digital temperature compensation and linearity correction;
· RS485 communication interface(Custom or MODBUS protocol) or HART communication protocol (optional);
· Netting application;
· Full stainless steel construction, compact size, light weight;
· Special requirement available;

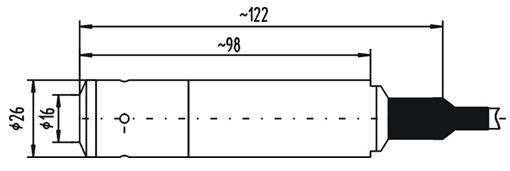

· RoHS Certificate ApprovedOutline Structure
Performance Parameters (For Details, please contact Tosilon)
Range(mH2O) Overpressure(mH2O)1 2 5 10 20 50 100 200 5 10 15 30 50 100 150 300Total accuracy±0.075%FS (min.) ±0.1%FS (typ.) ±0.25%FS(max.)
Compensation temp.(oC) Operation temp.(oC)-10~70 -10~80Diaphragm Housingstainless steel 316L stainless steel 1Cr18Ni9TiO-ring WeightViton 160gApplicationWater Treatment, Oil Industry, etc. For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Prod Model: |
TLB4700 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range(Mh2o): |
1 2 5 10 20 50 100 200 |
| Overpressure(Mh2o): |
5T10T15T30T50T100T150T300 |
| Total Accuracy: |
0.075%Fs (Min.)0.1%Fs (Typ.), 0.25%Fs(Max.) |
| Compensation Temp. (Degrees Celsius): |
-10~70 |
| Operation Temp. (Degrees Celsius): |
-10~80 |
| Diaphragm: |
Stainless Steel 316L |
| Housing: |
Stainless Steel 1Cr18Ni9Ti |
| O-Ring: |
Viton |
| Weight: |
160g |
| Application: |
Water Treatment, Oil Industry, etc. |
| Material: |
Ss360L |
