Encapsulated Light Dependant Resistor Ldr Photo Cell (HW-MJ6558)

Name: Encapsulated Light Dependant Resistor Ldr Photo Cell (HW-MJ6558)
Brand: all-electronics-online.com
SKU: 788848125
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	US $ 1.03-1.15/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

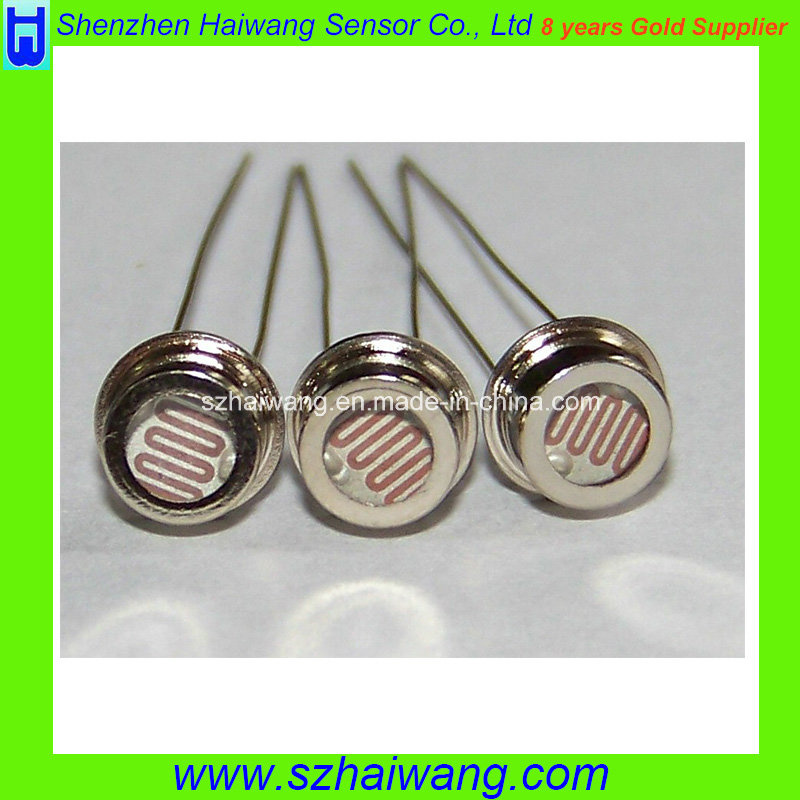

Encapsulated Light Dependant Resistor LDR Photo Cell (HW-MJ6558)

Specifications
Good reliability Small volume
High sensitivity
Fast response
Good price

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.

Performances and Features
Coated with metal case
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic

Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector

-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry

Technical parameter for 6.5mm photocell sensor

Specification	Type	Max Voltage (VDC)	Max power (mw)	Environmental temperature	Spectrum peak value (nm)
φ6.5 series with metal shell seal	MJ5510	150	90	-30~+70°C	550
	MJ5515	150	100	-30~+70°C	550
	MJ5525	150	100	-30~+70°C	550
	MJ5558	150	100	-30~+70°C	550

Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Response time (ms)		Illuminance resistance characteristic
Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Increase	Decrease	Illuminance resistance characteristic
φ6.5 series with metal shell seal	5-10	0.5	0.6	30	30	2
	10-30	4	0.7	30	30	3
	30-50	10	0.75	30	30	4
	50-100	20	0.85	30	30	4

About Haiwang
Shenzhen Haiwang Sensor Co., Ltd is specialized in developing, manufacturing and export of photo resistor, thermisters, sensors, optical lenses and other sensitive components over 12 years.
Our products include photoresistance, photosensitive sensor, thermistor, pyroelectric infrared sensor,
infrared induction IC, fresnel lens, LED lens and other related sensitive components.

Prod Model:	HW-MJ6558
CDS Photoresistor:	Ldr
Size:	6.5mm
Max.Voltage:	150V
Rated Power:	100MW
Max Power Consurrption:	100MW
Environmental Temperature:	-30~+70
Spec Trum Peak Value:	550nm
Lightresistance:	5-100k
Dark Resistance:	0.5-20m
Responsetime:	30s
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Photoresistor
Function For Resistance:	CDS Photoresistor
Application:	Optical Control Field
Brand:	OEM
