Prod Model: |
KTC-600mm |
Application: |
EVA Injection Machine Sensor |
Feature: |
Linear Excellent |
Working Speed: |
10m/S |
Repeatability: |
0.01mm |
Material: |
Aluminum Alloy |
Product Description

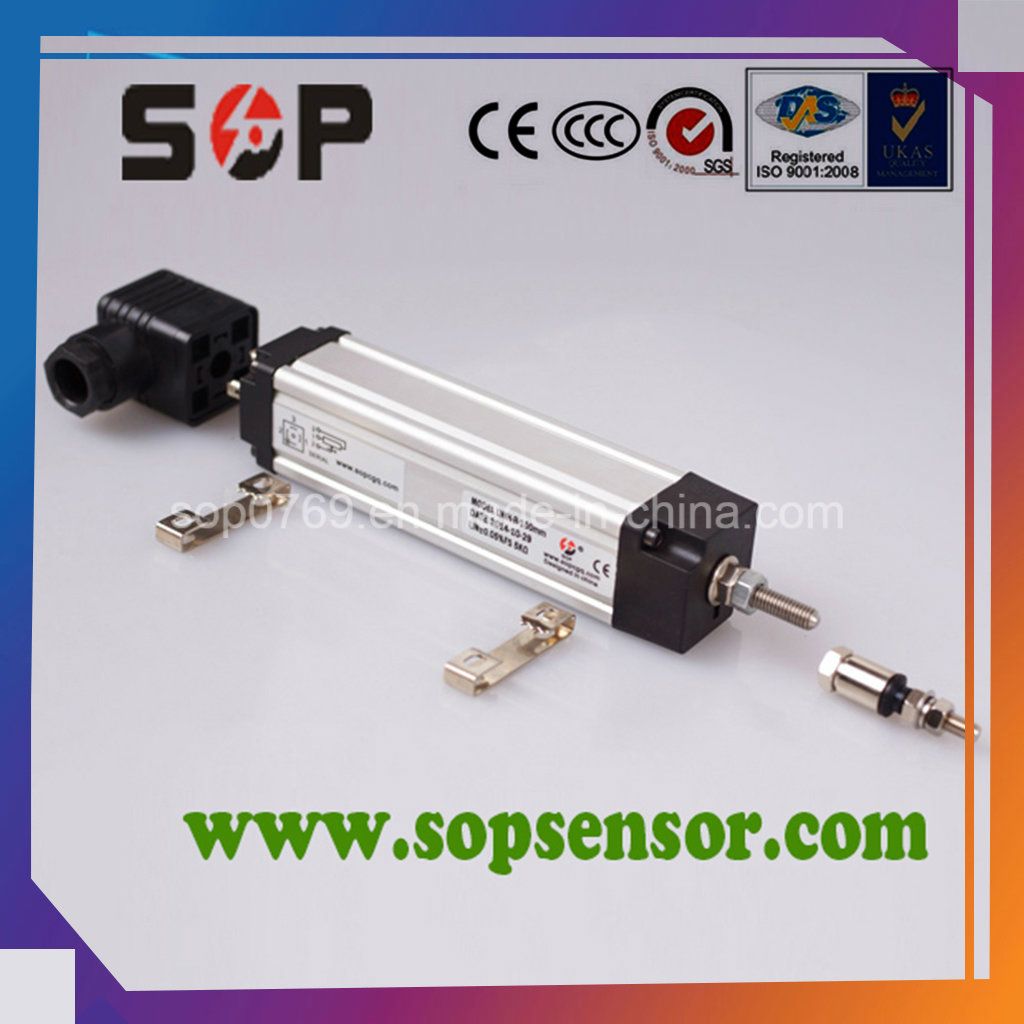

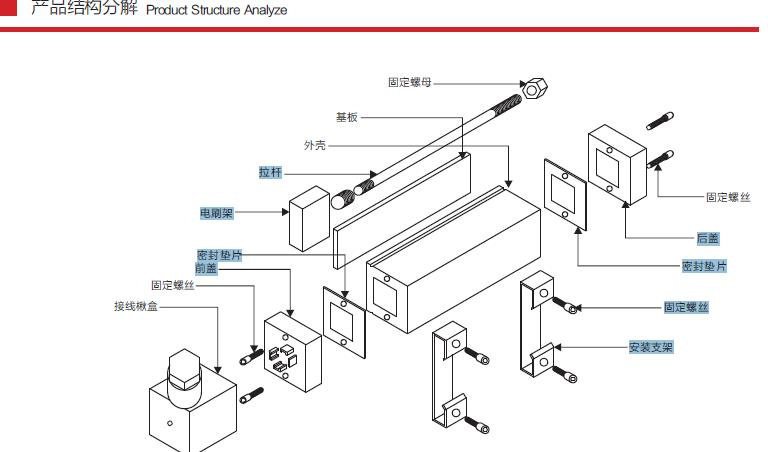

EVA Injection Machine Linear Excellent Displacement Sensor With High Speed

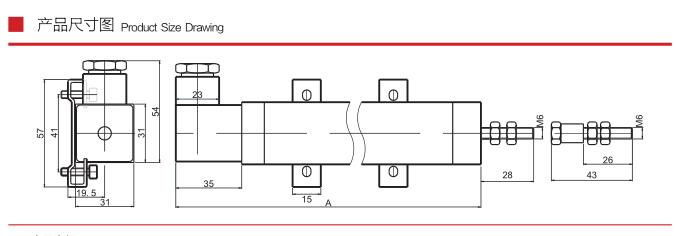

Model | | Unit |
Working Stroke | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 275 | 300 | 325 | 350 | 375 | 400 | 500 | 600 | 700 | 800 | 1000 | 1250 | mm |
Electric Stroke | 75.5 | 101 | 126 | 151 | 175.5 | 201.5 | 226.5 | 252 | 277 | 302 | 327.5 | 352.5 | 377.5 | 403 | 503.5 | 604 | 704.5 | 805 | 1006 | 1256 | mm |
Resistance value | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 20 | KΩ |
Resistance Tolerance | 5 | ±% |
Degree of Linearity | 0.15 | 0.15 | 0.15 | 0.1 | 0.1 | 0.08 | 0.08 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.04 | 0.04 | 0.04 | ±% |
Repeatability | 0.01 | mm |
Working Current | ≤ 1 | μA |
Max Current | 10 | mA |
Max Voltage | 42 | V |
Input Voltage and Output Voltage temperature Rate | 5(Typical Values) | ppm/K |
(500VDC,1bar,2s) Insulation Resistance | ≥ 10 | MΩ |
(50Hz,2s,1bar,500DVC) Insulation Intension | ≤ 100 | μA |
Length | 142 | 167 | 193 | 218 | 242 | 267 | 292 | 318 | 343 | 369 | 394 | 419 | 444 | 470 | 571 | 672 | 773 | 874 | 1076 | 1329 | ±2mm |
Mechanical Stroke | 82.5 | 108 | 133 | 158 | 183.5 | 208.5 | 233.5 | 259 | 284 | 309 | 334.5 | 359.5 | 384.5 | 410 | 510.5 | 611 | 711.5 | 812 | 1013 | 1266 | ±2mm |
Movement | ± 5° Angular deviation | |
Horizontal Direction | ≤ 0.4 | N |
Vertical Direction | ≤ 1.1 | N |
Temperature Range | -40~120 | ºC |
Anti-vibration | Frequency 5~2000 Distance A max= 0.75 weight a max= 20 | Hz/mm/g |
Shock Resistance | weight/time | g/ms |
Use Life | >20×106 | |
Working Speed | 10 | m/s(max) |
Acceleration | 200(20g) | m/s(max) |
Protect Grate | MAX IP65 DIN405000/IEC529 | |
Product Feature:
Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module
Displacement sensor Advantage
*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.
Repair commitment
Within twelve months from the date of sale, users in the use of the product under normal circumstances, if the product quality problems, and belongs to the normal warranty products,provide warranty twelve months warranty service.
Non free warranty "belongs to one of the following products, not the three service"
1. validity period of more than three bags,
2. the product label is torn, torn, blurred products;
3. not to use products that require the use, maintenance, custody of the damage caused;
4. without our authorized personnel to dismantle, repair or attempt to repair products,
5. no effective three packs of certificates or alter three guarantees certificate;
6. the Three Guarantees certificate of product models, and the product does not match thenumber;
7. no name, address, date of production, product certification;
8. because of the accident, the use of the wrong or in any way, natural irresistible factors, whichcaused damage to the product.
9. for the user to use, transport, improper storage caused damage to the product. (such astransportation or handling the collision caused deformation and not the normal use of products etc.)
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
