Factory Supply Magnetic Position Sensor Potentiometer for Distance Measurement

Name: Factory Supply Magnetic Position Sensor Potentiometer for Distance Measurement
Brand: all-electronics-online.com
SKU: 827221355
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTC-500mm
Working Stroke:	75-1250mm
Repeatability:	0.01mm
Working Speed:	10m/S
Max Voltage:	42V
Max Current:	10A
Material:	Alumiune Alloy

Product Description

Factory Supply Magnetic Position Sesnor Potentiometer for Distance Measurement

Electrical factors that affect the accuracy:

1. two-wire current output A2, maximum load, linear precision lower than minimum load 0.02%FS

2. three-wire current output type A3, maximum load, linear precision lower than minimum load 0.04%FS

3. voltage-output V1,V2 for empty, you need to load, load resistance cannot be less than 500kΩand precision than when you unloaded decreased 0.25%FS

4. resistance output type R-load type, you need to load, load resistance cannot be less than 500kΩ and accuracy than when you unloaded decreased 0.25%FS.

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-1250	-40~120	≤0.4	≤1.1

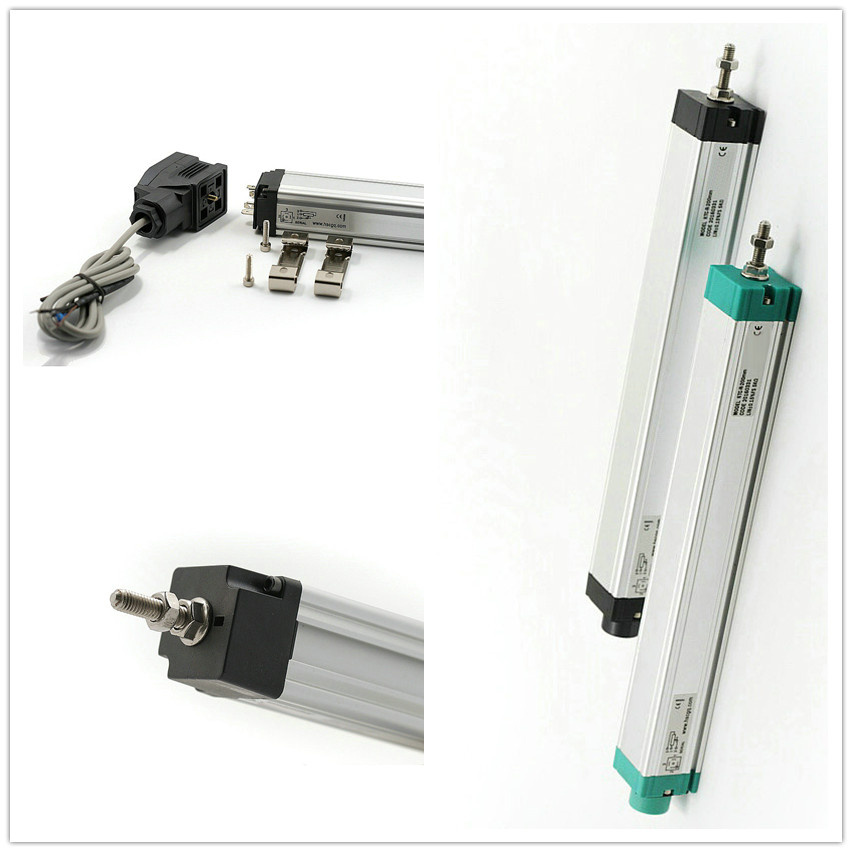

KTC is a versatile, suitable for various types of equipment to detect the position, such as: injection molding machines, die-casting machines, rubber injection machines, shoes, EVA injection machine, woodworking machine, hydraulic machine

Feature:
Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
