Factory Supply Moves Sensor with Longer Usage

Name: Factory Supply Moves Sensor with Longer Usage
Brand: all-electronics-online.com
SKU: 821006795
Availability: InStock
Rating: 4.5 (91 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Factory Supply Moves Sensor With Longer Usage

Model																											Unit
Working Stroke	75	100	125	150	175	200	225	250	275	300	325	350	375	400	500		600		700		800		1000		1250		mm
Electric Stroke	75.5	101	126	151	175.5	201.5	226.5	252	277	302	327.5	352.5	377.5	403	503.5		604		704.5		805		1006		1256		mm
Resistance value	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5		10		10		10		10		20		KΩ
Resistance Tolerance	5																										±%
Degree of Linearity	0.15	0.15	0.15	0.1	0.1	0.08	0.08	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05		0.05		0.04		0.04		0.04		±%
Repeatability	0.01																										mm
Working Current	≤ 1																										μA
Max Current	10																										mA
Max Voltage	42																										V
Input Voltage and Output Voltage temperature Rate	5(Typical Values)																										ppm/K
(500VDC,1bar,2s) Insulation Resistance	≥ 10																										MΩ
(50Hz,2s,1bar,500DVC) Insulation Intension	≤ 100																										μA

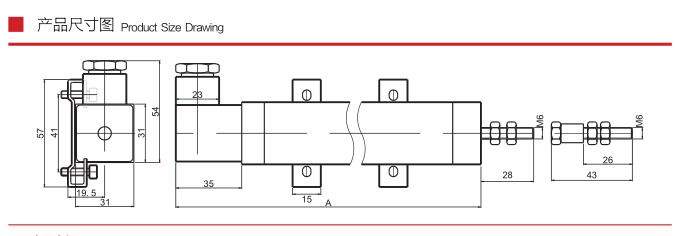

Length	142	167	193	218	242	267	292	318	343	369	394	419	444	470	571		672		773		874		1076		1329		±2mm
Mechanical Stroke	82.5	108	133	158	183.5	208.5	233.5	259	284	309	334.5	359.5	384.5	410	510.5		611		711.5		812		1013		1266		±2mm
Movement	± 5° Angular deviation
Horizontal Direction	≤ 0.4																										N
Vertical Direction	≤ 1.1																										N
Temperature Range	-40~120																										ºC
Anti-vibration	Frequency 5~2000 Distance A max= 0.75 weight a max= 20																										Hz/mm/g
Shock Resistance	weight/time																										g/ms
Use Life	>20×106
Working Speed	10																										m/s(max)
Acceleration	200(20g)																										m/s(max)
Protect Grate	MAX IP65 DIN405000/IEC529

Product Feature:
Usage life is longer, Times could reach fifty million
Linear excellent
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

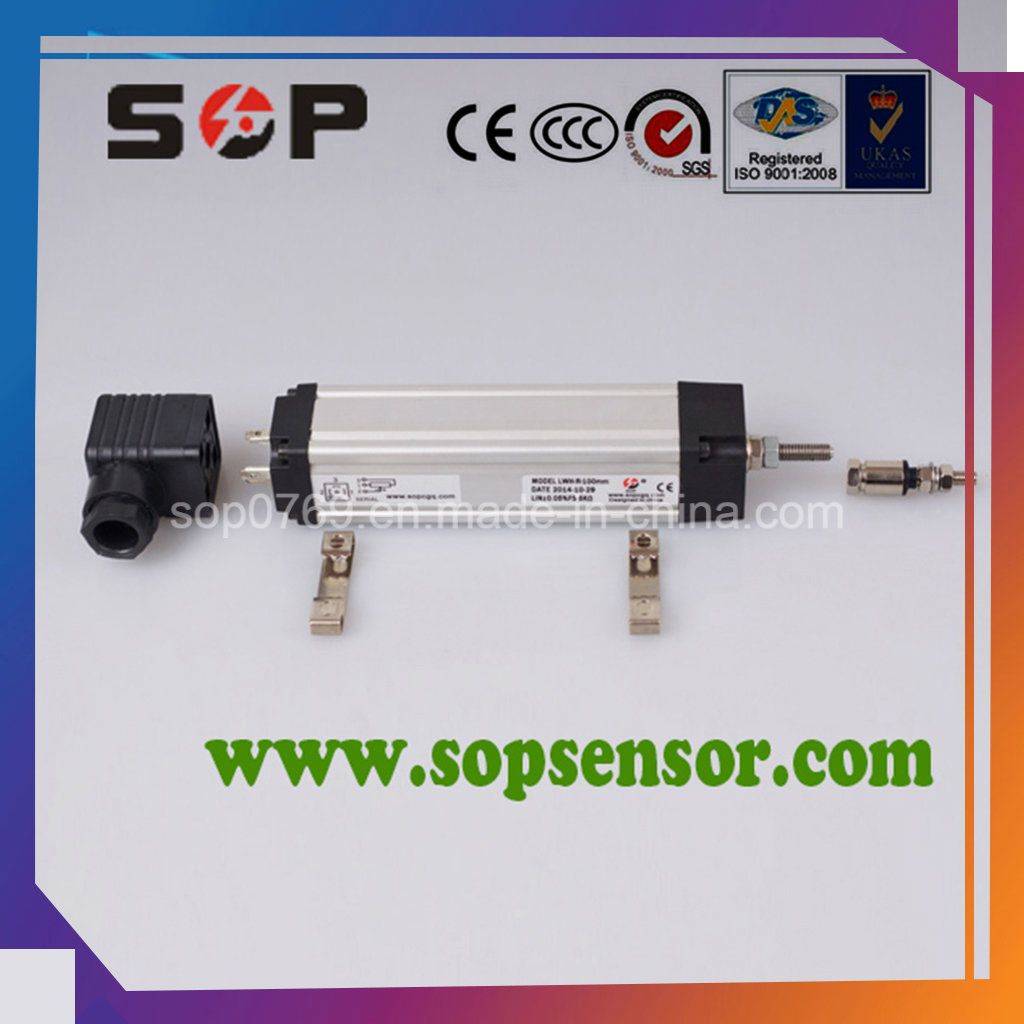

Prod Model:	LWH-1250mm
Feature:	Linear Excellent
Working Speed:	10m/S
Repeatability:	0.01mm
Working Stroke:	75-1250mm
Material:	Aluminum Alloy

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
