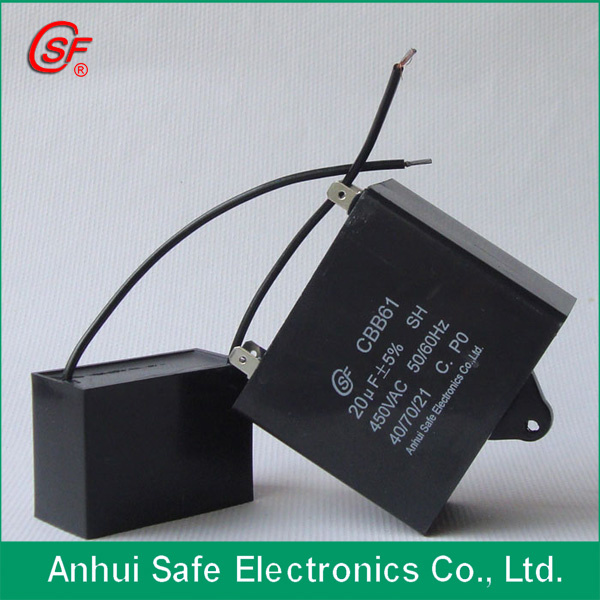

Fan Capacitor
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.The reliability is more affirmatively enhanced.
1. CONSTRUCTION: Non-inductive wound metallized polypropylene
2. COATING: Plastic case with resin seal
3. RATED VOLTAGE: 220VAC----630 VAC(250V/370V/400V/440V/450V/500V)
4. LIFE EXPECTANCY: LASS B-10.000h /CLASS C-3.000h
5. RATED FREQUENCY: 50/60Hz
6. RATED CAPACITANCE: 1uF---120uF
7. CAPACITANCE TOL.: +-5%, +-10% (standard), other tolerances upon request
8. CLIMATIC CATEGORY: 40/85/21
9. OPERATING TEMP. RANGE: -40/+85 degree
11. COVER: Flame retardant plastic cover (UL 94 V-2)
12. TEST VOLTAGE TERMINAL TO TERMINAL: 2 x Un for 60s (Un: Rated voltage)
13. TEST VOLTAGE TERMINAL TO CASE: 2000VAC for 60s
14. MAX. PERMISSIBLE VOLTAGE (RMS): 1, 1 x U n
15. MAX. PERMISSIBLE CURRENT (RMS): 1, 3 x I n
16. MAX. PERMISSIBLE REACTIVE OUTPUT: 1, 35 x Q n
For more information,you can contact and view our website:
www.capacitorfilm.com
|
Standard |
GB3667.1-2005, IEC60252-1: 2001, UL810 |
|
Capacitance range |
1uF~120uF |
|
Capacitance deviation |
± 5% or according to customers' requests. |
|
Rated Voltage |
220VAC, ~ 500VAC |
|
Rated frequency |
50/60Hz |
|
Operating Temperature |
-40° C~+85° C |
|
Class of safety protection |
P0, P1, P2 |
|
Testing voltage |
T-T: 2.0Un/60S |
|
Tangent of loss angle of a capacitor |
tanσ ≤ 0.002 (100Hz) |
|
Size |
according to chart or users require |
| Prod Model: |
CBB61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Frequency: |
50/60Hz |
| Rated Voltage: |
220vac, ~ 500vac |
| Type: |
Supercapacitor |
| Package Type: |
Through Hole |
| Application: |
Automobile |
| Usage: |
Fan Capacitor |
| Structure: |
Film Capacitor |
| Electrolyte: |
Oil/Resin |
| Capacitance: |
1~120UF |
Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

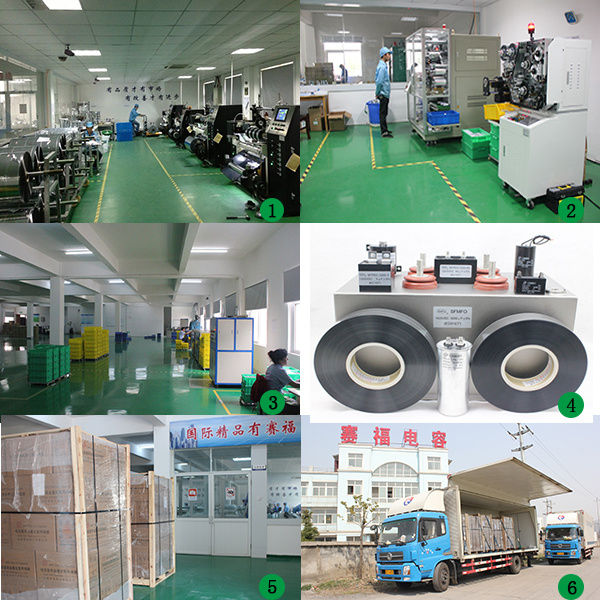

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.
The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.
With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.
Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.
"good faith, serving the whole world" is our principle.
