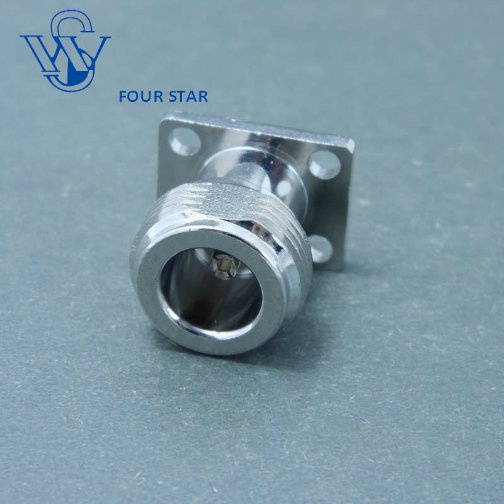

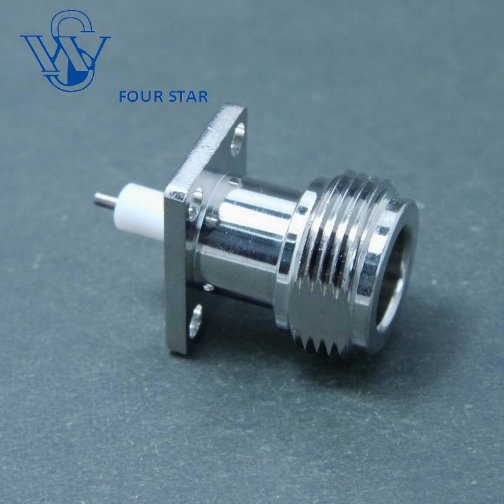

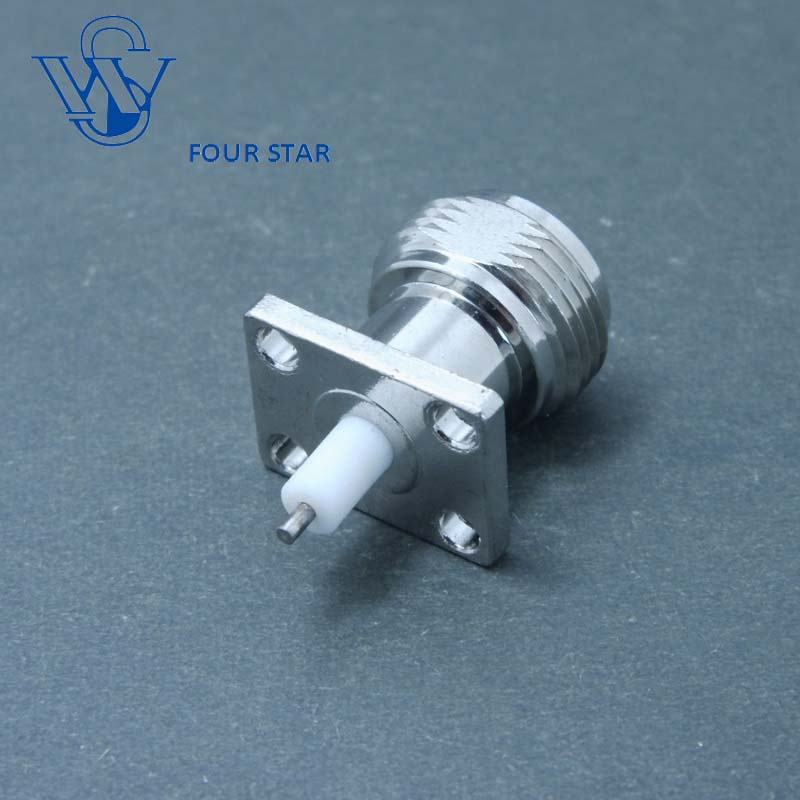

Female Jack 13.7X18mm Rectangle Flange N Connector with Stub Terminal Extended 6.4mm Insulator and 2.3mm Pin
Price: |
US $ 0.62-1.02/Piece |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
N-KFD-6.4-2.3 |
Frequency Range: |
DC-11GHz |
Type: |
Generally Coaxial Connector |
Coupling Mechanism: |
Threaded Connection |
Application: |
RF |
Interface Type: |
N Connector |
VSWR: |
Max 1.2@DC-6GHz |
Brand: |
Four Star |
Product Description
TYPE N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50ohm and 75ohm. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHZ.N female 13.7x18mm rectangle flange connector with extended 6.4mm insulator and 2.3mm pin |
Model No. | N-KFD-6.4-2.3 |
Interface | IEC 60169-16 |
Electrical | |
Characteristic Impedance | 50ohm |
Frequency Range | DC-11GHz |
VSWR | ≤1.20@DC-6GHz |
Working Vlotage | 1000V RMS,50Hz,at sea level |
Dielectric Withstanding Voltage | ≥2500V RMS,50Hz,at sea level |
Dielectric Resistance | ≥5000MΩ |
Contact Resistance | Center Contact ≤1mΩ | Outer Contact ≤0.25 mΩ |
Mating | - |
Mechanical | |
Durability | Mating cycles ≥500 |
Material and Plating | | |
Parts Name | Material | Plating |
Body | Brass | Tri-alloy |
Insulator | PTFE | |
Center Conductor | Phosphor Bronze | Ag |
Environmental | | |
Temperature Range | -40 ºC-85 ºC |
Weatherproof Rate | IP67 |
RoHs Compliant | Yes |
