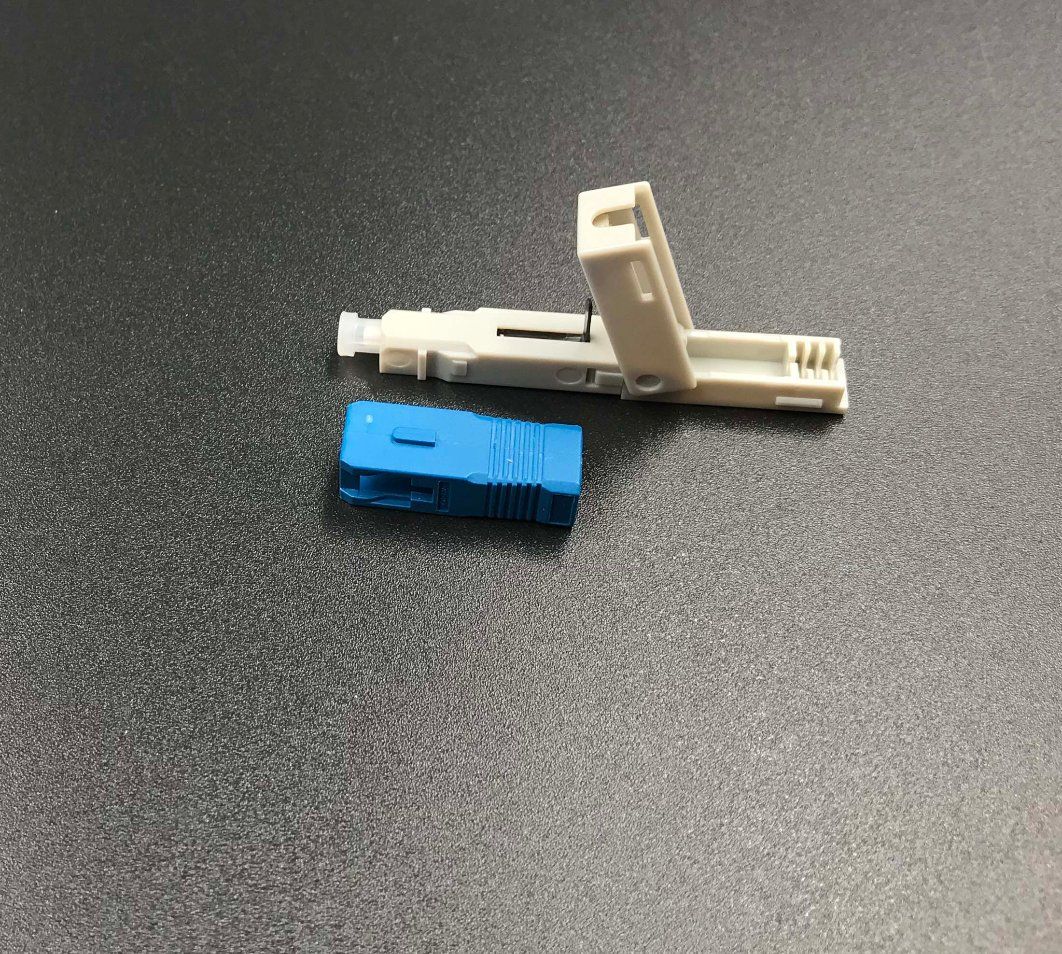

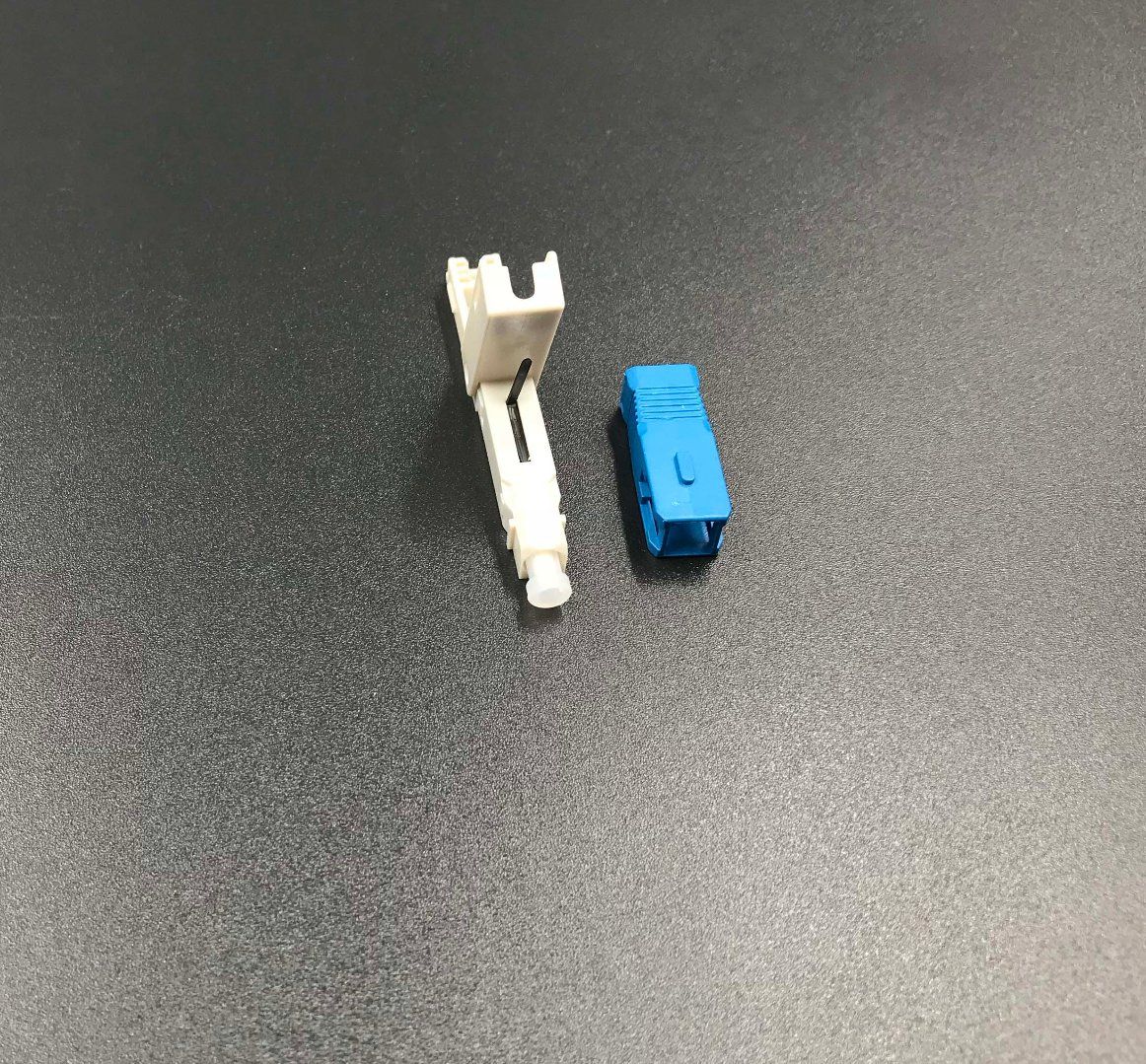

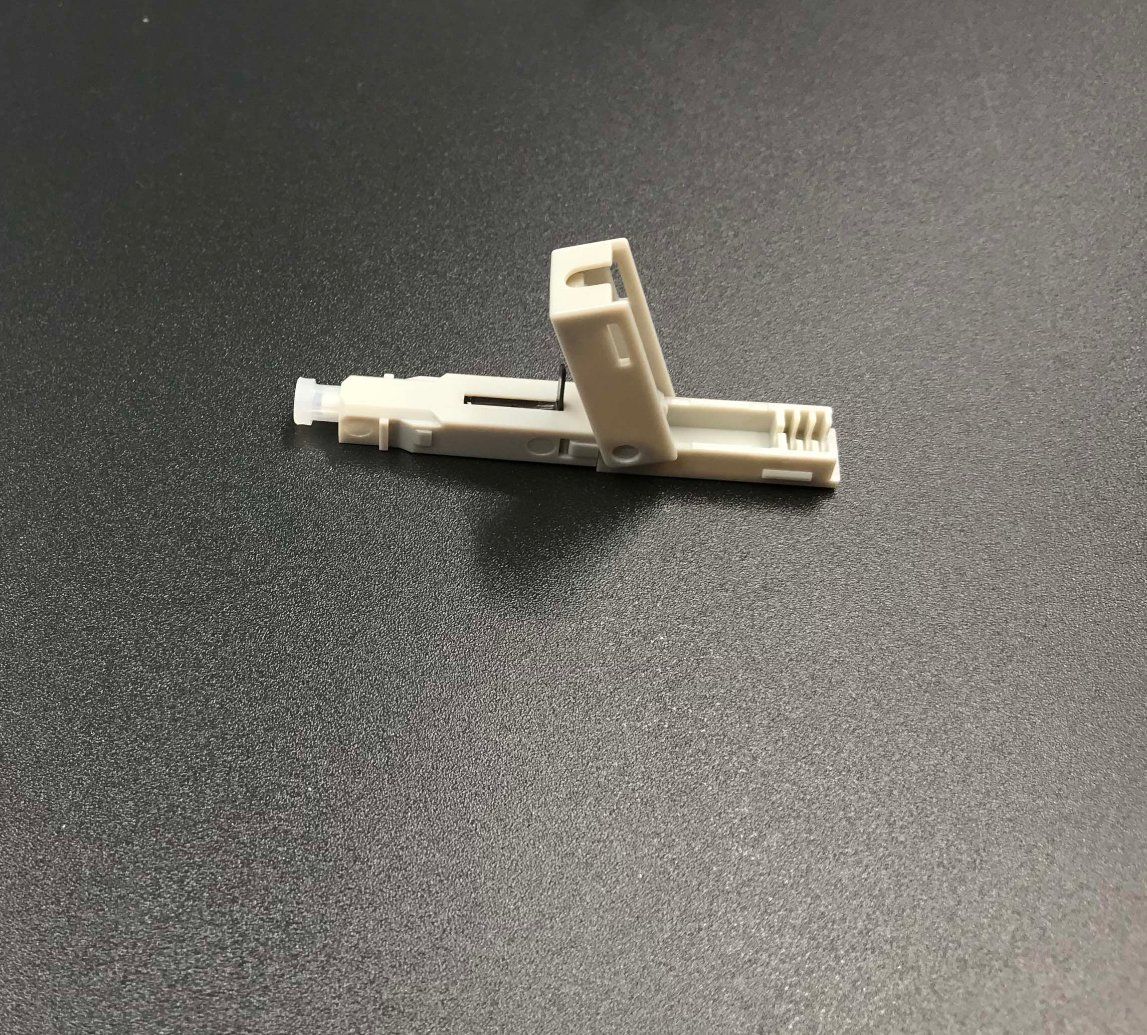

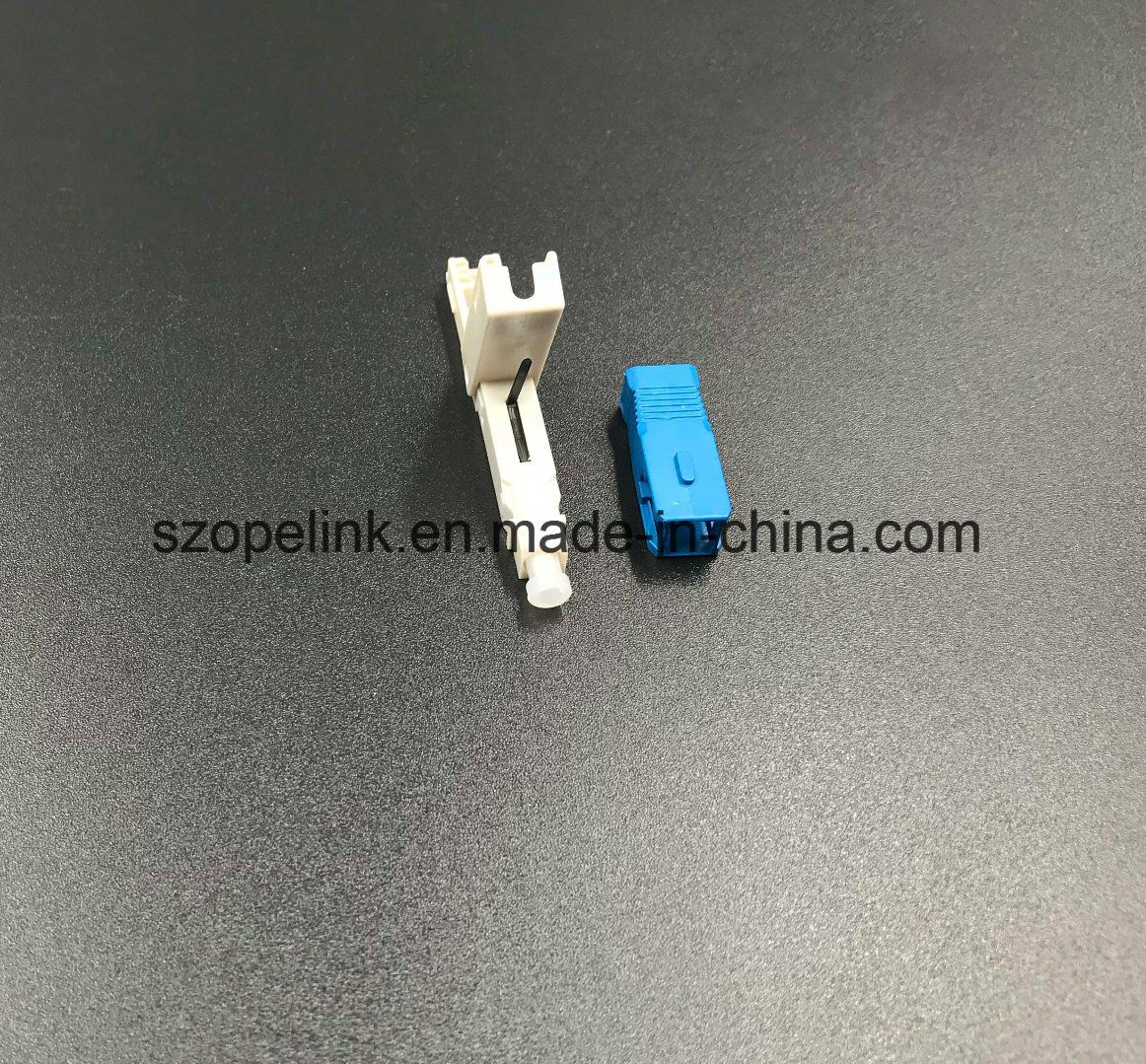

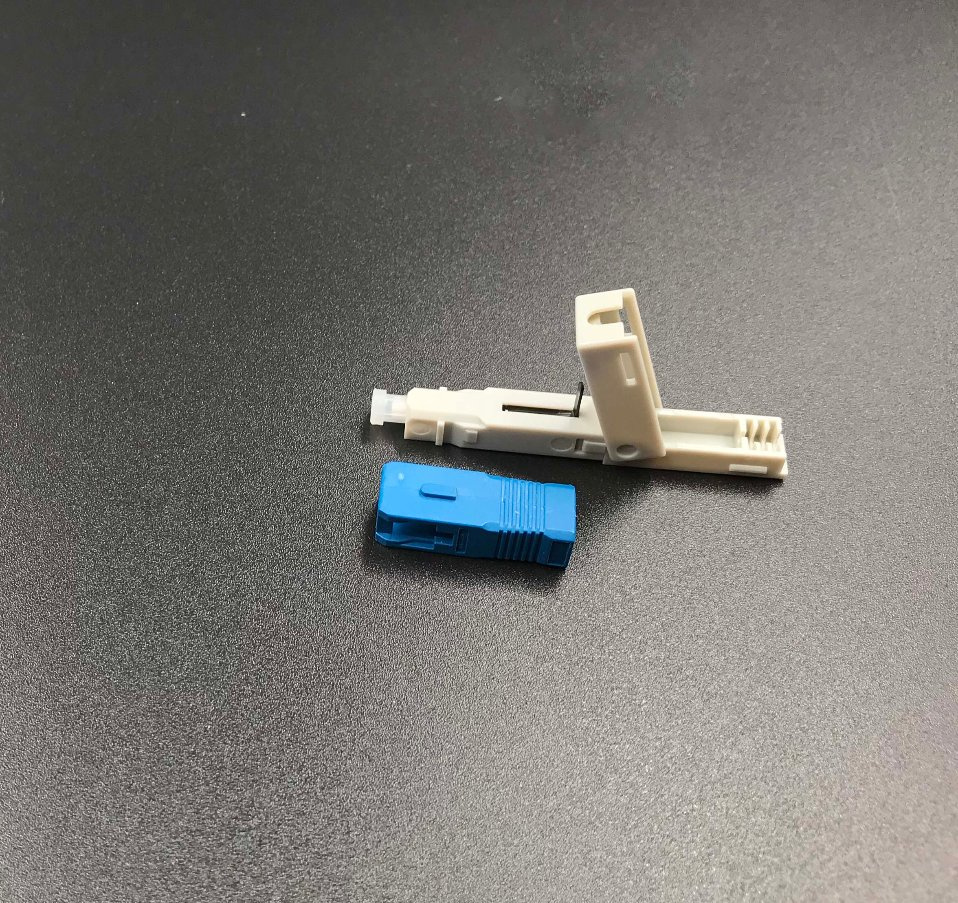

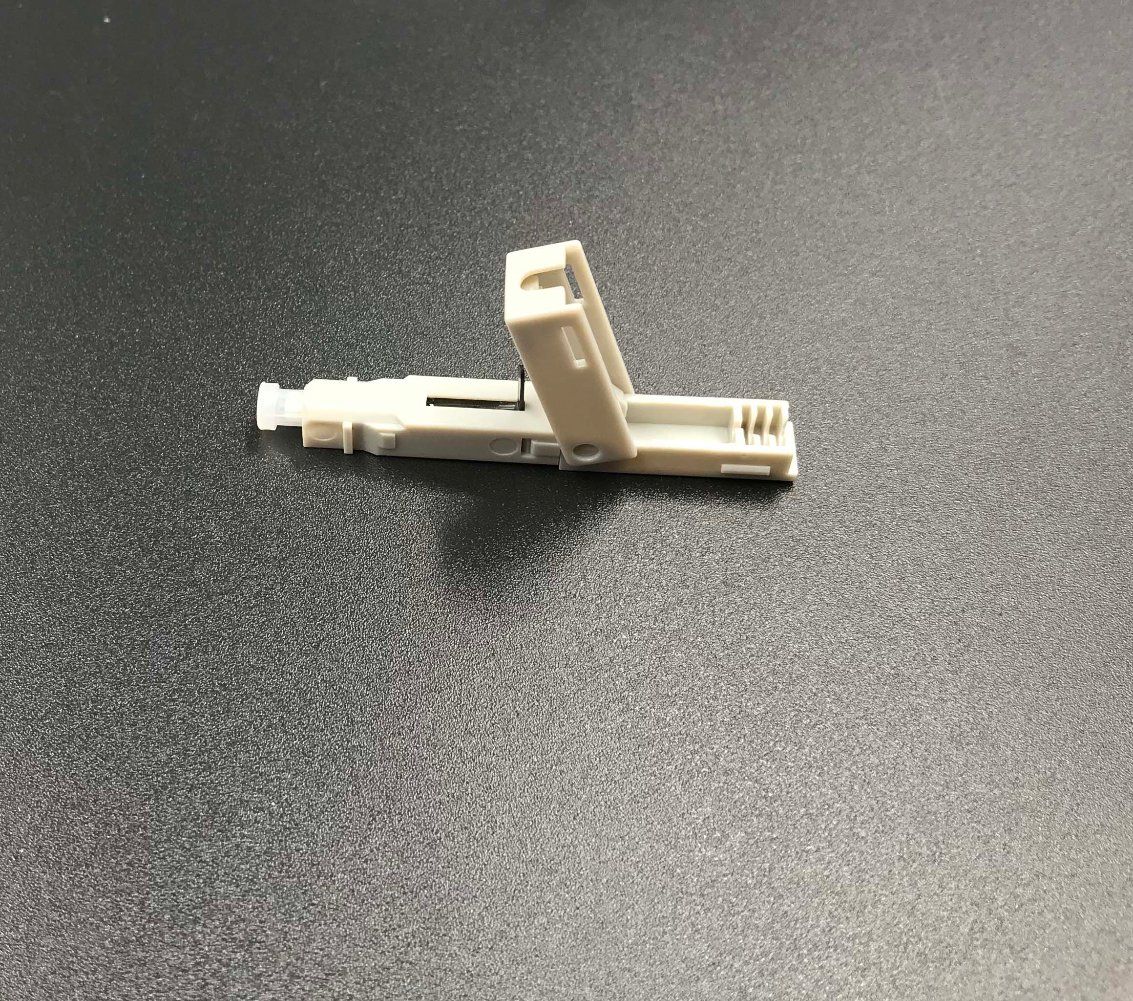

Fiber Optic Fast Connector for Local Area Network &Telecommunication
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Fiber Optic Fast Connector for Local Area Network
Feature:
1. Easy to assemble and disassemble
2. Low insertion loss
3. High return loss
4. Can be used many times, reduce cost
5. Good repeatability and exchangeability
6. Widely used
Application:
1. Fiber optic communication system
2. Optical access network
3. Fiber optic data transmission
4. CATV
5. Fiber optic equipment
Specification: Specification:
| Item | Fast Connector | | | Technical Parameter | Suitable cable
Outer diameter | 2*3.0mm | | Insertion Loss | Average≤0.25dB,s Max≤0.5dB | | Return Loss | UPC≥45dB, APC≥50dB | | Repetitive Assemble | Assemble times: 5 | | Tensile | △IL<0.3dB @ 30N | | Operating temp. | -40ºC~+70ºC | | Storage temp. | -40ºC~+80ºC | | Remark | Embeded Optical fiber type structure
Pressure part adopt new unique structure design
Without the glue and grinding
Widely used in the opening in the optical fiber terminal into FTTH |
Order Information:
| SC Embeded fast connector | | | Single mode 9/125 PC | 0.9mm,2.0mm, 3.0mm (OD) | | Single mode 9/125 APC | 0.9mm,2.0mm, 3.0mm (OD) | | Multi-mode 50/125 | 0.9mm,2.0mm, 3.0mm (OD) | | Multi-mode 62.5/125 | 0.9mm,2.0mm, 3.0mm (OD) |
| | |
| | | | |
| | | | | |
| | | | | |
| | |
| | |
| | |
| | |
| | |
Order Information: | Type | Type | Fiber type | Material | Flange | type | Sleeve | Application |
SC
LC
FC
ST
| SX=Simplex
DX=Duplex
QU=Quad | S=Single Mode
M=Multi-mode | P=Plastic PBT
M=Metal | L=Flanged
S=Flangeless
F=Flangeless with shutter | B=Blue G=Green
E=Beige A=Aqua
M=Metal Ni-
Plated | Z=Zirconia Split
M=Metal Split
| P=PC
A=APC |
----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
| Prod Model: |
Fast Connector for cable TV Networks |
| Connection Structure: |
St |
| Certification: |
RoHS, ISO9001, UL |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Application: |
Communication, Medicine |
| Light Source TYPE: |
Fiber Optics |
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
