Fiber Optical MPO-LC Duplex Patch Cord for Local Area Network
Price: |
Negotiable/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

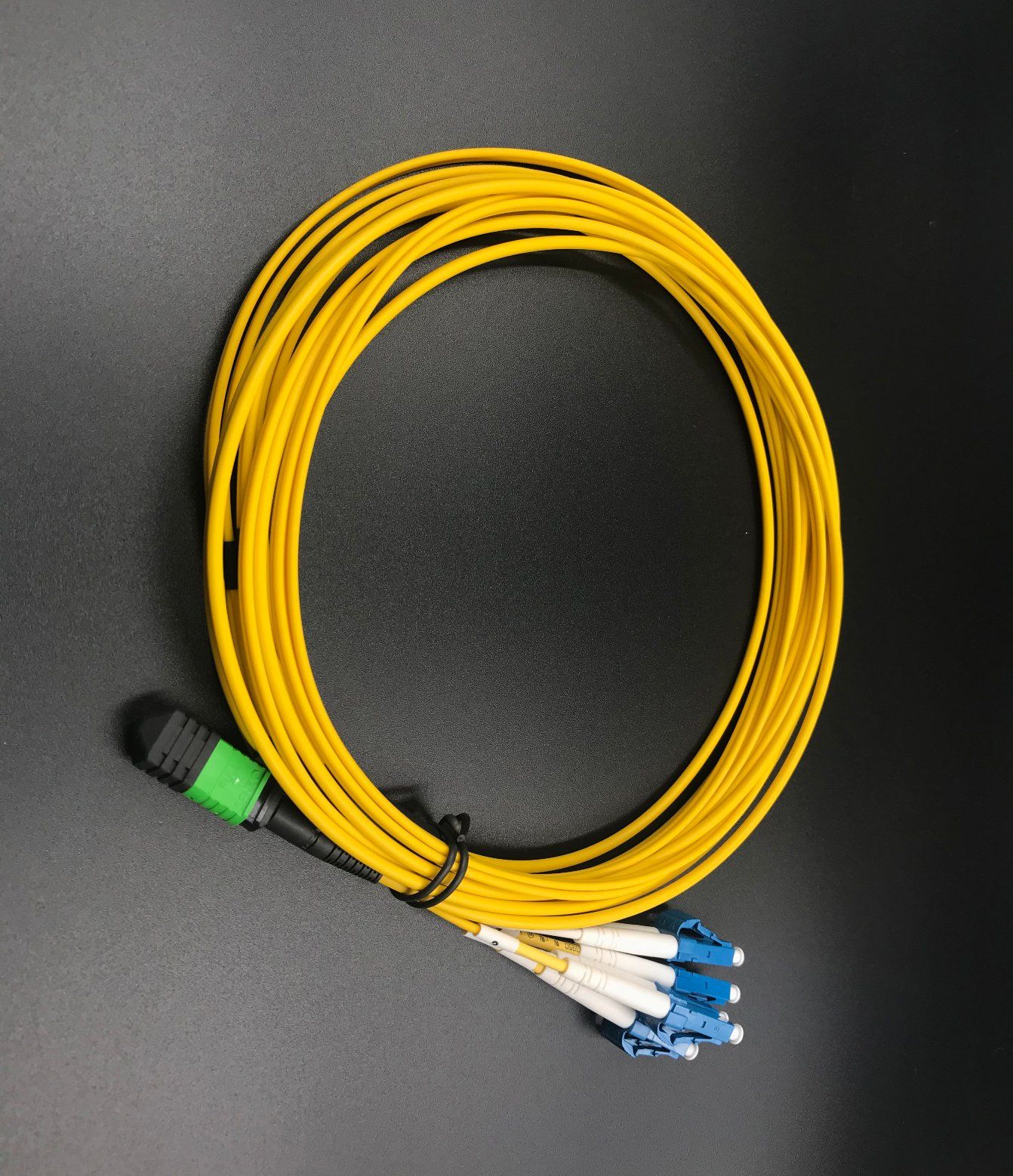

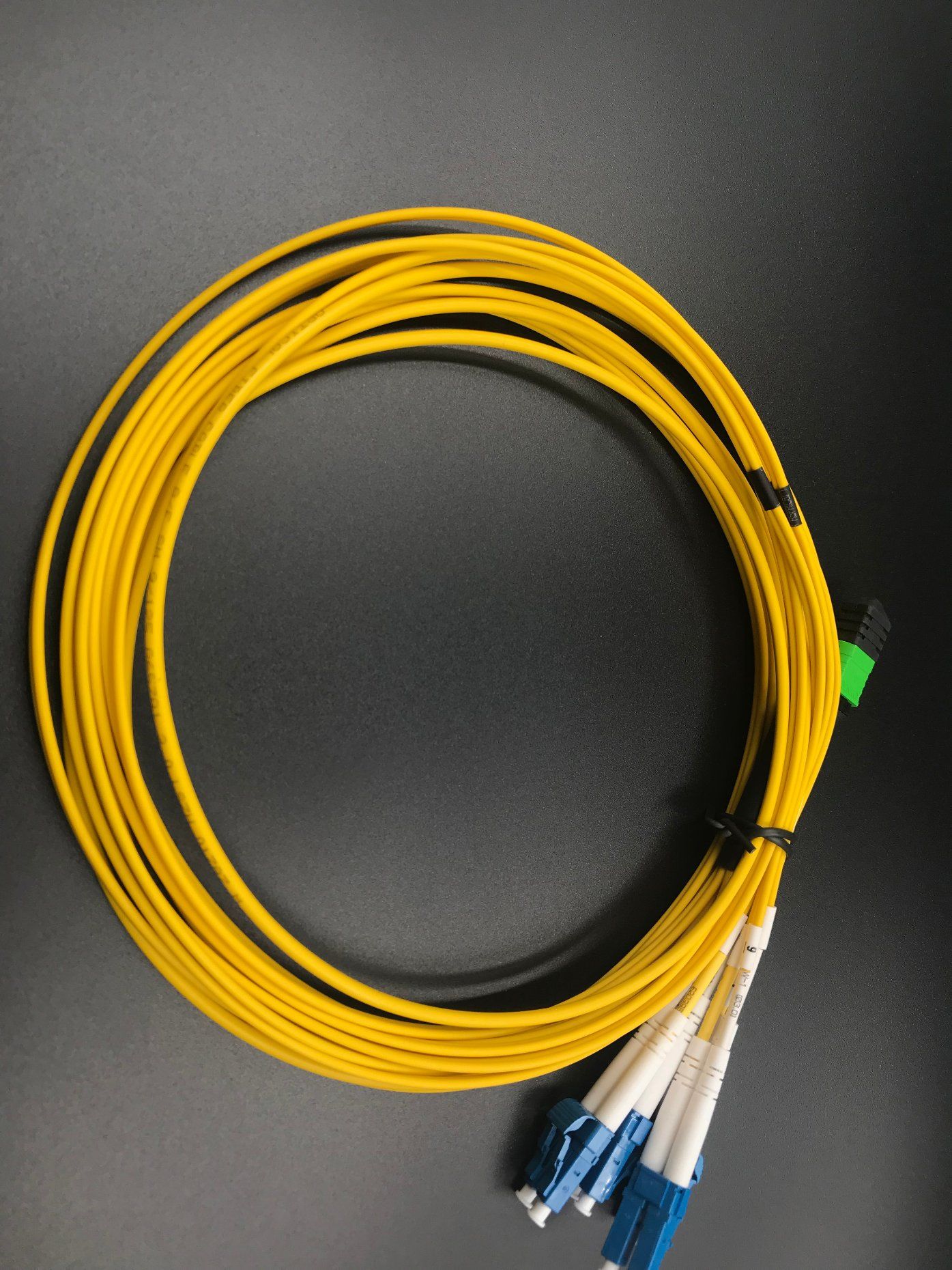

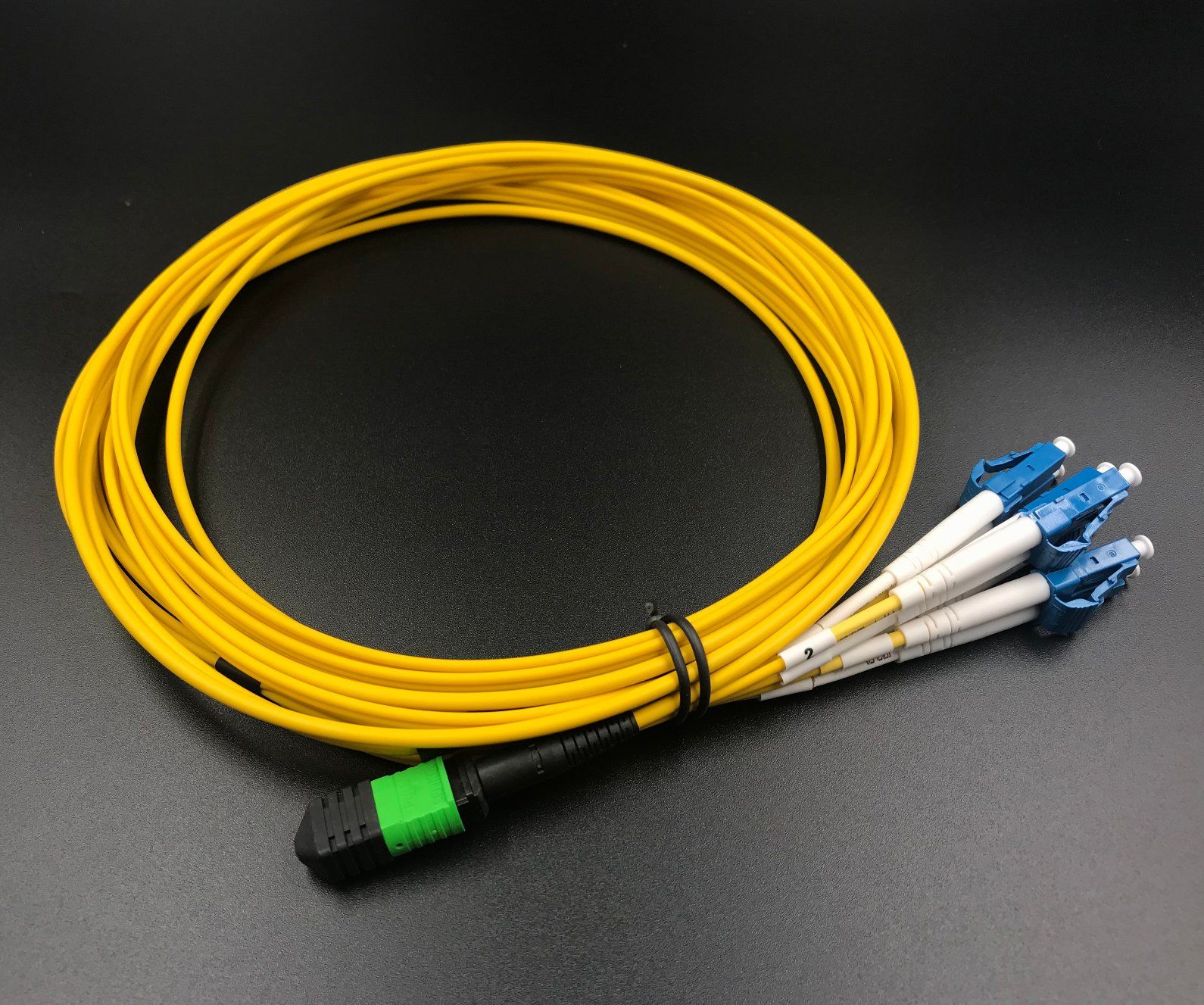

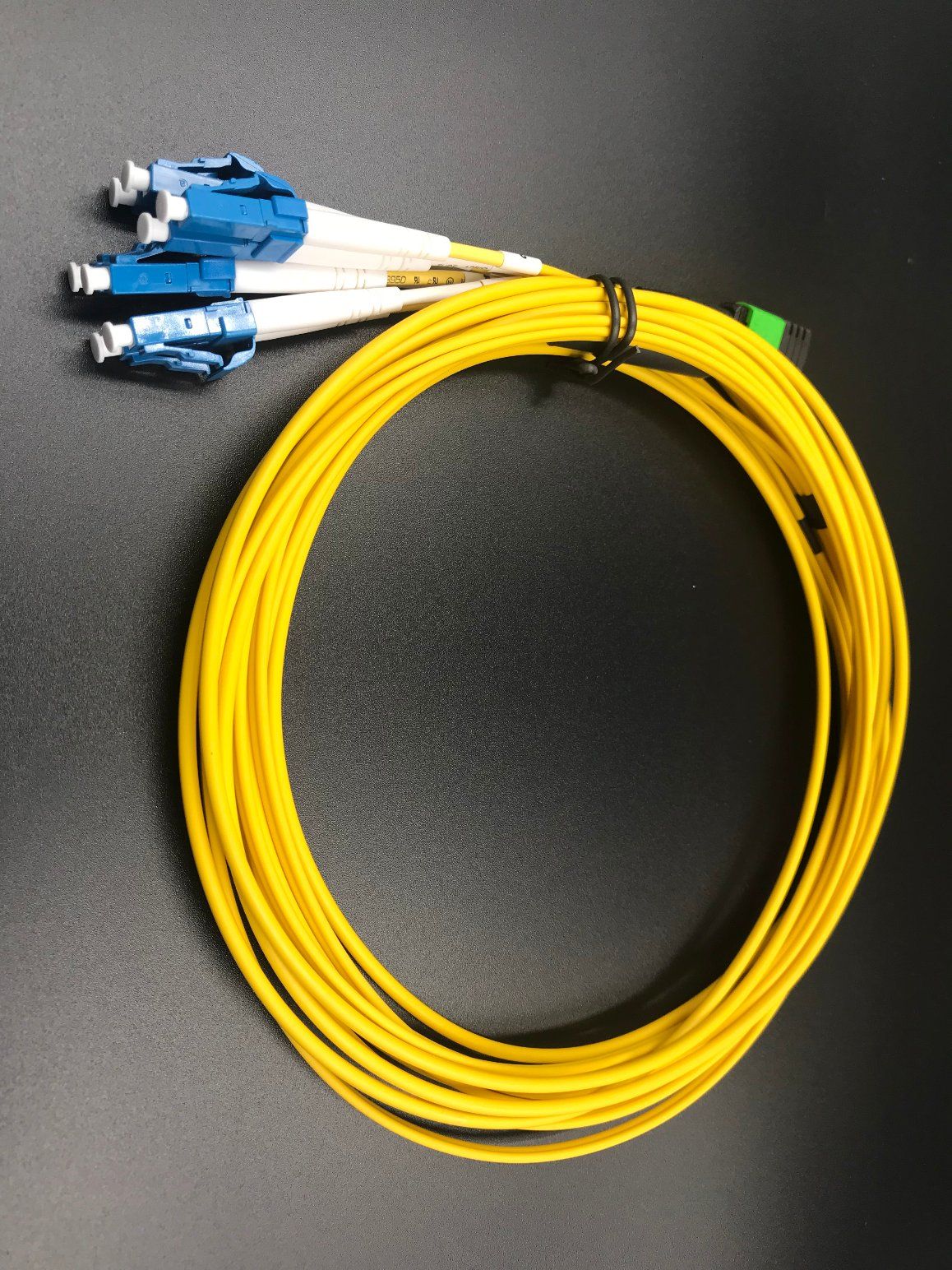

MPO/LC Duplex Fiber Optic Patch Cord
Features:
Low insertion loss and High Return Loss Good durability
Good exchangeability High temperature stability
compliant with standards of Telcordia GR-326-CORE
Application:
Optical Fiber Communication Systems
Optical Access Network
Fiber optic data transmission
Optical Fiber CATV
Local Area Network (LAN)
Test Equipment
Specifications:
Description: Connector:MPO/MTP. SC,FC,ST,LC,MU,MTRJ,E2000, etc Polishing type:PC,UPC,APC Fiber core:Singlemode(G652D,G657A) Fiber cable:Simplex,Duplex,Multi-core,Ribbon,Distribution, Armoured, etc Cable OD:0.9mm,2.0mm,3.0mm,etc Cable Material:PVC-OFNR,PVC-OFNP,LSZH, etc Patchcord Length:1m,2m,etc.
Specifications: Table1. MPO/MTP END | | | Standard | | Low Loss | | | ITEM | | | | | | | | Single mode | Multimode | | Single mode | | Multimode | | | | | | | | | | | | | | | I.L typical | | | 0.35dB | 0.35dB | | 0.2dB | | 0.2dB | | | | | | | | | | I.L Max. | | | 0.7dB | 0.7dB | | 0.35dB | | 0.35dB | | | | | | | | | | | | UPC | ≥50dB | ≥20dB | | ≥50dB | | ≥20dB | R.L | | | | | | | | | | APC | ≥60dB | ≥30dB | | ≥60dB | | ≥30dB | | | | | | | | | | | | | Operating temperature | | | -20ºC~75ºC | | | | | | | | | | | | | | | | Storage temperature | | | -40ºC~75ºC | | | | | | | | | | | | | | | | |
Table2. General Connector ITEM | SM/MM Patchcord | Polishing Type | UPC | APC | | | | I.L | <=0.3dB,MTRJ<=0.5dB | <=0.3dB | | | | R.L | >=50dB,MTRJ>=30dB | >=60dB | | | | Operating | -20ºC~75ºC | | temperature | | | | Storage Temperature | -40ºC~75ºC | | | | | | | 100 mating cycles | I.L changed≤0.1dB | | loss | | | | Durability | >1000 cycles | | | | |
Ordering information: Type | Fiber Core | Cable Type | Cable OD | Cable | Cable | Connector | Patchcord | | | | | Material | Color | (A End -B End) | Length | | | | | | | | | | | | | | PT=Patch | S1=G652D | 01=simplex | L=0.9mm | 1=PVC | 01=Blue | SU=SC/UPC | 0.5M=0.5 | cord | | | | | 02=Orange | SA=SC/APC | M | | S2= G657A1 | 02=Duplex | 2=2.0mm | 2=LSZH | | | | PY=Pigtail | | | | | 03=Green | FU=FC/UPC | 10M=10 | | M1=50/125 | 03=Armoured | 3=3.0mm | | 04=Brown | FA=FC/APC | M | | M2=62.5/125 | 04=Distribution | XX=other | | 05=Slate | LU=LC/UPC | XXX=oth | | M3=OM3 | 05=Ribbon | | | 06=White | LA=LC/APC | er | | | | | | | | M4=OM4 | 06=breakout | | | 07=Red 08=Black | ST=ST/UPC | | | | | | | | | S7=G657A1 | 07=drop cable | | | 09=Yellow | MPO=MPO/PC | | | | | 10=Violet | MPA=MPO/APC | | | S8=G657B3 | XX=other | | | | | | | | | | | XX=other | | | | 11=Rose | 00=NONE | | | | | | | 12=Aqua | | | | | | | | | XX=Other | | | | | | | 13=12Color | | | | | | | | XX=other | | | | | | | | | | |
| |
| |
|
| |
| |
|
| |
| |
| |
| |
| |
| |
----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
Prod Model: |
MPO-LC Fiber Optic Patch Cord MM, |
Application: |
Medicine |
Type: |
Multi-mode Fiber |
Certification: |
ISO9001 |
Connection Structure: |
MPO-LC |
OPELINK Technology is a high-tech enterprise with a focus on the design and the production of optical communication and accessories. We are among the industry leaders here in China and we own that to our highly skilled and experienced production staff and engineers. We manufacture a complete selection of premium quality products including fiber optic splitters, optical WDM, fiber optic circulator and many other active optical components.
Every stage PF production in our workshop is carefully controlled, from raw material selection to assembly, packaging and transport. We do this to guarantee quality and ensure that all of our customers are satisfied with their delivery.
In addition to our products sold in China, we also do business in France, the United States, Brazil, Russia, and many other countries. So far we have cooperated with Ericsson (Spain), Vodafone (Hungary), etc.
Moreover, OPELINK employs a professional foreign team in which most of members have more than 5 years experience in optical communication equipment.
