Fiber Optical PLC Splitter 1X64 for Local Area Network
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PLC Splitter 1x64 |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
Product Description

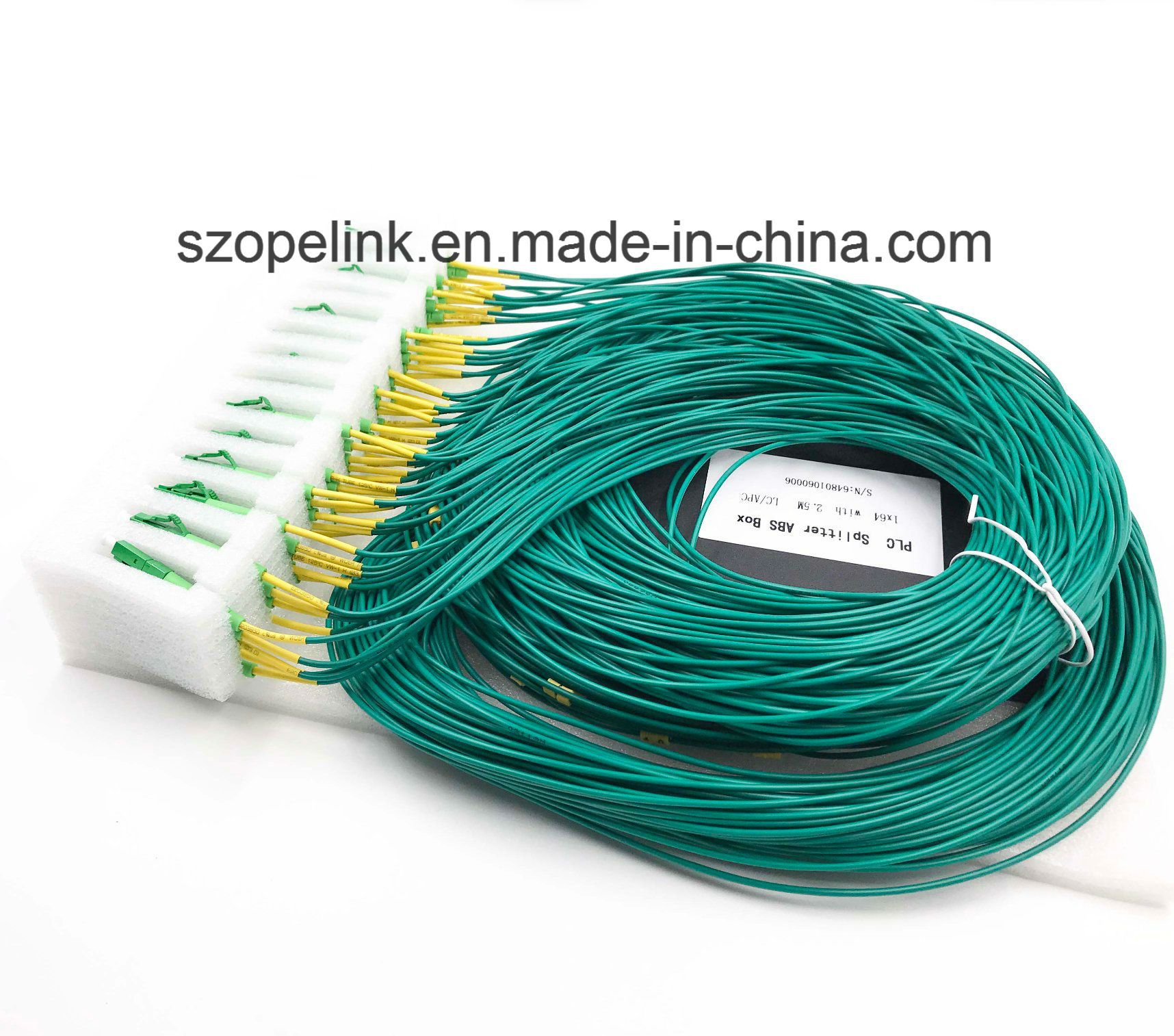

PLC Splitter 1X64 Plastic Box For Local Area Network
PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small
Form Factor and High Reliability.
Features:
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications:
FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipments
Specifications:
Specifications:Specifications: | Parameter | Value | | Product Type | 1×2/2x2 | 1×4/2x4 | 1×8/2x8 | 1×16/2x16 | 1×32/2x32 | 1×64/2x64 | 1×128/2x128 | | Wavelength(nm) | 1260~1650 | | I.L(dB) | Typ. | 3.6/4.2 | 7.1/7.2 | 10.4/10.6 | 13.6/13.8 | 17.2/17.5 | 20.1/20.5 | 25.0/25.2 | | Max. | 4.3/4.5 | 7.4/7.6 | 10.7/11.0 | 14.0/14.8 | 18.0/18.0 | 21.5/21.5 | 25.8/25.8 | | Uniformity(Max.)(dB) | 0.5/0.8 | 0.8/1.0 | 1.0/1.2 | 1.4/1.5 | 1.6/1.8 | 2.0/2.5 | 2.6/3.0 | | PDL(Max.)(dB) | 0.2/0.2 | 0.3/0.3 | 0.3/0.3 | 0.3/0.3 | 0.3/03 | 0.5/0.5 | 0.8/1.0 | | TDL(Max.)(dB) | 0.5 | | R.L(dB) | ≥55(APC)/≥55(UPC) | | Directivity(dB) | ≥55 | Operating & Storage
Temperature | -40~+85 | Note: All the data above does not include connectors.
UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB. |
----------------------------------------------------FAQ--------------------------------------------------- | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
Order Information:
| Type | Type | Fiber type | Material | Flange | type | Sleeve | Application | SC
LC
FC
ST
| SX=Simplex
DX=Duplex
QU=Quad | S=Single Mode
M=Multi-mode | P=Plastic PBT
M=Metal | L=Flanged
S=Flangeless
F=Flangeless with shutter | B=Blue G=Green
E=Beige A=Aqua
M=Metal Ni-
Plated | Z=Zirconia Split
M=Metal Split
| P=PC
A=APC |
| |
| | |
| |
| | |
| | |
| |
| | |
| | |
| | |
| | |
| | |
| | |
Order Information: | type | End Face | Material | Housing Color | RL | Attenuation |
SC=SC
FC=FC
LC=LC
MU=mu
ST=ST
SA=SC Adap.
FA=FC Adap. | P=PC
A=APC
| P=plastics
M=metal | BL=Blue
GR=Green
BE=Beige
AQ=Aqua
ME=Metal | 50=50dB
55=55dB
60=60dB
65=65dB
| 01=1dB
02=2dB
03=3dB
04=4dB
05=5dB
06=6dB
10=10dB
xx=other |
----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
