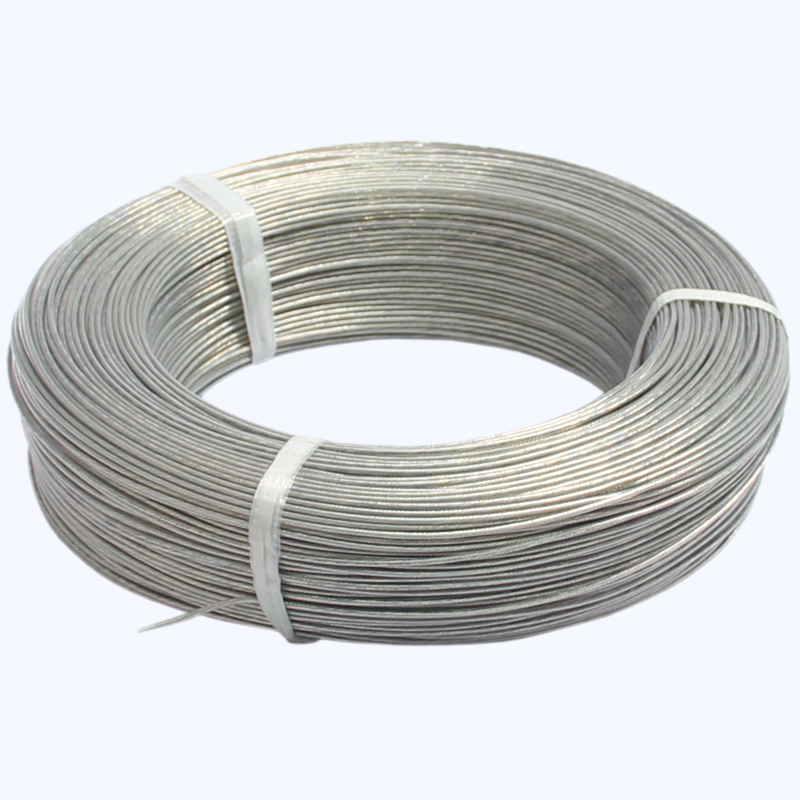

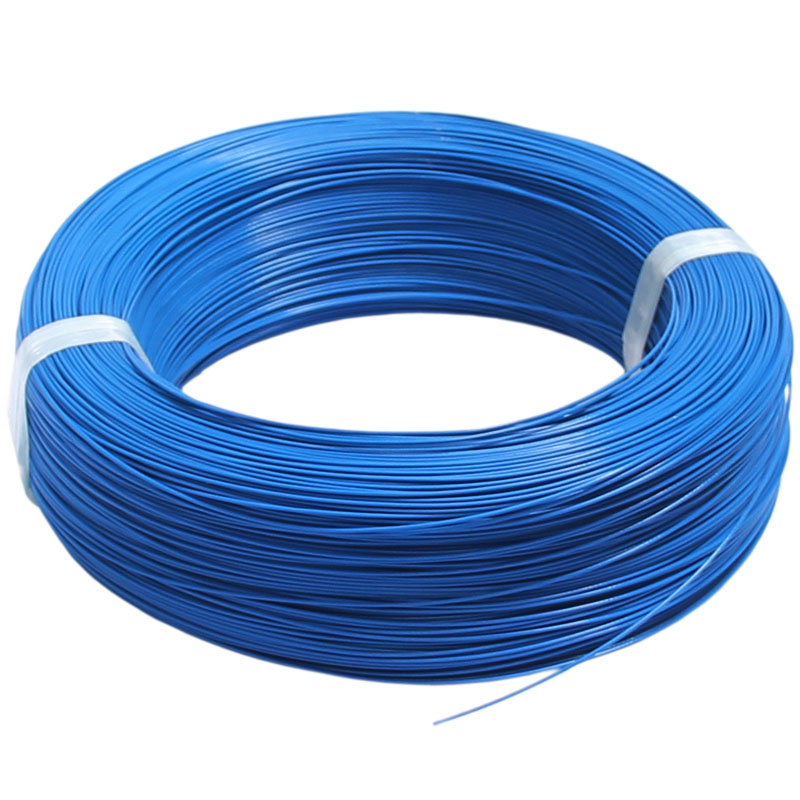

Fluoroplastic Cable with UL1332

Name: Fluoroplastic Cable with UL1332
Brand: all-electronics-online.com
SKU: 747261595
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 0.05-6.66/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Fluoroplastic cable(UL1332)
Nominal Voltage:600V
Temperature Range:-100ºC to 150/200ºC
Conductor:Tinned copper
Insulator:FEP
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
30#	1/0.254	0.24	0.33	0.91	610
28#	1/0.32	0.32	0.33	0.8	610
26#	7/0.16	0.48	0.33	1.15	305
	19/0.1	0.5	0.33	1.16	305
24#	7/0.203	0.61	0.33	1.27	305
	19/0.12	0.6	0.33	1.26	305
22#	7/0.254	0.76	0.33	1.42	305
	19/0.16	0.8	0.33	1.46	305
20#	7/0.31	0.93	0.33	1.61	305
	19/0.19	0.96	0.33	1.62	305
18#	7/0.39	1.17	0.33	1.85	305
	19/0.235	1.18	0.33	1.84	305
16#	7/0.5	1.5	0.33	2.16	305
	19/0.3	1.51	0.33	2.17	305
14#	19/0.37	1.86	0.33	2.52	200
12#	19/0.47	2.35	0.33	3.01	100
10#	37/0.43	3.02	0.33	3.68	100

Prod Model:	UL1332
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fluoroplastic Cable:	UL1332
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	RoHS
Insulation Material:	FEP
Brand:	Dewei

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
