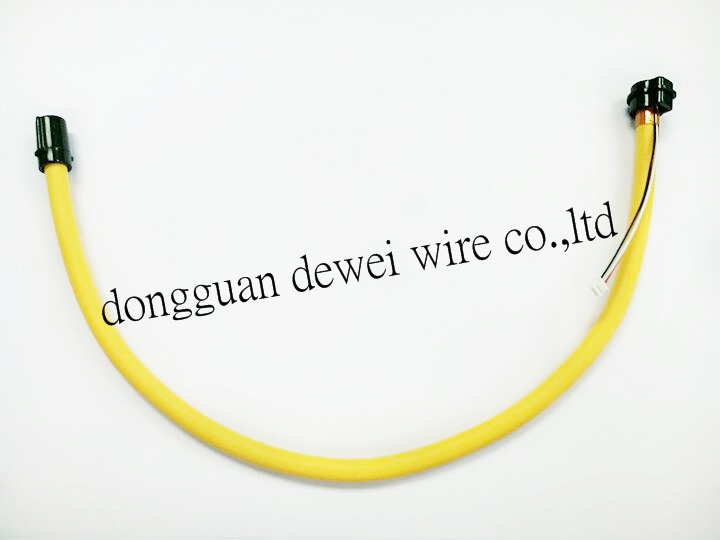

Insulated Sensor Cable With15 AWG

Insulated Sensor Cable With15 AWG
Price: US $ 10-80/Meter
Trade Terms: FOB,CIF,EXW
Min Order: 3000/Meter
Pay Type: L/C,T/T,Western Union,Paypal

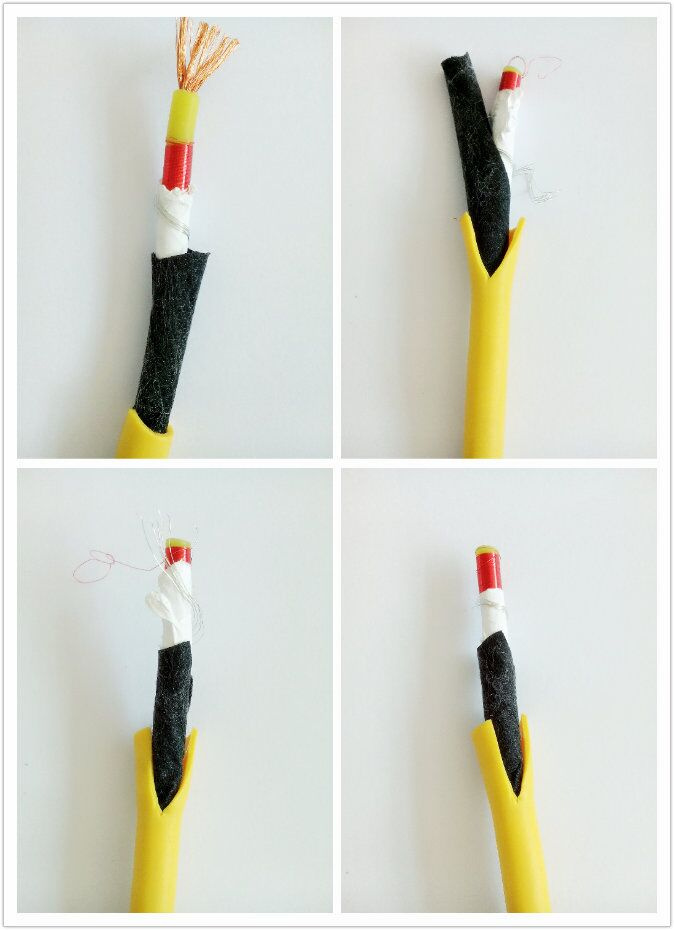

 Product name :sensor  cable  with 15 AWG
Spe.:196/0.1AS±0.005
Tape:PTFE
Shielding Tape: Semi-conductive nonwoven


CONDUCTORSTRUCTUREMM196/0.1AS±0.005
TWIST DISTANCEMM37
INSULATORAVERAGE THICKNESSMM0.9
DIAMETERMM3.85±0.05
MATERIAL silicone rubber
COLOR /
INDUCTANCE COILMATERIAL 0.1mmAS
STRUCTURE CLOCKWISE WINDING
TAPEMATERIAL PTFE
INDUCTANCE CONDUCTORSPE.MM7/0.1TS
STRUCTUREMMCounterclockwise winding(10mm/CIRCLE)
RESISTANCE OF CON.Ω/KM364
SHIELDING TAPEMATERIAL Semi-conductive nonwoven(20MM)
WINDING DIRECTION S
DUPLICATUON >=20%
JACKETAVERAGE THICKNESS 1.2
DIAMETER 7.40±0.2
MATERIAL TPE
COLOR YELLOW
ELECTRIC
PROPERTY
RATE TEMPERATUREºC/
RATE VOLTAGEV/
SPARK TESTKV4
RESISTANCE OF CON.Ω/KM37.50
WITHSTAND VOLTAGE NO BROKEN
RESISTANCE OF INS.ΜΩ.KM/
PHYSICAL PROPERTYTENSILE FORCEJACKETKG/MM20.56
INSULATORKG/MM20.35
ELONGATIONJACKET%150
INSULATOR%100
Prod Model: 15 AWG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulated Inductance Cable: 15 AWG
Type: Insulated
Conductor Type: Stranded
Application: Underground
Insulation Material: Silicone Rubber
Certification: VDE
Conductor Material: Varnished Cooper Wire
Sheath Material: Semi-Conductive Nonwoven
DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
