Free Sample 11mm Diameter Photoresistance Ldr Sensor for Photoelectric Control

Name: Free Sample 11mm Diameter Photoresistance Ldr Sensor for Photoelectric Control
Brand: all-electronics-online.com
SKU: 793523695
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 0.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

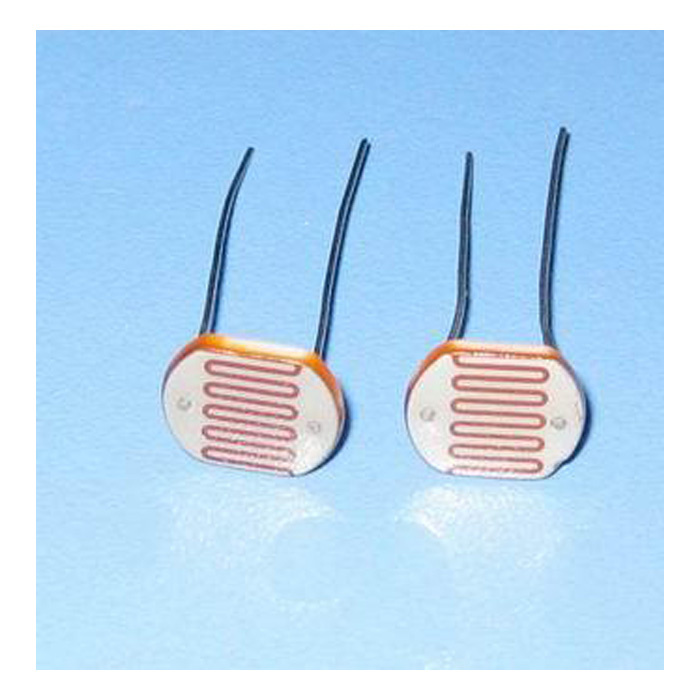

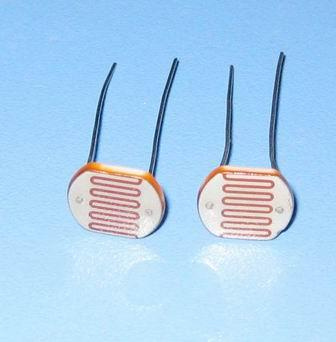

Free Sample 11mm Diameter Photoresistance Ldr Sensor for Photoelectric Control
Specification

Item	Photoresistor Sensor
Model	MJ11528
Diameter	11mm
Resistance	0.01Ohm-100K Ohm
Resistance Tolerance	-/+1%
Max.Voltage	250VDC
Max. Power Consurrption	200 MW
Operating Temperature	-30-+70 degree
Spec Trum Peak Value	560 nm
Thickless	1.8mm

Introduction
Photoresistor is a resistor which made of semi-conductor material, and the conductance changes with luminance variation. The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.

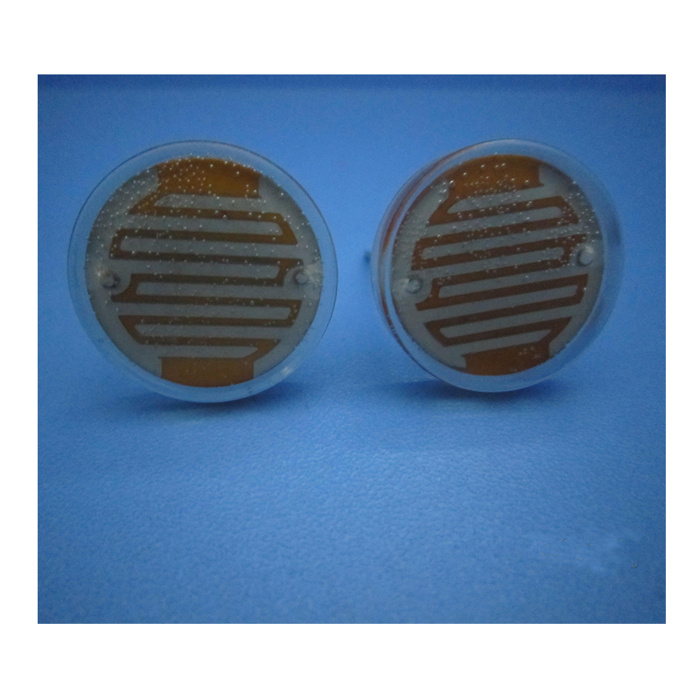

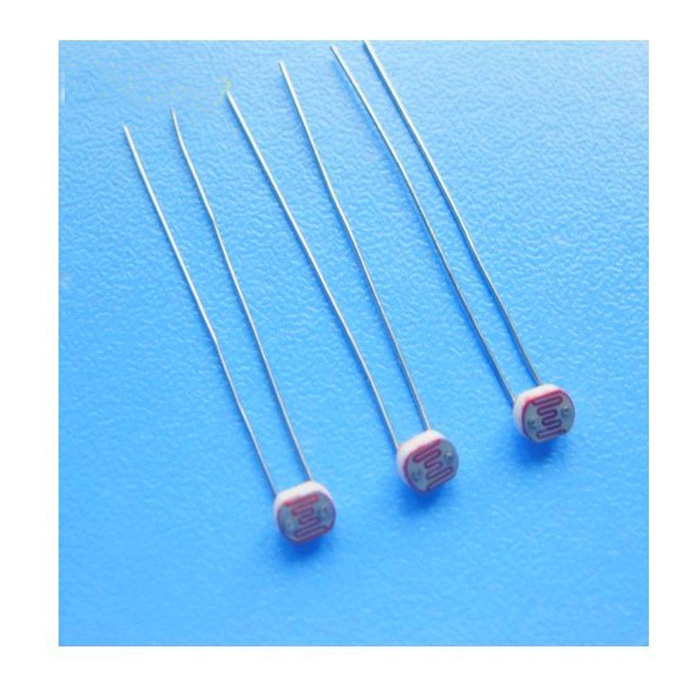

There are 3 series of product, the expory resin seal, the metal shell seal and the plexinglass seal with Ф3, Ф4, Ф5, Ф6.5, Ф7, Ф11, Ф12, Ф20, Ф25 and other 13 kinds of specifications of more than 100 types of photoresistor products.

Features
1.Coated with epoxy
2.Good Reliability
3.High Sensitivity
4.Small Volume
5.Fast Response
6.Good Spectrum Characteristic
7. Low cost
8. Eco-friendly

Applications
- Camera Automation
- Indoor Sunlight Control
- Industrial Control
- Optical Lamp
- Optical Control Music IC
- Optical Control Switch
- Photoelectric Control
- Annunciator
- Electronic toy
- Electronic Detector
-Switch
-Light control
-Light control lamp
-Photoelectric control
-Camera automatic photometry
-Annunciator

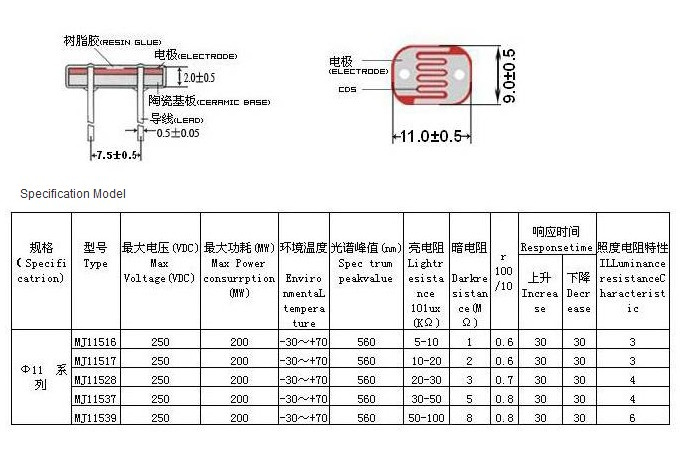

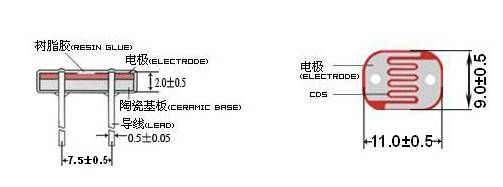

Technical parameter for 11mm photocell sensor seriers

Prod Model:	Mj11517
Item:	Photoresistor Sensor
Model:	Mj11528
Diameter:	11mm
Resistance Value:	0.01ohm-100k Ohm
Resistance Tolerance:	-/+1%
Max.Voltage:	250VDC
Max. Power Consurrption:	200 MW
Operating Temperature:	-30-+70 Degree
Spec Trum Peak Value:	560 Nm
Thickless:	1.8mm
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Photoresistor
Function For Resistance:	CDS Photoresistor
Application:	Optical Control Field
Brand:	Hw
